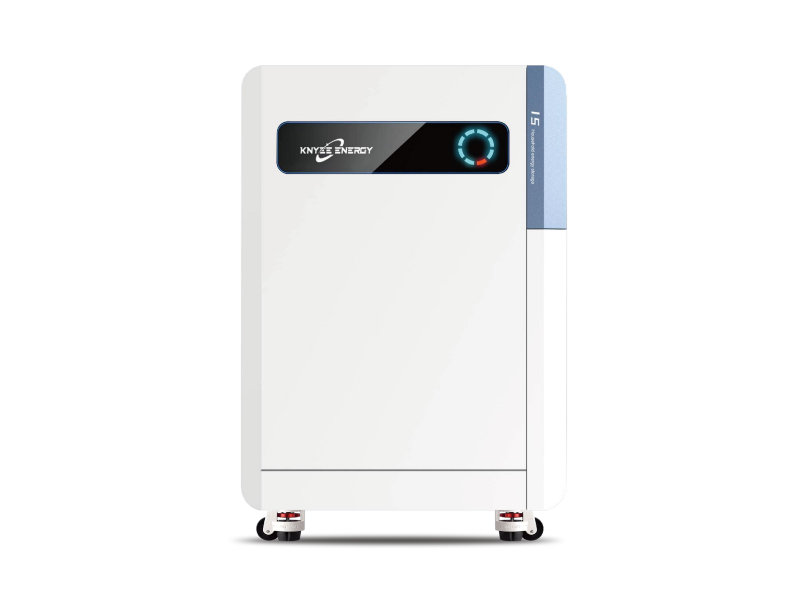

Knyee Energy 15.36kWh 51.2V LiFePO4 Battery – Reliable Energy Storage Solution
The Knyee Energy 15.36kWh 51.2V LiFePO4 Battery is a high-performance energy storage system designed for residential, commercial, and industrial solar applications. With a robust LiFePO4 (Lithium Iron Phosphate) chemistry, a long cycle life of 6,000 cycles at 80% Depth of Discharge (DoD), and an IP65-rated enclosure, this battery ensures high reliability, efficiency, and safety.
Key Features of the Knyee Energy 15.36kWh Battery
🔹 High Capacity & Performance
- Nominal Capacity: 300Ah
- Energy Storage: 15.36kWh
- Nominal Voltage: 51.2V DC
- Voltage Range: 44V – 58.4V
- Recommended Charging Current: 100A (Max: 200A)
- Recommended Discharging Current: 100A (Max: 200A)
🔹 Long-Lasting & Reliable
- Cycle Life: 6,000 cycles (@80% DoD), ensuring over 10+ years of operation
- Lithium Iron Phosphate (LiFePO4) Chemistry: Safe, efficient, and long-lasting
- Battery Management System (BMS): Advanced protection for extended battery life
🔹 Intelligent Communication & Compatibility
- Communication Protocols: CAN / RS485 / RS232 for seamless integration
- Parallel Expansion: Supports up to 15 batteries in parallel for higher capacity
🔹 Built-in Protection Mechanisms
- Overcharge & Over-discharge Protection
- Overcurrent & Short-circuit Protection
- Low-voltage & Temperature Protection
Installation & Design
🔹 Durable & Weatherproof
- Enclosure Rating: IP65 (Dustproof & Water-resistant)
- Shell Material: Heavy-duty sheet metal for enhanced durability
🔹 Compact & Space-Saving
- Installation Type: Floor-mounted
- Dimensions: 800mm × 580mm × 255mm
- Weight: 150kg (Gross) / 130kg (Net)
Applications of the Knyee Energy 15.36kWh Battery
✔ Residential Solar Energy Storage – Store excess solar power for later use
✔ Commercial Backup Power – Ensure uninterrupted operations during power outages
✔ Off-Grid & Hybrid Solar Systems – Achieve energy independence
✔ EV Charging Stations – Efficient power storage for electric vehicle infrastructure
What’s Included?
✅ 1 x Knyee Energy 15.36kWh 51.2V LiFePO4 Battery
✅ Pre-installed BMS for Safe & Efficient Operation
✅ User Manual & Installation Guide
📌 Technical Specifications
| Parameter |
Details |
| Model |
KNY 51300 |
| Nominal Voltage |
51.2V DC |
| Voltage Range |
44V – 58.4V |
| Nominal Capacity |
300Ah |
| Energy Storage |
15.36kWh |
| Cycle Life |
6,000 cycles (@80% DoD) |
| Recommended Charge Current |
100A (Max: 200A) |
| Recommended Discharge Current |
100A (Max: 200A) |
| Communication Protocols |
CAN / RS485 / RS232 |
| Parallel Capability |
Up to 15 Batteries |
| Installation Type |
Floor-mounted |
| Shell Material |
Sheet Metal |
| Enclosure Rating |
IP65 (Weatherproof) |
| Dimensions |
800 × 580 × 255 mm |
| Weight |
130kg (Net) / 150kg (Gross) |
| Operating Temperature (Charge) |
0 – 55°C |
| Operating Temperature (Discharge) |
-20 – 65°C |
| Storage Temperature |
-20 – 45°C |
| Certifications |
CE, UN38.3, Class 9 |
Why Choose the Knyee Energy 15.36kWh Battery?
✔ High-Efficiency LiFePO4 Technology – Safe, stable, and long-lasting
✔ Expandable for Larger Storage Needs – Parallel up to 15 units
✔ Advanced Safety Features – Built-in BMS for optimal battery health
✔ Compact & Easy to Install – Floor-mounted design for convenience
✔ Reliable & Trusted Brand – Backed by industry-leading technology
