LBSA 5.3kWh 51.2V 104Ah LiFePO₄ Low-Voltage Lithium Battery
The LBSA 5.3kWh lithium iron phosphate battery is a low-voltage energy storage solution developed for residential solar and backup power systems. Designed around a 51.2V DC architecture, this battery integrates high-quality LiFePO₄ prismatic cells with an advanced Battery Management System to deliver safe, stable, and long-term energy storage.
This battery is intended for use with low-voltage hybrid and inverter-charger systems and is suitable for installations where reliability, controlled discharge, and modular expansion are required.
System Role and Typical Applications
The LBSA 5.3kWh battery stores electrical energy generated from solar PV systems and supplies power during grid outages, load shedding, or peak usage periods. It is commonly used in residential backup systems, hybrid solar installations, and small off-grid applications where daily cycling is expected.
This is a low-voltage battery and must not be connected to high-voltage inverter platforms.
51.2V Low-Voltage Battery Architecture
Operating at a nominal voltage of 51.2V, the battery fits within the standard 48V-class lithium battery category. This voltage range provides a balance between safety, efficiency, and broad inverter compatibility while allowing sufficient current delivery for residential loads.
LiFePO₄ Cell Technology and Cycle Life
The battery uses aluminum-cased prismatic lithium iron phosphate cells rated at 3.2V 104Ah per cell. LiFePO₄ chemistry is widely regarded for its thermal stability, resistance to thermal runaway, and long service life.
The battery is rated to retain at least 80% of its original capacity after 4800 cycles at 0.5C, 25°C, and 100% depth of discharge, making it suitable for long-term daily use.
Advanced Battery Management System
An integrated smart BMS continuously monitors voltage, current, temperature, and state of charge at both pack and cell level. The BMS provides protection against over-charge, over-discharge, over-current, over-temperature, under-temperature, and short-circuit conditions.
Cell balancing is performed during charge and discharge to maintain uniform cell health and extend overall battery lifespan.
LBSA 5.3kWh Battery Parallel Expansion and Scalability
The LBSA battery supports parallel connection of up to 16 identical battery units. Parallel systems must be connected via a central busbar with equal-length cables to ensure balanced current sharing across all batteries.
This modular approach allows system capacity to grow over time as energy requirements increase.
Inverter Communication and Compatibility
The battery supports CAN communication to compatible inverters and RS485 communication between parallel battery packs. This enables accurate state-of-charge reporting, controlled charging and discharging, and coordinated protection behaviour when used with supported inverter platforms.

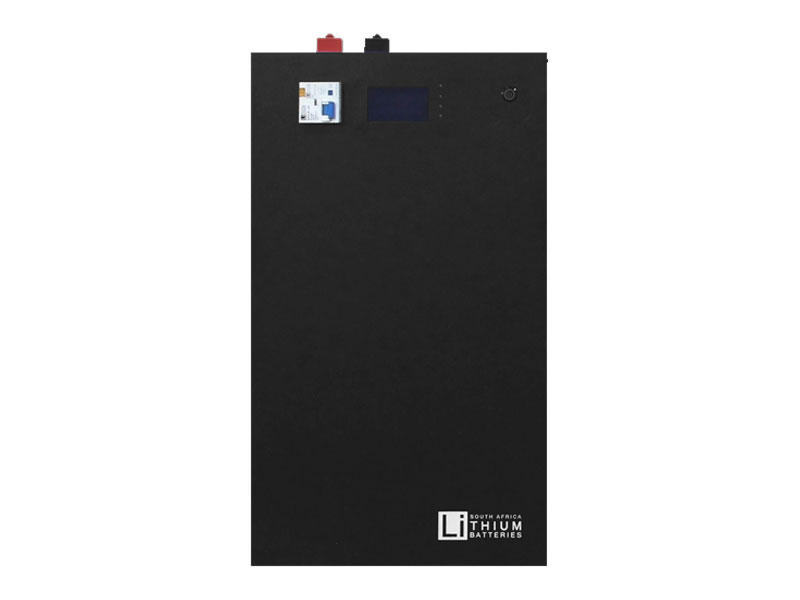

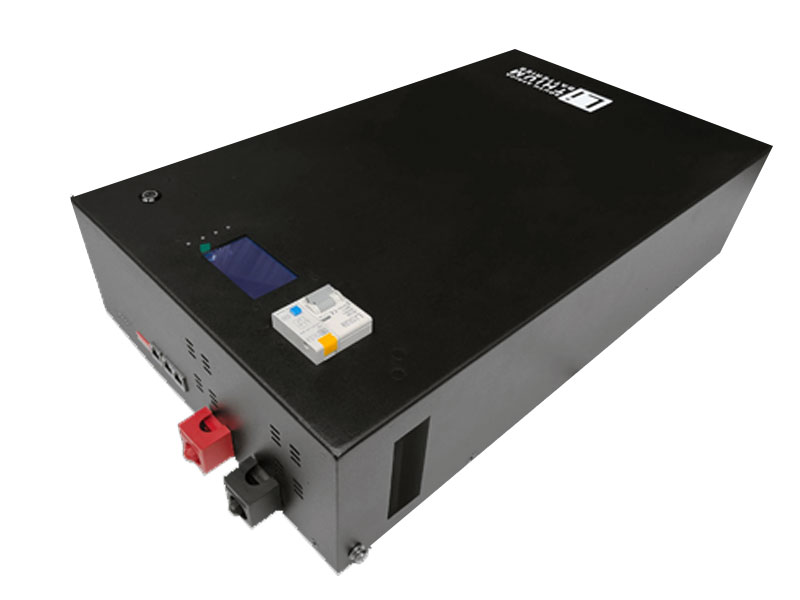

LBSA 5.3kWh Battery Physical Design and Installation

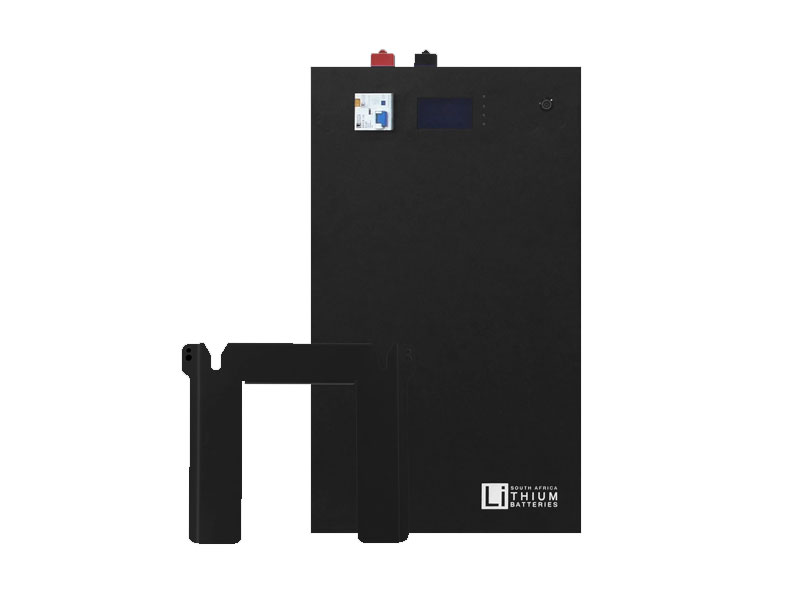

The battery is housed in a durable metal enclosure designed for wall-mounted installation. Integrated DC circuit protection includes a 125A DC circuit breaker with shunt trip functionality.
The enclosure includes LED indicators for operating status, state of charge, and alarms, providing clear visual feedback during operation.
Technical Specifications – LBSA 5.3kWh Battery
Battery Identity
- Brand: LBSA (Lithium Batteries SA)
- Battery type: Low-voltage lithium battery
- Cell chemistry: LiFePO₄
LBSA 5.3kWh Battery Electrical Ratings
- Nominal energy: 5.3 kWh
- Nominal capacity: 104 Ah
- Nominal voltage: 51.2 V
- Charge voltage (bulk/absorption): 56.2 V
- Discharge cut-off voltage: 44 V
LBSA 5.3kWh Battery Charge and Discharge Performance
- Maximum discharge current: 100 A
- Recommended charge current: 50 A
LBSA 5.3kWh Battery Communication
- CAN communication to inverter
- RS485 communication between battery packs
LBSA 5.3kWh Battery Physical and Environmental
- Installation type: Wall-mounted
- Dimensions: 630 × 345 × 137 mm
- Weight: 42 kg
- Enclosure material: Metal
- Protection rating: IP20
- Operating temperature (charge): 0°C to 50°C
- Operating temperature (discharge): -20°C to 50°C
- Storage temperature: -20°C to 55°C
LBSA 5.3kWh Battery Lifecycle
- Cycle life: ≥4800 cycles at 0.5C, 25°C, 100% DoD
FAQ
Frequently Asked Questions About the LBSA 5.3kWh Lithium Battery
Is the LBSA 5.3kWh battery a low-voltage or high-voltage battery?
This is a low-voltage 51.2V lithium battery designed for 48V-class hybrid and inverter-charger systems.
Can multiple LBSA batteries be connected together?
Yes. Up to 16 identical LBSA batteries can be connected in parallel to increase storage capacity.
Is this battery suitable for daily cycling?
Yes. The LiFePO₄ cell chemistry and cycle rating make it suitable for daily charge and discharge operation.
Does the battery communicate with the inverter?
Yes. The battery supports CAN communication to compatible inverters and RS485 communication between battery packs.
What type of installations is this battery best suited for?
It is well suited for residential solar backup systems, hybrid solar installations, and small off-grid applications.
Who should install the LBSA lithium battery?
Installation must be carried out by a qualified electrical or solar professional familiar with lithium battery systems.
