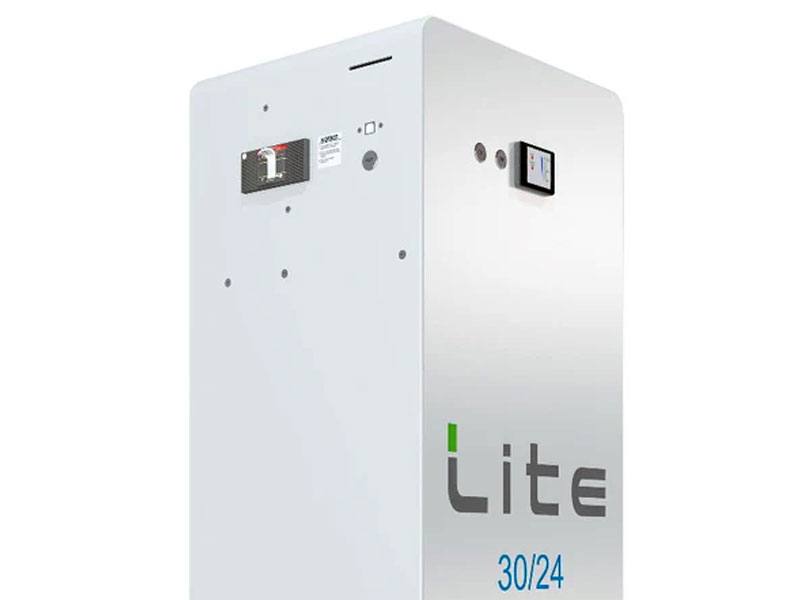

Freedom Won LiTE Home 30/24 52V LiFePO4 Battery
Overview of the Freedom Won LiTE Home 30/24 Battery
The Freedom Won LiTE Home 30/24 is a high-capacity 52V lithium iron phosphate (LiFePO4) battery designed for demanding residential and light commercial solar and backup power systems. With a total energy capacity of 30kWh and a robust discharge capability, this battery is engineered to support high household loads, daily cycling, and long-term reliability.
What the LiTE Home 30/24 Battery Is Designed to Do
This battery stores DC electrical energy and supplies it to compatible low-voltage inverter systems. It is designed to:
- Provide extended backup power during grid outages
- Support daily solar self-consumption
- Handle high sustained household and business loads
- Operate reliably in demanding energy storage applications
What This Battery Is Not
The LiTE Home 30/24 is a battery only and does not perform inverter or solar charging functions. Specifically:
- It is not an inverter and does not produce AC power
- It does not include MPPT solar charge controllers
- It cannot connect directly to photovoltaic panels
- It must not be used in high-voltage battery systems
System Type and Voltage Class
The LiTE Home 30/24 operates as a low-voltage battery system suitable for 48V-class inverters.
- Nominal voltage: 52V
- Minimum voltage: 47V
- Maximum voltage: 56V
- Designed for compatibility with low-voltage hybrid and off-grid inverters
Battery Chemistry and Cell Technology
This battery uses lithium iron phosphate (LiFePO4) chemistry with large-format prismatic cells.
- High thermal stability and inherent safety
- Stable voltage output under continuous load
- Long cycle life under daily operation
Battery Management System and Protection
An advanced battery management system is integrated to ensure safe and reliable operation.
- Over-current protection
- Cell under- and over-voltage protection
- Temperature monitoring and protection
- Weak cell detection
- Minimum state-of-charge control
- Shunt-trip circuit breaker with manual reset
Energy Capacity and Depth of Discharge
- Total energy capacity: 30kWh
- Usable energy at 80% DoD: 24kWh
- Usable energy at 90% DoD: 27kWh
Charge and Discharge Performance
Charge Specifications
- Maximum and continuous charge current: 600A
- Maximum and continuous charge power: 30kW
Discharge Specifications
- Maximum discharge current: 750A
- Continuous discharge current: 600A
- Maximum discharge power: 38kW
- Continuous discharge power: 30kW
Inverter Sizing and System Matching
- Maximum recommended total inverter power: 25kVA
- Suitable for large residential and light commercial inverter systems
- Final inverter selection should be based on actual load profiles
Communication and Monitoring
- Dual RJ45 CAN bus interfaces
- Supports inverter communication and parallel battery operation
- State of charge display and fault indicators on the battery front panel
Physical Specifications
- Dimensions (H × W × D): 1300 × 413 × 370 mm
- Weight: 254 kg
- Enclosure: Aluminium, painted white
- Installation environment: Indoor or fully protected under-cover
- Ingress protection rating: IP20
Environmental Operating Conditions
- Recommended ambient temperature: 0°C to 35°C
- Extreme operating temperature range: -20°C to +60°C
- Natural convection cooling
Standards and Certification
- UN38.3 transport certification
- IEC 62619 compliance
- Clean Energy Council of Australia approval
Typical Applications
- Large residential solar energy storage systems
- Hybrid and off-grid power systems
- Backup power for homes and small businesses
- Daily-cycling energy storage installations
FAQ
Frequently Asked Questions
What size inverter is suitable for the Freedom Won LiTE Home 30/24?
The battery supports inverter systems with a total continuous rated power of up to 25kVA. Final inverter sizing should always consider actual load demand and system design rather than inverter size alone.
How much usable energy does the LiTE Home 30/24 provide?
The battery provides 24kWh of usable energy at an 80% depth of discharge and up to 27kWh at a 90% depth of discharge.
Is this battery suitable for daily cycling?
Yes. The LiTE Home 30/24 is designed for daily charge and discharge operation and offers a long expected service life when operated within recommended depth-of-discharge limits.
Can multiple LiTE Home 30/24 batteries be connected in parallel?
Yes. Parallel operation is supported, provided all connected batteries are of the same model and correctly configured using CAN bus communication.
Which inverter brands are compatible with this battery?
The battery supports CAN-based communication and is compatible with most low-voltage inverter brands when configured with the correct communication protocol.
Does the battery include protection and safety features?
Yes. The integrated battery management system includes over-current protection, voltage protection, temperature monitoring, weak cell detection, and a shunt-trip circuit breaker.
Is professional installation required?
Yes. Installation must be carried out by a qualified electrician or installer in accordance with local electrical regulations and manufacturer guidelines.
