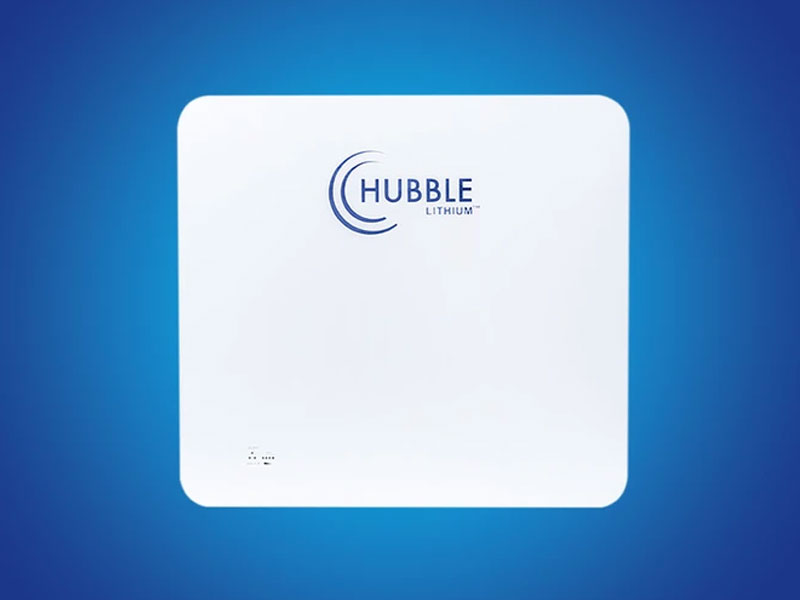

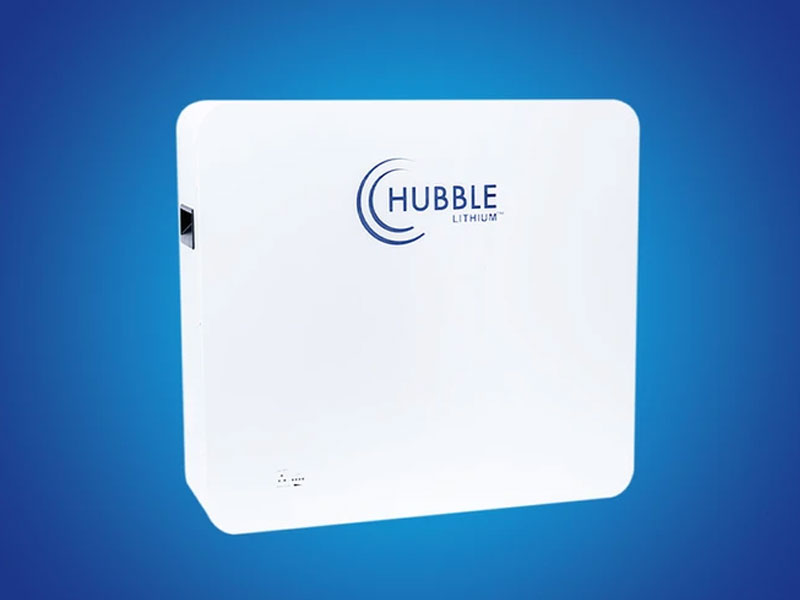

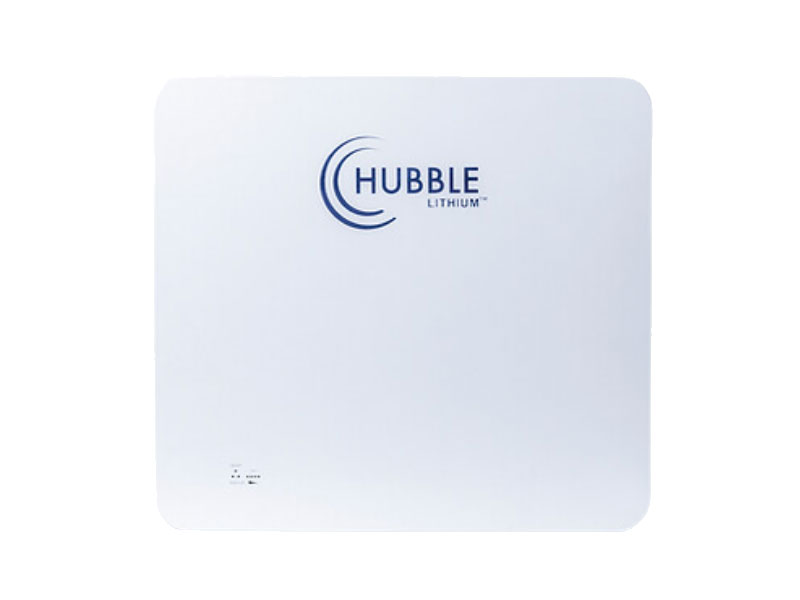

Hubble AM-10 10kWh 51.2V 200Ah LiFePO4 Low Voltage Battery
Overview of the Hubble AM-10 Battery
The Hubble AM-10 is a high-performance low-voltage lithium iron phosphate (LiFePO4) battery designed for residential and light commercial energy storage systems. With a nominal voltage of 51.2V and a rated capacity of 200Ah, the AM-10 delivers strong continuous power, high cycle capability, and reliable integration with modern hybrid and off-grid inverter systems.
What the Hubble AM-10 Battery Is Designed to Do
The Hubble AM-10 battery stores DC electrical energy and supplies it to a compatible low-voltage inverter. It is designed to:
- Provide backup power during grid outages
- Support daily cycling in solar self-consumption systems
- Operate in hybrid and off-grid solar installations
- Scale system capacity by connecting multiple batteries in parallel
What the Hubble AM-10 Battery Is Not
This battery is a storage device only and does not perform inverter functions. Specifically:
- It is not an inverter and cannot generate AC power
- It does not include MPPT charge controllers
- It does not connect directly to photovoltaic panels
- It must not be used in high-voltage battery systems
System Type and Voltage Class
The Hubble AM-10 is designed for 48V-class low-voltage battery systems.
- Nominal battery voltage: 51.2V
- Equalised charge voltage: 55.2V
- Low-voltage DC architecture compatible with hybrid and off-grid inverters
Battery Chemistry and Cell Design
The battery uses prismatic lithium iron phosphate (LiFePO4) cells selected for safety, thermal stability, and long service life.
- High resistance to thermal runaway
- Stable voltage under load
- Excellent cycle performance at high charge and discharge rates
Battery Management System and Protection
An advanced battery management system with current limiting is integrated into the Hubble AM-10. Protection and control features include:
- Over-charge and over-discharge protection
- Over-temperature protection
- Electronic circuit breaker
- Active current limiting
- Cell voltage protection and balancing
Charge and Discharge Performance
Charge Specifications
- Recommended charge current: 60A
- Maximum continuous charge current: 200A
- C-rate: 1.0C
Discharge Specifications
- Maximum continuous discharge current: 200A
- Depth of discharge: 100%
Scalability and Parallel Expansion
The Hubble AM-10 is designed for modular system expansion.
- Parallel connection of up to 8 battery packs
- Full communication maintained across all connected batteries
- Scalable energy storage while retaining a 51.2V system voltage
Communication and Inverter Integration
The battery supports direct communication with compatible inverters and monitoring systems.
- CAN bus communication
- Battery link ports for parallel systems
- Optional Hubble Cloudlink for remote monitoring
Technical Specifications – Hubble AM-10
- Battery chemistry: LiFePO4
- Rated energy capacity: 10kWh
- Rated capacity: 200Ah (5-hour rate)
- Nominal voltage: 51.2V
- Depth of discharge: 100%
- Design life: ±15 years
- Cycle life: Unlimited cycles within the Hubble Energy 10-year warranty (Ts & Cs apply)
Physical Specifications and Installation
The Hubble AM-10 features a robust steel enclosure suitable for wall-mounted or shelf/rack installation.
- Installation type: Wall-mounted or shelf/rack mounted
- Dimensions (W × D × H): 673 × 618 × 193 mm
- Weight: ±89 kg
- Enclosure material: White baked lacquer steel case
Environmental Operating Limits
- Charging temperature range: -10°C to 50°C
- Humidity range: 15% to 75%
- Storage temperature range: 10°C to 50°C
Certifications and Compliance
- Certification: CE
- Transport certification: UN38.3
Typical Applications for the Hubble AM-10 Battery
- Residential solar energy storage systems
- Hybrid and off-grid solar installations
- Backup power systems
- Scalable low-voltage battery banks
FAQ
Frequently Asked Questions
What type of inverter systems work best with the Hubble AM-10 battery?
The Hubble AM-10 is designed for low-voltage hybrid and off-grid inverter systems that support 48V LiFePO4 batteries. Inverter selection depends on expected continuous loads and system design rather than a fixed kW rating.
How much power can the Hubble AM-10 deliver?
With a maximum continuous discharge current of 200A and a 1C rating, the AM-10 can deliver strong continuous power suitable for medium to larger residential inverter systems.
Can multiple Hubble AM-10 batteries be connected together?
Yes. Up to eight AM-10 batteries can be connected in parallel with full communication, allowing system capacity and discharge capability to scale as energy needs grow.
Is the Hubble AM-10 suitable for daily cycling?
Yes. The battery is designed for daily charge and discharge operation and is covered by an unlimited cycle warranty within the Hubble Energy 10-year warranty terms.
Which inverter brands are commonly used with the Hubble AM-10?
The AM-10 supports CAN bus communication and is commonly integrated with low-voltage inverters that support LiFePO4 batteries, including brands such as Deye, Sunsynk, Luxpower, Solis, Victron, and others when correctly configured.
Is remote monitoring available for this battery?
Yes. Optional remote monitoring is available via the Hubble Cloudlink, allowing system status and performance to be viewed remotely.
Can the Hubble AM-10 be wall-mounted?
Yes. The battery is designed for wall-mounted installation and includes heavy-duty side handles for secure mounting.
