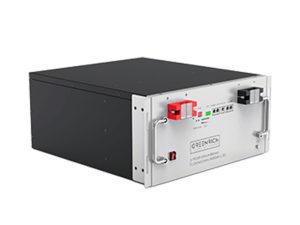

Greenrich UP6100 6.12kWh 51.2V LiFePO₄ 1.5C Lithium Battery
The Greenrich UP6100, also known as the AU9000 household energy battery, is a high-capacity, high-power low-voltage lithium battery designed for solar systems that must carry heavy loads reliably. Built using lithium iron phosphate (LiFePO₄) cell technology and a robust Battery Management System, the UP6100 is engineered to deliver sustained power output while maintaining long cycle life and system safety.
This battery is designed for residential and small commercial installations where higher instantaneous power is required without moving to a high-voltage battery platform.
System Role and Ideal Applications
The Greenrich UP6100 stores energy generated from solar PV systems and supplies power during load shedding, grid outages, or peak usage periods. Its high 1.5C discharge capability makes it especially suitable for homes and small businesses running multiple appliances simultaneously, including ovens, kettles, air conditioners, pumps, and compressors.
Typical applications include residential hybrid inverter systems, backup power installations, and scalable battery banks where high output power is required.
Greenrich 6.1kwh Battery 51.2V Low-Voltage Battery Architecture
Operating at a nominal voltage of 51.2V, the UP6100 fits into the standard low-voltage lithium battery category used by most residential hybrid and inverter-charger systems. This voltage class offers a strong balance between safety, efficiency, and wide inverter compatibility while still allowing high power delivery.
Greenrich 6.1kwh Battery LiFePO₄ Cell Technology and 1.5C High-Power Performance
The UP6100 uses LiFePO₄ cells known for thermal stability, chemical safety, and long service life. The battery supports a continuous discharge current of up to 200A, corresponding to a 1.5C discharge rate, and delivers a maximum continuous output power of 9000W.
This allows the battery to handle demanding loads more effectively than standard 1C batteries, particularly during peak consumption periods.
Greenrich 6.1kwh Battery Smart BMS and Electrical Protection
An integrated smart Battery Management System continuously monitors voltage, current, temperature, and state of charge. Protection functions include over-voltage and under-voltage protection, short-circuit protection, low and high temperature charge protection, low and high temperature discharge protection, charge and discharge over-current protection, and a dormancy function.
These protections ensure safe operation and long-term battery health under daily cycling conditions.
Greenrich 6.1kwh Battery Inverter Communication and Compatibility
The Greenrich UP6100 supports communication via CAN, RS485, and RS232, allowing direct integration with a wide range of compatible hybrid and inverter-charger platforms. Proper communication enables coordinated charge and discharge control, improving system efficiency and battery protection.
Greenrich 6.1kwh Battery Installation and Physical Design

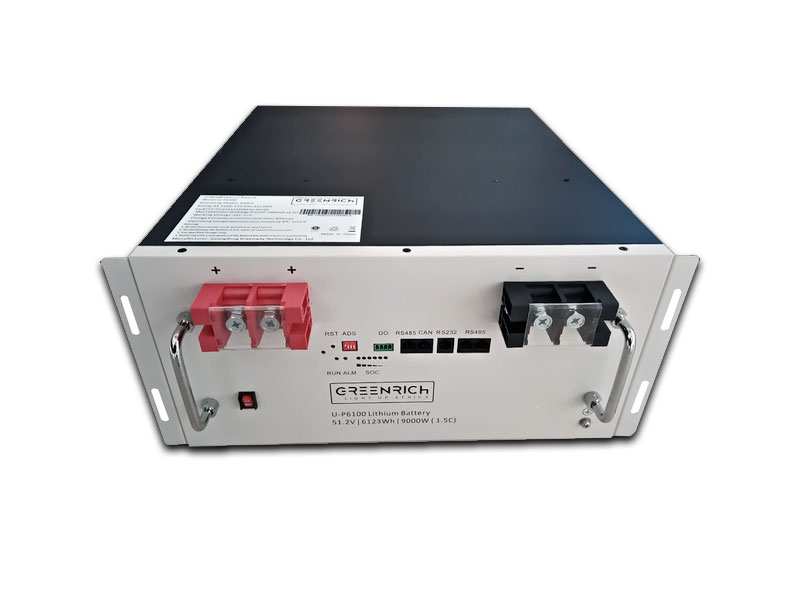

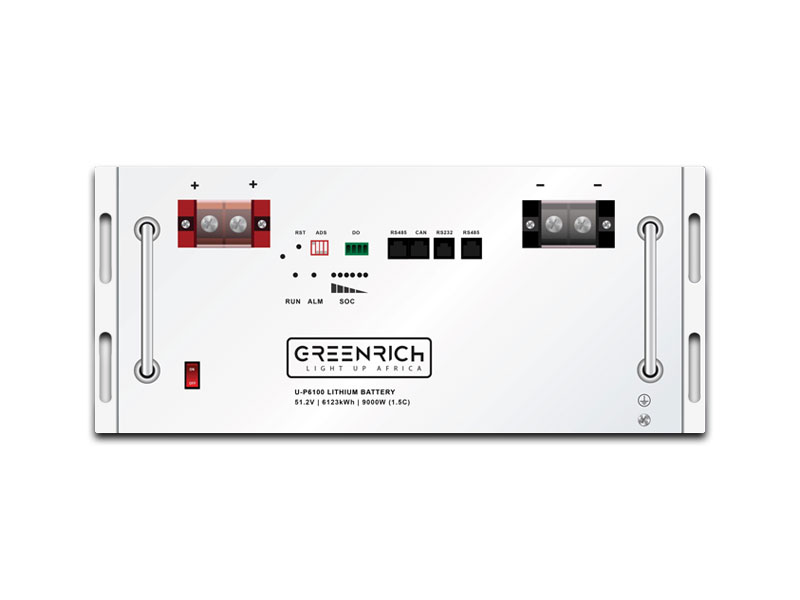

The battery is housed in a robust metal enclosure designed for indoor installation in dry, well-ventilated environments. Its rack-style form factor allows installation in battery cabinets or equipment rooms where floor or shelf mounting is preferred.
Technical Specifications – Greenrich UP6100 Battery
Greenrich 6.1kwh Battery Identity
- Brand: Greenrich
- Model: UP6100 (AU9000)
- Cell type: LiFePO₄
Greenrich 6.1kwh Battery Electrical Ratings
- Nominal energy: 6.12 kWh
- Nominal capacity: 119.6 Ah
- Nominal voltage: 51.2 V
- Operating voltage range: 52 – 54 V
Greenrich 6.1kwh Battery Charge and Discharge Performance
- Recommended charge current: 60 A (0.5C @ 25°C)
- Recommended discharge current: 60 A (0.5C @ 25°C)
- Maximum charge current: 80 A
- Maximum continuous discharge current: 200 A (1.5C)
- Peak discharge current: 350 A (100 ms)
- Maximum continuous output power: 9000 W
Greenrich 6.1kwh Battery Communication
- CAN communication
- RS485 communication
- RS232 communication
Greenrich 6.1kwh Battery Physical and Environmental
- Dimensions: 220.6 × 483 × 536 mm
- Weight: approximately 57 kg
- Enclosure material: Metal
- Humidity: 5% – 95% RH (non-condensing)
- Operating temperature (charge): 0°C to +50°C
- Operating temperature (discharge): -20°C to +55°C
- Storage temperature: -20°C to +45°C (3 months), -20°C to +25°C (1 year)
Greenrich 6.1kwh Battery Warranty and Lifecycle
- Cycle life: Greater than 6000 cycles
- Manufacturer warranty: 10 years
FAQ
Frequently Asked Questions About the Greenrich UP6100 Battery
What makes the Greenrich UP6100 different from standard 5kWh batteries?
The UP6100 offers higher capacity and a 1.5C discharge rate, allowing it to deliver up to 9000W of continuous power, making it suitable for heavier loads.
Is the UP6100 a low-voltage or high-voltage battery?
The UP6100 is a low-voltage 51.2V lithium battery designed for 48V-class hybrid inverter systems.
Can the UP6100 handle high surge loads?
Yes. With a peak discharge current of 350A, the battery can support short-duration surge loads such as motor or compressor startup.
Is the battery suitable for daily cycling?
Yes. The LiFePO₄ chemistry and 6000+ cycle rating make it suitable for daily charge and discharge operation.
Which inverters are compatible with the Greenrich UP6100?
The battery supports CAN, RS485, and RS232 communication and is compatible with many mainstream hybrid and inverter-charger platforms.
Who should install the Greenrich UP6100 battery?
Installation should be carried out by a qualified solar or electrical professional experienced with lithium battery systems.
