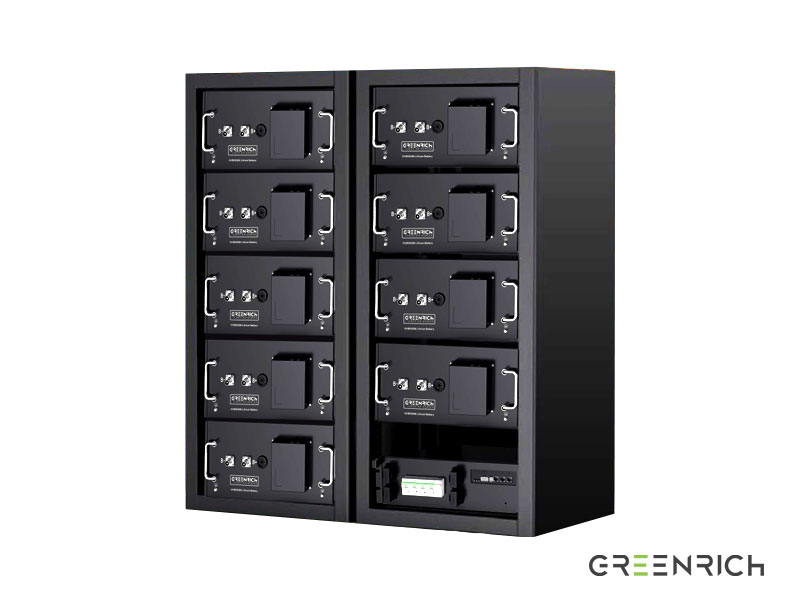

Greenrich Commercial & Industrial High Voltage Battery System

Greenrich High Rate Performance:

• Dynamic Cylindrical Cells:
  The Greenrich battery system charges at 1C and discharges at 1.5C, ensuring high efficiency and dynamic performance.

Greenrich Modular and Reliable Design:

• 6000 Cycle Life:
  Provides up to 6000 charge cycles with a 10-year warranty for long-term reliability with Greenrich.
• No Single Point of Failure:
  The Greenrich system is designed with modularity in mind, eliminating the need to oversize the storage system.
• Modular Design:
  Greenrich batteries can be easily scaled to meet your storage requirements without over-provisioning.

Greenrich Safety:

• Lithium Iron Phosphate (LFP):
  Greenrich ensures safety and durability, with no risk of fire even under extreme conditions, passing the nail penetration test.
• Triple Protection:
  The Greenrich system is equipped with relays, breakers, and fuses for enhanced safety.
• Stackable Batteries:
  Greenrich batteries are easily expandable, allowing them to be stacked in series to support various voltage requirements.

Greenrich Intelligence:

• High-Accuracy Detection:
  Greenrich features dual detection loops for precise current measurement and control.
• Wide System Compatibility:
  Greenrich supports systems with voltages ranging from 150V to 900V DC, making it versatile for various commercial and industrial setups.
• Master and Slave Design:
  Greenrich ensures stable operation and safer maintenance through remote monitoring and upgrades via WiFi or 4G.
• Seamless Integration:
  Greenrich is compatible with most PCS/PWG systems on the market, including Sinexcel, Megarevo, Goodwe, and more.
• Cloud Monitoring:
  Real-time data communication and cloud monitoring are available for enhanced system control through Greenrich technology.

Greenrich HVCB03 – High Voltage Controller Box

• Working Voltage Range: 150V to 900Vdc
• Nominal Current: 100A (supports up to 125A continuous with Greenrich)
• Working Temperature Range: -40°C to 85°C
• Communication Interface: 2 ways CAN and 3 ways RJ45 for Greenrich system integration

Greenrich Battery Pack

• Cell Type: LiFePO4 (Lithium Iron Phosphate), cylindrical cells used by Greenrich
• Configuration: 16521P for Greenrich battery system
• Nominal Voltage: 51.2V
• Nominal Capacity: 96,600mAh / 4946Wh
• Working Voltage Range: 46.4V – 56.8V with Greenrich technology
• Operating Temperature Range: 0°C to 55°C (charge), -20°C to 60°C (discharge)

Greenrich Battery Array Unit (BAU)

• Working Voltage: 24Vdc for Greenrich operations
• Operating Temperature Range: -30°C to 75°C
• Operating Humidity: 5% to 95% for Greenrich environments
• Communication: 5 ways Modbus, 3 ways TCP/IP, 2 ways CAN 2.0B for Greenrich connections
• Dry Contact: 9 ways (5 output, 4 input) integrated by Greenrich
• Temperature Detection Range: -40°C to 120°C, ±1°C accuracy for Greenrich system monitoring
• Power Consumption: <3.8W (operating), <0.03mW (sleep)
• Storage: 64G TF card (standard) with Greenrich configuration
• Dimensions: 438mm x 536mm x 221mm
• Weight: Approx. 50kg for the Greenrich BAU unit

This advanced Greenrich high-voltage battery system is designed for flexibility, safety, and long-term reliability, making it the perfect solution for industrial and commercial energy storage needs.
