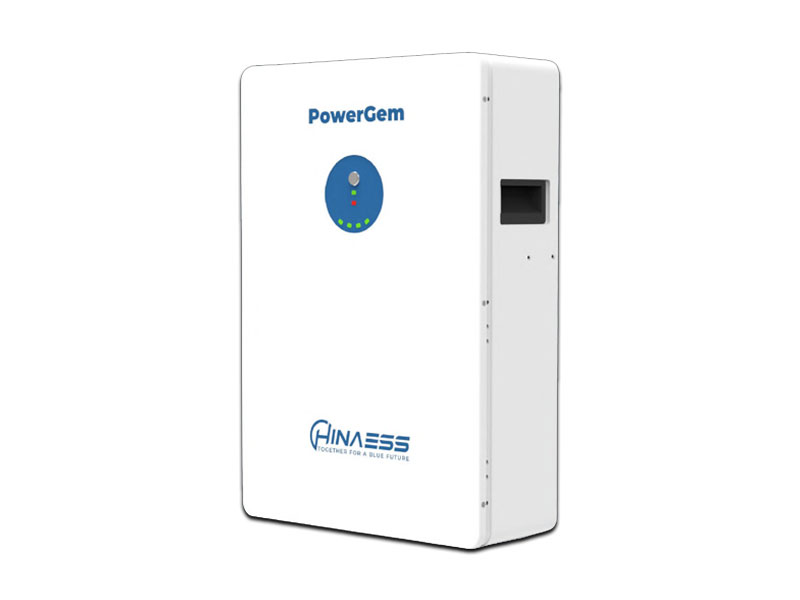

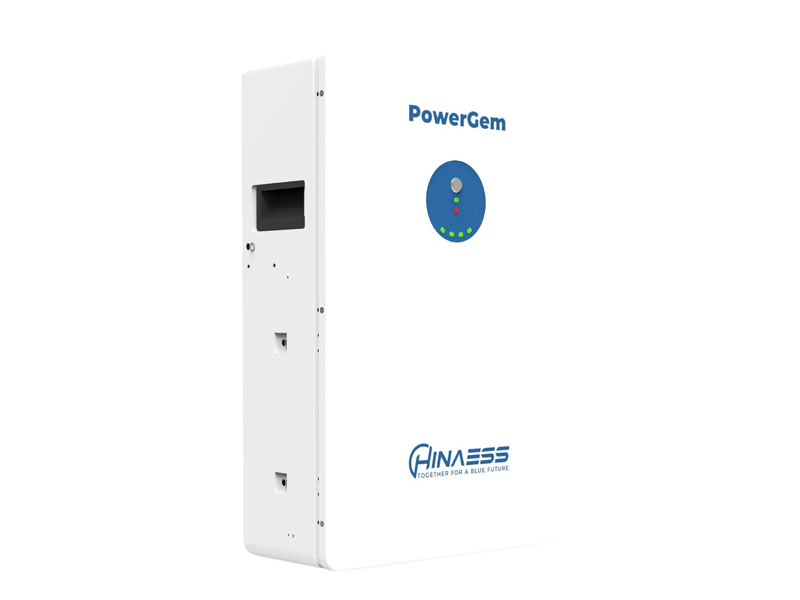

HinaESS PowerGem 5.12kWh 51.2V LiFePO₄ Lithium Battery

The HinaESS PowerGem is a 5.12kWh low-voltage lithium energy storage battery engineered for residential and light commercial solar systems where reliability, daily cycling capability, and long service life are essential. Built using lithium iron phosphate (LiFePO₄) cell technology, the PowerGem delivers stable energy output, strong safety characteristics, and consistent performance under demanding operating conditions.

This battery is designed for 48V-class inverter systems and integrates directly with a wide range of hybrid and inverter-charger platforms through CAN and RS485 communication.

System Role and Ideal Applications

The PowerGem battery is designed to store energy generated from solar PV systems and supply power during load shedding, grid outages, or peak demand periods. Typical applications include residential backup systems, hybrid inverter installations, small businesses, and modular energy storage systems requiring dependable daily cycling.

It is not a high-voltage battery and is not intended for large commercial or industrial high-voltage inverter platforms.

51.2V Low-Voltage Battery Architecture

Operating at a rated voltage of 51.2V, the PowerGem fits within the standard low-voltage lithium battery category used by most residential hybrid inverters. This voltage class offers a practical balance between safety, efficiency, and wide inverter compatibility while still allowing meaningful power output when correctly sized.

LiFePO₄ Cell Chemistry and 1C Performance

The PowerGem uses LiFePO₄ cells known for their thermal stability, resistance to thermal runaway, and long cycle life. The battery supports a true 1C continuous charge and discharge rate, allowing up to 100A of continuous current for both charging and discharging.

Peak discharge capability reaches 105A for 15 seconds and 120A for 0.5 seconds, allowing the battery to assist with short-duration surge loads.

Smart BMS, Active Balancing and Protection

An integrated smart Battery Management System continuously monitors voltage, current, temperature, and state of charge. The system includes active balancing to maintain cell consistency and reduce long-term degradation.

Protection features include over-charge, over-discharge, over-current, over-voltage, over-temperature, short-circuit protection, reverse connection protection, and low-state-of-charge protection.

Parallel Expansion and System Scalability

The PowerGem supports parallel connection of up to 32 battery modules without requiring additional external devices. Individual batteries can drop offline or rejoin the system without interrupting overall system operation, allowing flexible expansion and high system resilience.

Inverter Compatibility and Communication

Communication is supported via CAN and RS485, enabling direct integration with a wide range of inverter brands including Victron, Luxpower, Deye, Voltronic, SMA, Goodwe, Growatt, Sofar, Sol-Ark, SRNE, and Must.

Correct inverter configuration is required to ensure coordinated charging, discharging, and battery protection.

Installation Options and Physical Design

The PowerGem features an elegant enclosure suitable for floor-standing or wall-mounted installation. With an IP20 protection rating, it is intended for indoor installation in dry, ventilated environments such as utility rooms, battery cabinets, or dedicated equipment spaces.

Technical Specifications – HinaESS PowerGem Battery

Battery Identity

• Brand: HinaESS
• Model: PowerGem
• Cell type: LiFePO₄

Electrical Ratings

• Nominal energy: 5.12 kWh
• Rated capacity: 100 Ah
• Rated voltage: 51.2 V
• Charge voltage: 56.5 V
• Maximum charge/discharge current: 100 A
• Peak discharge current: 105 A (15 s), 120 A (0.5 s)

Scalability and Communication

• Parallel capability: Up to 32 units
• Communication: CAN, RS485

Physical and Environmental

• Protection rating: IP20
• Dimensions: 640 × 428 × 166 mm
• Weight: 58 kg
• Operating temperature: -20°C to +55°C
• Storage temperature: -10°C to +35°C
• Humidity: 5% – 85% RH (non-condensing)

Warranty and Certification

• Warranty: 10 years or 6000 cycles
• Certification: CE, UN38.3, IEC62619
