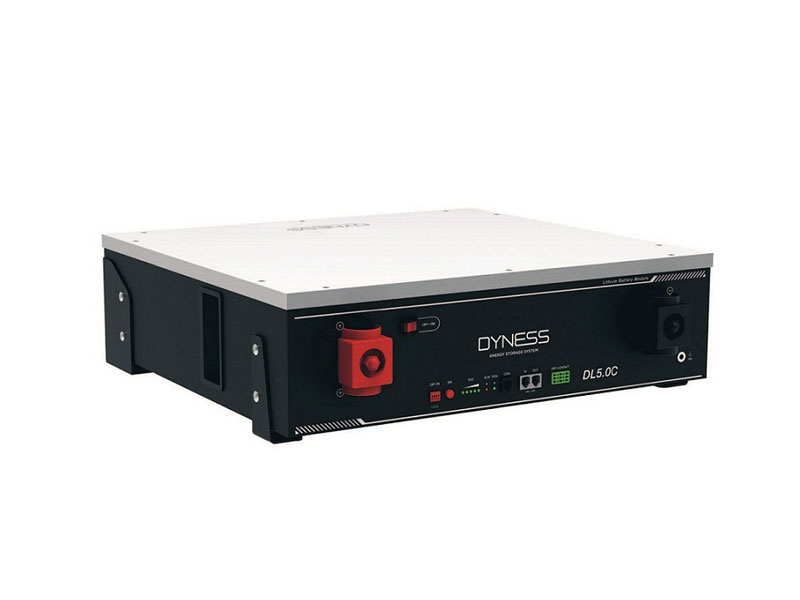

Dyness DL5.0C 5.12kWh 51.2V LiFePO₄ Lithium Battery
The Dyness DL5.0C is a low-voltage lithium energy storage battery engineered for residential and light commercial solar systems where reliability, modular expansion, and cost-effective performance are essential. Built using lithium iron phosphate (LiFePO₄) cell technology, the DL5.0C delivers stable power output, long cycle life, and strong safety characteristics under regular daily operation.
This battery is designed for 48V-class hybrid and inverter-charger platforms and integrates directly with a wide range of inverter brands through CAN, RS485, and RS232 communication.
System Role and Typical Applications
The Dyness DL5.0C stores energy generated by solar PV systems and supplies power during load shedding, grid outages, or peak demand periods. It is commonly used in residential backup systems, hybrid solar installations, and small commercial environments where dependable daily cycling is required.
It is not a high-voltage battery and is not intended for high-voltage inverter platforms.
51.2V Low-Voltage Battery Architecture
Operating at a nominal voltage of 51.2V, the DL5.0C fits within the standard low-voltage lithium battery category used by most residential hybrid inverters. This voltage class allows efficient power delivery while maintaining installer-friendly safety and broad inverter compatibility.
LiFePO₄ Cell Technology and 1C Performance
The DL5.0C uses LiFePO₄ cells known for thermal stability, long service life, and consistent voltage delivery. The battery supports a maximum continuous charge and discharge rate of 1C, allowing it to supply meaningful power for typical household and light commercial loads.
The recommended operating C-rate is 0.5C, which helps optimise long-term battery lifespan while still providing adequate power for everyday use.
Smart BMS and Protection Functions
An integrated Battery Management System continuously monitors voltage, current, temperature, and state of charge. Protection functions include over-charge, over-discharge, over-current, short-circuit protection, and temperature protection.
The BMS also supports cell-level monitoring and balancing to maintain consistent performance across the battery pack.
Parallel Expansion and Modular Scalability
The Dyness DL5.0C supports parallel connection of up to 50 battery units, allowing systems to scale from a single 5.12kWh battery to large modular energy storage installations. This makes it suitable for future expansion as energy demands increase.
Inverter Communication and Compatibility
Communication is supported via CAN, RS485, and RS232, enabling direct integration with a wide range of inverter brands including Victron, SMA, Deye, Goodwe, Growatt, Solis, Sungrow, Voltronic and others that support Dyness communication protocols.

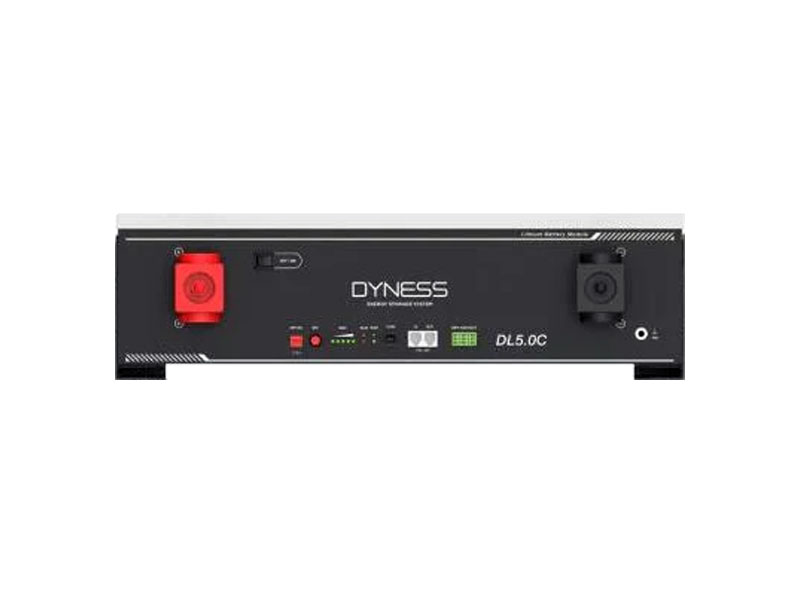

Installation Options and Physical Design
The DL5.0C supports wall-mounted, floor-standing, and stacked installation configurations, providing flexibility for different site requirements. With an IP20 protection rating, it is intended for indoor installation in dry, ventilated environments.
Technical Specifications – Dyness DL5.0C Battery
Battery Identity
- Brand: Dyness
- Model: DL5.0C
- Cell type: LiFePO₄
Electrical Ratings
- Nominal energy: 5.12 kWh
- Nominal capacity: 100 Ah
- Nominal voltage: 51.2 V
- Operating voltage range: 44.8 – 57.6 V
- Depth of discharge: 90%
Charge and Discharge Performance
- Recommended C-rate: 0.5C
- Recommended charge/discharge current: 50 A
- Maximum charge current: 75 A
- Maximum discharge current: 100 A
- Peak charge/discharge current: 110 A (15 s)
Communication
Physical and Environmental
- Dimensions: 558 × 545 × 150 mm
- Weight: 54 kg
- Protection rating: IP20
- Charging temperature range: 0°C to +55°C
- Discharging temperature range: -20°C to +55°C
Certification and Cycle Life
- Cycle life: ≥6000 cycles
- Certifications: UN38.3, CE-EMC, IEC62619, CEI 0-21
FAQ
Frequently Asked Questions About the Dyness DL5.0C Battery
What type of systems is the Dyness DL5.0C designed for?
The DL5.0C is designed for residential and light commercial solar energy storage systems using 48V-class hybrid or inverter-charger platforms.
How is the DL5.0C different from the DL5.0C Pro?
The DL5.0C Pro includes built-in WiFi monitoring and optional self-heating features, while the standard DL5.0C focuses on core battery performance and modular scalability.
Can multiple Dyness DL5.0C batteries be connected together?
Yes. Up to 50 batteries can be connected in parallel, allowing large modular energy storage systems.
Is the DL5.0C suitable for daily cycling?
Yes. The LiFePO₄ chemistry and ≥6000-cycle design make it suitable for daily charge and discharge operation.
Is this a high-voltage battery?
No. This is a low-voltage 51.2V lithium battery and is not compatible with high-voltage inverter systems.
Can the battery be installed indoors?
Yes. With an IP20 enclosure, it is designed for indoor installation in dry, ventilated environments.
Who should install the Dyness DL5.0C battery?
Installation should be performed by a qualified solar or electrical professional familiar with lithium battery systems and inverter communication setup.
