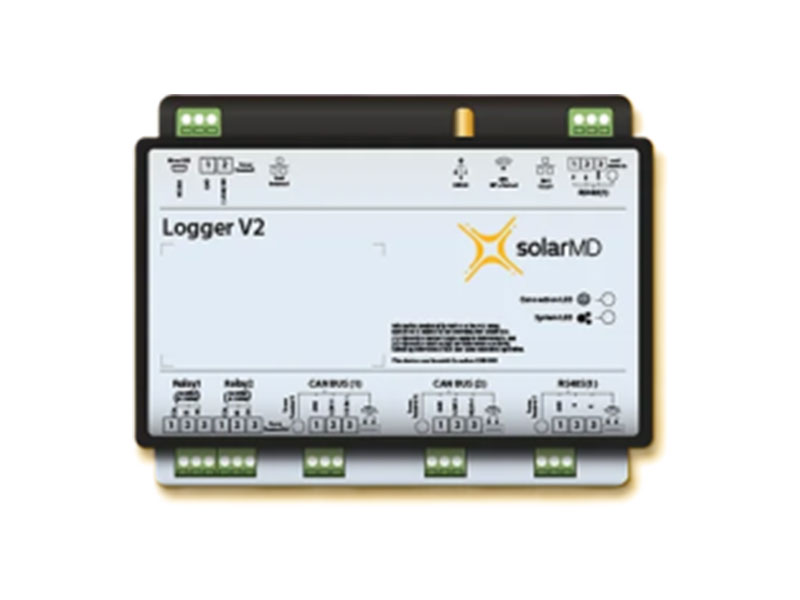

Solar MD Smart Logger V2

The Solar MD Smart Logger V2 is a comprehensive energy management controller built to monitor, manage, and optimise Solar MD energy storage systems. It acts as the communication gateway between batteries, inverters, meters, weather stations, and the mypower24 monitoring platform.

It supports automatic device discovery, secure data transfer, remote configuration, and real-time visibility into system performance. Ideal for residential, commercial, and utility-scale installations.

Key Features

Real-time monitoring and control
Seamless integration with Solar MD batteries and compatible inverters
Supports multiple interfaces: CANBUS, RS232, RS485, Ethernet, WiFi
Automatic device discovery
Remote configuration and management
Plug-and-play installation
Secure data transfer
Integrated programmable relays for load control
Enables advanced system logic through mypower24

Applications

Hybrid solar systems
Off-grid and grid-tied systems
Residential and commercial installations
Energy management and optimisation
Remote monitoring for installers and end-users

Technical Specifications

Serial Port Interface: RS232 / RS485 (2500V isolation)
CAN BUS: CANBUS 1 / CANBUS 2 (2500V isolation)
Relays: 2 × dry contact (3A / 250VAC, 3A / 30VDC)
Ethernet: ETH0 (Internet) / ETH1 (Local)
Wi-Fi Access Point: IEEE 802.11g, DHCP server enabled
Wi-Fi Client (Station): Connects to internet, DHCP enabled
DC Power Supply: 9VDC – 65VDC / 5V 2A (USB-C)
Dimensions (H × W × D): 140mm × 120.5mm × 34mm
Weight: 0.634kg
Mounting: Screws through flanges
Ambient Temperature: −40°C to 85°C
Environmental Protection: IP20
Standard Warranty: 12 months

Weight	0.63 kg
Dimensions	14 × 13 × 34 cm
Brand:	Solar MD
Model:	Logger V2
Device Type:	Energy Management & Monitoring Controller
Interfaces:	CANBUS, RS232, RS485, Ethernet, Wi-Fi
Power Supply:	9V–65V DC
Weight:	0.634kg
Mounting:	Wall-mount
Application:	Solar & Energy Management
