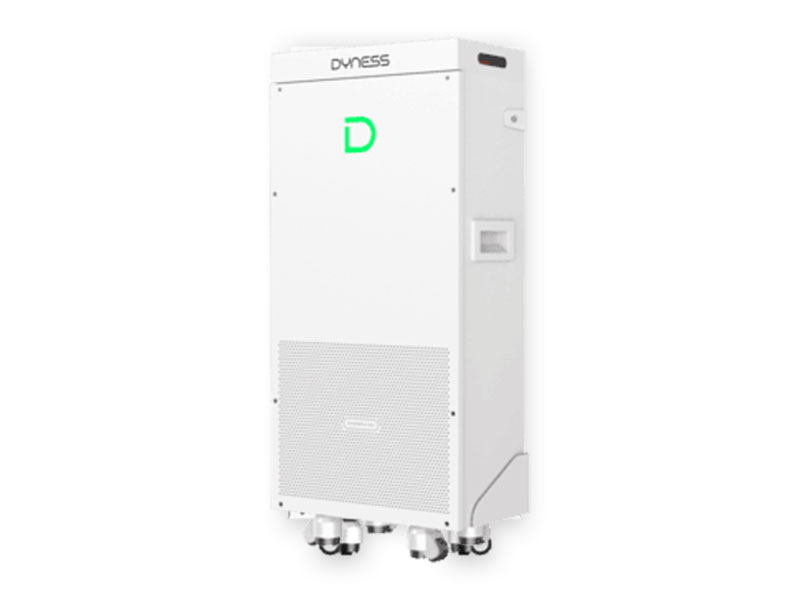

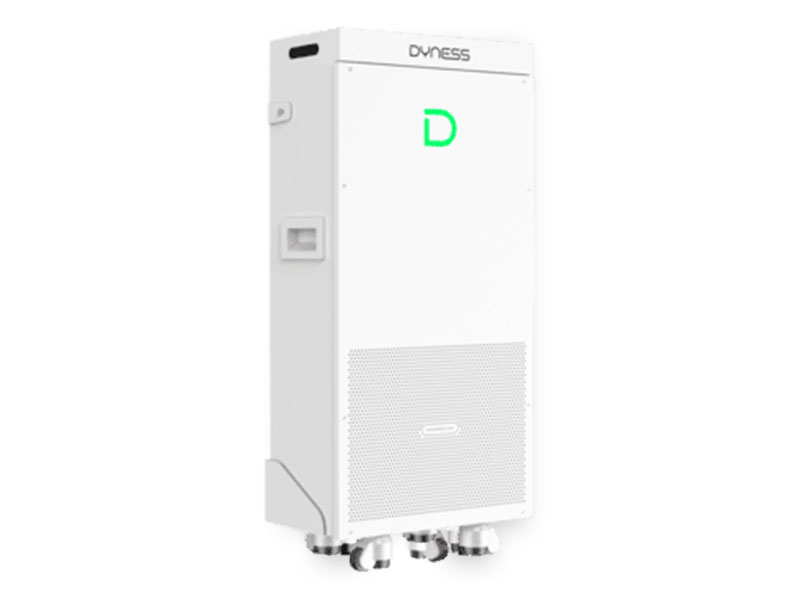

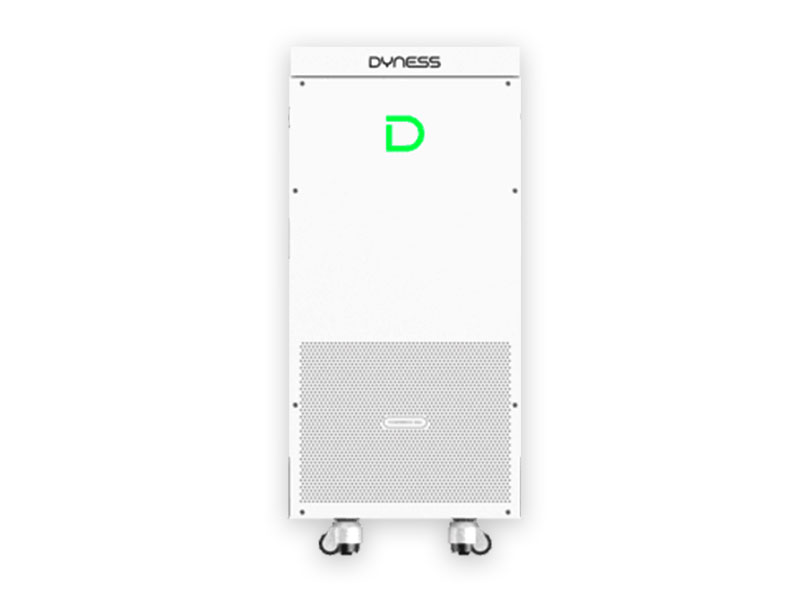

Dyness PowerBrick Plus 16.07kWh Lithium Battery Overview

The Dyness PowerBrick Plus 16.07kWh lithium battery is a high-capacity, low-voltage energy storage solution designed for residential, commercial, and backup power applications. Built with advanced LiFePO4 lithium iron phosphate technology, this battery delivers excellent safety, high cycle life, strong performance, and flexible installation options for modern solar systems.

With a nominal energy capacity of 16.07kWh and usable energy of approximately 15.27kWh, the Dyness PowerBrick Plus is designed for demanding applications requiring reliable backup power and long-term solar energy storage.

Why Choose the Dyness PowerBrick Plus Battery

The PowerBrick Plus is engineered for high-performance energy storage while maintaining flexibility, durability, and long-term reliability.

• Large 16.07kWh battery capacity for extended backup power
• LiFePO4 battery chemistry for improved safety and thermal stability
• IP65 rated for indoor and outdoor installation
• Expandable system supporting up to 50 batteries in parallel
• Advanced built-in fire protection system
• 8000+ cycle lifespan for long-term reliability

High-Capacity Residential and Commercial Energy Storage

The Dyness PowerBrick Plus is ideal for homes and businesses requiring larger battery storage capacity. It stores excess solar energy generated during the day and supplies backup power during outages or peak electricity usage periods.

Its high power output capability allows it to support demanding household and commercial loads while maintaining stable and efficient operation.

Performance Advantages

• Usable energy capacity of approximately 15.27kWh
• Supports high discharge rates for demanding loads
• Maximum charge and discharge power up to 10.24kW
• Peak discharge current of 300A

Advanced LiFePO4 Battery Technology

The PowerBrick Plus uses high-quality 314Ah LiFePO4 cells designed for improved safety, thermal stability, and long-term performance. Lithium iron phosphate chemistry is widely recognised as one of the safest battery technologies available for solar energy storage systems.

Benefits of LiFePO4 Technology

• Improved thermal and chemical stability
• Long lifespan with minimal degradation
• Enhanced safety compared to conventional lithium batteries
• Stable voltage output for sensitive equipment

Built-In Fire Protection System

The Dyness PowerBrick Plus includes an intelligent, built-in aerosol fire extinguishing system designed to improve system safety and protection.

• Integrated fire detection and extinguishing capability
• Enhanced protection for residential installations
• Additional peace of mind for indoor and outdoor installations

Flexible Installation Options

The battery is designed for both wall-mounted and floor-mounted installations, allowing flexible system design depending on site requirements. Integrated wheels make movement and positioning easier during installation.

• Wall-mounted installation supported
• Floor-mounted installation supported
• Integrated wheels for easier movement
• Compact vertical design for space-saving installations

IP65 Outdoor Rated Design

With an IP65 protection rating, the Dyness PowerBrick Plus is suitable for both indoor and outdoor environments when installed correctly.

• Protection against dust and water ingress
• Designed for demanding environmental conditions
• Suitable for residential and commercial outdoor installations

Scalable Energy Storage Solution

The modular design allows multiple batteries to be connected in parallel, making the PowerBrick Plus suitable for both small and large energy storage systems.

• Supports up to 50 batteries in parallel
• Scalable up to approximately 803kWh total capacity
• Suitable for future system expansion

Smart Monitoring and Communication

The battery supports advanced communication protocols and monitoring features for seamless inverter integration and system management.

• CAN and RS485 communication support
• WiFi and APP monitoring functionality
• Compatible with leading inverter brands

Compatible Inverters

The Dyness PowerBrick Plus battery is compatible with a wide range of hybrid and off-grid inverters, including:

• Sunsynk
• Deye
• Victron
• Solis
• Goodwe
• Growatt
• SMA

Technical Specifications

• Battery Type: LiFePO4
• Nominal Energy: 16.07kWh
• Usable Energy: 15.27kWh
• Nominal Capacity: 314Ah
• Nominal Voltage: 51.2V
• Operating Voltage Range: 44.8V – 57.6V
• Recommended Charge/Discharge Current: 140A
• Maximum Charge Current: 200A
• Maximum Discharge Current: 200A
• Peak Discharge Current: 300A
• Maximum Charge Power: 10.24kW
• Maximum Discharge Power: 10.24kW
• Depth of Discharge: 95%
• Protection Rating: IP65
• Cycle Life: 8000+ cycles
• Dimensions: 435 x 235 x 850 mm
• Weight: 119 kg
• Warranty: 10 Years

Applications

The Dyness PowerBrick Plus 16.07kWh battery is suitable for:

• Residential solar systems
• Commercial backup power systems
• Hybrid inverter systems
• Off-grid solar installations
• Large energy storage systems

Professional Installation Required

This battery must be installed by a qualified electrician or solar installer. Proper installation ensures system safety, optimal performance, and compliance with local electrical regulations.
