SDEC 80 kVA 3-Phase Silent Diesel Generator incl. ATS

The SDEC 80 kVA three-phase silent diesel generator (GKSD-88) provides dependable backup power for businesses, estates, and larger homes with three-phase supply. The set arrives in a sound-attenuated, weather-resistant canopy and includes an automatic transfer switch (ATS) for seamless start/stop on mains failure. Its robust 4-cylinder diesel engine and brushless AVR alternator deliver stable voltage for sensitive loads, while the digital controller keeps operation simple.

Features & Benefits

• 88 kVA standby / 80 kVA prime, 3-phase (400/230 V), 50 Hz, 1500 rpm

• Sound-attenuated canopy with lockable side doors and service window

• Automatic changeover (ATS) included for hassle-free switching

• Brushless alternator with AVR for stable, low-THD output

• Engine protections: high temperature, low oil pressure, under/over-voltage, under/over-frequency

• Digital controller with Auto/Manual/Test; clear alarms and shutdowns

• Heavy-duty base-frame with integral fuel tank, anti-vibration mounts

• Maintenance-free starting battery and charger included

• Warranty: 12 months / 1000 hours (earlier of)

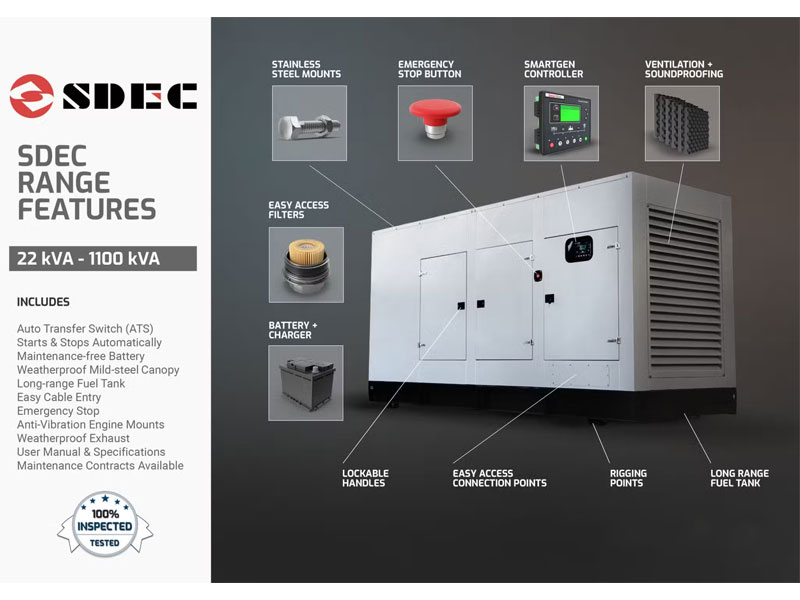

Canopy

• Weather-resistant, powder-coated panels with sound-reducing lining

• Thermally insulated exhaust, external emergency stop

• Designed for easy access, lifting and maintenance

Chassis

• Heavy-duty steel base frame with anti-vibration pads

• Integral base-tank with dial-type fuel gauge

• Forklift/lifting points for safe handling

Control System

• Auto Mains Failure (AMF) panel with Smartgen-class controller

• Start/stop selector: STOP/RESET – MANUAL – AUTO – TEST – START

• Metering (LCD): mains volts (L-L/L-N), generator amps (L1/L2/L3), frequency, power factor, engine hours, battery volts, oil pressure, RPM, temperature

• Automatic shutdowns: under/over-speed, fail to start/stop, high temp, low oil, charge fail, under/over generator volts/frequency, under/over mains volts, emergency stop

Technical Summary

• Prime/Standby: 80 kVA / 88 kVA • Phase: Three

• Dimensions (L × W × H): 2450 × 1100 × 1750 mm

• Dry Weight: 1380 kg

• Note: Ratings are at sea level with PF 0.8; derating may apply for altitude or reactive loads.

Delivery & Installation

Enerlux supplies, delivers, installs and issues CoC in Gauteng. Nationwide courier delivery available. Lead times depend on stock and logistics scheduling.

Attributes

Core

• Brand: SDEC

• Product Type: Three-Phase Silent Diesel Generator with ATS

• Color: White/Grey Canopy

• Dimensions: 2450 × 1100 × 1750 mm

• Weight: 1380 kg

Performance & Electrical

• Standby Rating (ESP): 88 kVA

• Prime Rating (PRP): 80 kVA

• Phase: Three-Phase (3P, 4-wire)

• Voltage: 400/230 V

• Frequency: 50 Hz

• Speed: 1500 rpm

• Power Factor: 0.8

• Alternator: Brushless with AVR

• Voltage Regulation: ±1% (typical)

Engine & Fuel

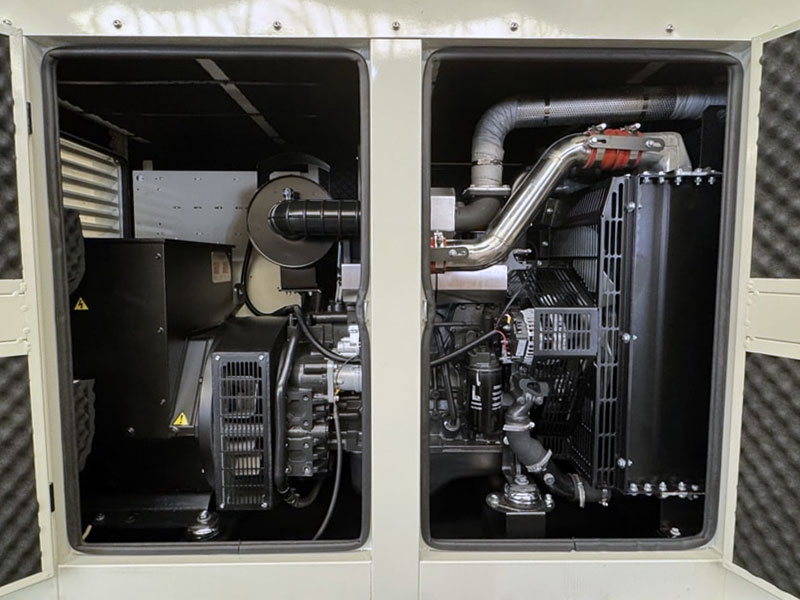

• Engine: 4-cylinder, turbocharged diesel (water-cooled)

• Cooling: Water-cooled radiator/fan

• Fuel Type: Diesel

• Fuel Tank: Integral base-frame tank (long-range)

Control & Protection

• Controller: Digital AMF controller (Smartgen class)

• ATS Included: Yes (three-pole, electrically & mechanically interlocked)

• Protections: Low oil pressure, high temperature, under/over-voltage & frequency, under/over-speed, charge fail, emergency stop

Noise & Enclosure

• Canopy: Silent, weather-resistant; sound-lined; lockable doors; window

• Base Frame: Heavy-duty steel, anti-vibration mounts; lifting points

Compliance & Logistics

• Warranty: 12 months / 1000 hours (earlier of)

• SKU / MPN: GKSD-88
