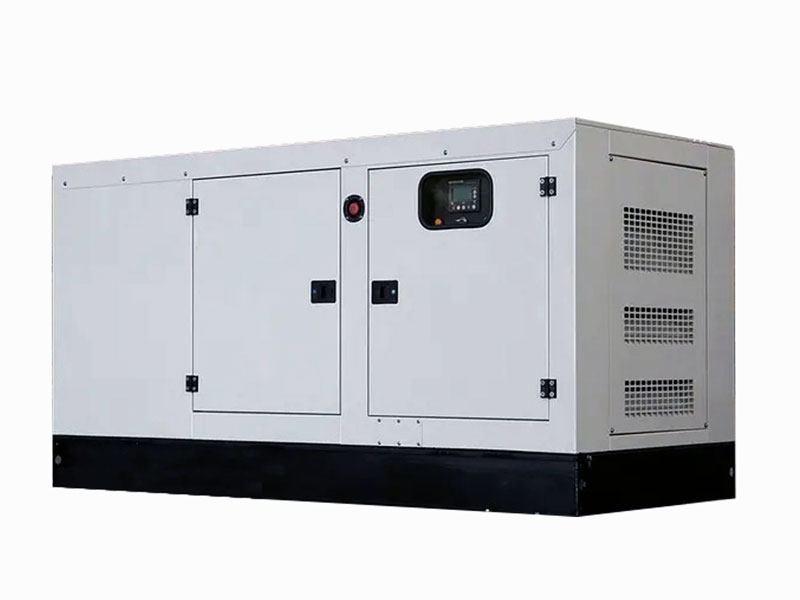

SDEC 60 kVA 3-Phase Silent Diesel Generator incl. ATS

The SDEC 60 kVA three-phase silent diesel generator (model GKSD-68) is designed for commercial, industrial and larger residential installations requiring reliable three-phase backup power. Housed in a robust, quiet canopy and including an ATS, this set is ready to automatically respond to mains failure, supplying clean, stable output with minimal operator interaction.

Key Features

• 66 kVA standby / 60 kVA prime, three-phase (400/230 V), 50 Hz, 1500 rpm

• Sound-attenuated weather-resistant canopy with lockable service doors

• Fully automatic transfer switch (ATS) included — automatic changeover on power failure

• Brushless alternator with AVR for stable voltage output at variable loads

• Engine protections: high temperature, low oil pressure, under/over voltage/frequency

• Maintenance-free battery and charger included for reliable start-up

• Base-frame tank and heavy-duty chassis designed for long runtimes and stable operation

• Supplied, installed and certified by Enerlux (CoC in Gauteng)

What’s in the Box

• Generator set (engine + alternator + canopy)

• Control panel with ATS module

• Maintenance-free battery and charger

• User documentation

Delivery & Installation

Enerlux supplies, delivers, installs and issues a Certificate of Compliance (CoC) in Gauteng. Nationwide courier delivery is available; lead times vary by stock and logistics.

Important Notes

• The ratings provided are at sea level with power factor 0.8. For installations at altitude or with heavy reactive loads, derating may apply.

• A site inspection is recommended to confirm distribution requirements, starting currents and correct sizing for three-phase loads.

Attributes

Core

• Brand: SDEC

• Product Type: Three-Phase Silent Diesel Generator with ATS

• Color: White/Grey Canopy

• Dimensions: 2400 × 1050 × 1750 mm

• Weight: 1208 kg

Performance & Electrical

• Standby Rating (ESP): 66 kVA

• Prime Rating (PRP): 60 kVA

• Phase: Three-Phase (3P, 4-wire)

• Voltage: 400/230 V

• Frequency: 50 Hz

• Speed: 1500 rpm

• Power Factor: 0.8

• Alternator Brand/Model: StromerPower (or equivalent)

• Voltage Regulation: ±1%

• Protection Class (Alternator): IP23

• Insulation Class: H

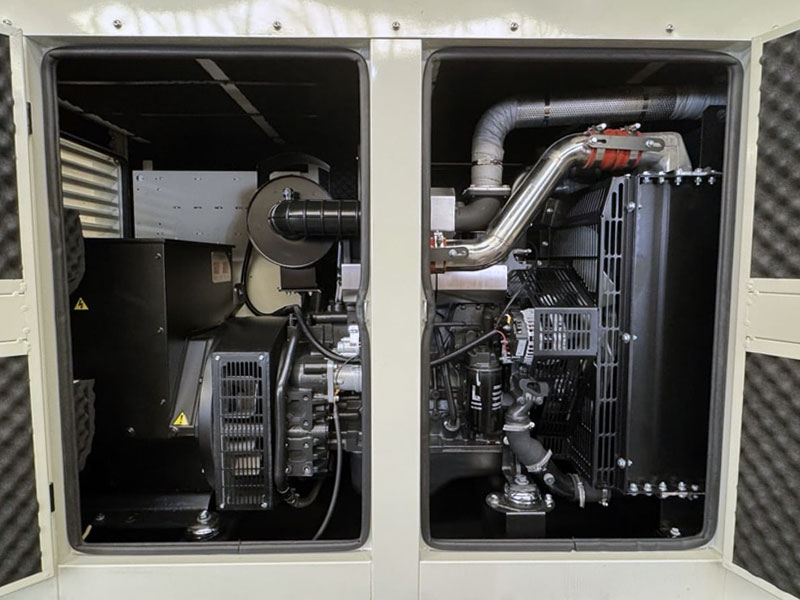

Engine & Fuel

• Engine Brand/Model: SDEC 4ZTAA4.1-G22 (or similar heavy-duty 4-cyl)

• Cylinders / Displacement: 4 cyl / approx.4.1 L

• Aspiration: Turbocharged

• Cooling: Water-cooled radiator/fan

• Fuel Type: Diesel

• Fuel Tank Capacity: 180 L (integral base frame tank)

• Warranty: 12 months / 1000 hours (earlier of)

Control & Protection

• Controller: Smartgen HGM6120N (or equivalent)

• ATS Included: Yes (four-pole, electrically & mechanically interlocked)

• Protections: Low oil pressure, high engine temperature, under/over-voltage, under/over-frequency, under/over-speed, charge fail, emergency stop

Noise & Enclosure

• Canopy: Silent, weather-resistant; lockable doors; service access

• Base Frame: Heavy-duty fabricated steel with anti-vibration mounts; integral fuel tank; forklift and lifting points

Compliance & Logistics

• SKU / MPN: GKSD-68
