Keep operations online through outages and voltage dips with the SDEC 300 kVA 3-Phase Silent Diesel Generator (GKSD-330). Built on a heavy-duty baseframe with an integrated 900 L fuel tank, this set pairs a robust SDEC 6-cyl 11.8 L turbo-intercooled engine with a StromerPower alternator and AVR (SX440) for tight voltage control under dynamic loads.
The Smartgen HGM6120N controller delivers full AMF/ATS automation, intuitive LCD metering and comprehensive protection. A weather-resistant, acoustically lined canopy reduces noise and allows secure, easy access for maintenance. Ideal for retail centres, hospitality, medical facilities, offices, workshops, farms and industrial plants needing reliable three-phase backup or prime power.

Key Features

• Prime 300 kVA / Standby 330 kVA, 230/400 V, 50 Hz, 1500 rpm

• ATS included for automatic mains–generator changeover (four-pole, interlocked)

• Smartgen HGM6120N: auto start/stop, LCD metering, full alarms & shutdowns

• StromerPower alternator (brushless, Class-H, AVR SX440, ±1% regulation, PF 0.8, IP23)

• SDEC 6ETAA11.8-G21 6-cyl, 11.8 L, turbocharged & intercooled, electronic governor (≈280 kW @1500 rpm)

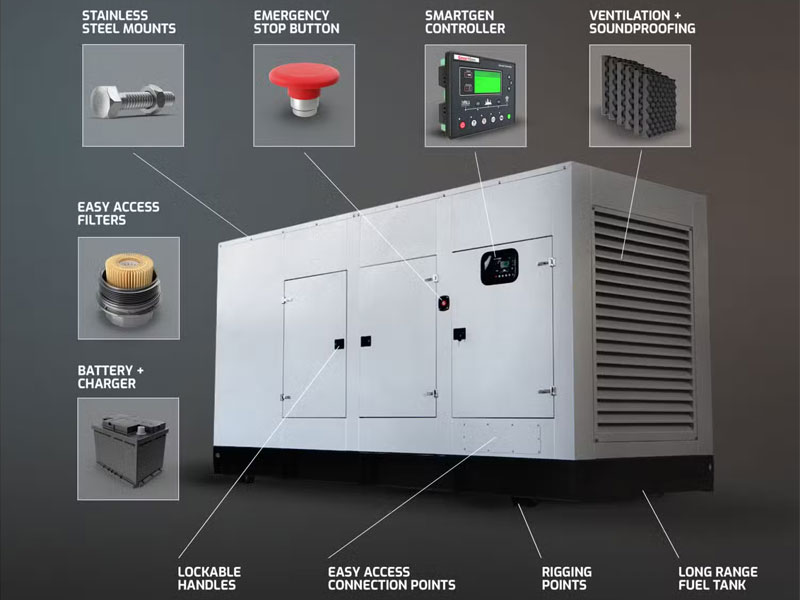

• Silent, weather-resistant canopy with lockable doors & external emergency stop

• Heavy-duty baseframe with 900 L integrated fuel tank & anti-vibration mounts

• Maintenance-free battery & static charger included; easy cable entry; dial fuel gauge

Technical Specifications

General

• Brand / Model: SDEC GKSD-330

• SKU: GKSD-330

• Phase / Connection: 3-phase, 4-wire

• Voltage: 230/400 V

• Frequency: 50 Hz

• Power factor: 0.8

• Prime power (PRP): 300 kVA

• Standby power (ESP): 330 kVA

• Speed: 1500 rpm

Dimensions & Weight

• L × W × H: 3700 × 1350 × 2580 mm

• Dry weight: 3681 kg

• Enclosure: Silent, weather-resistant canopy (sound-attenuated)

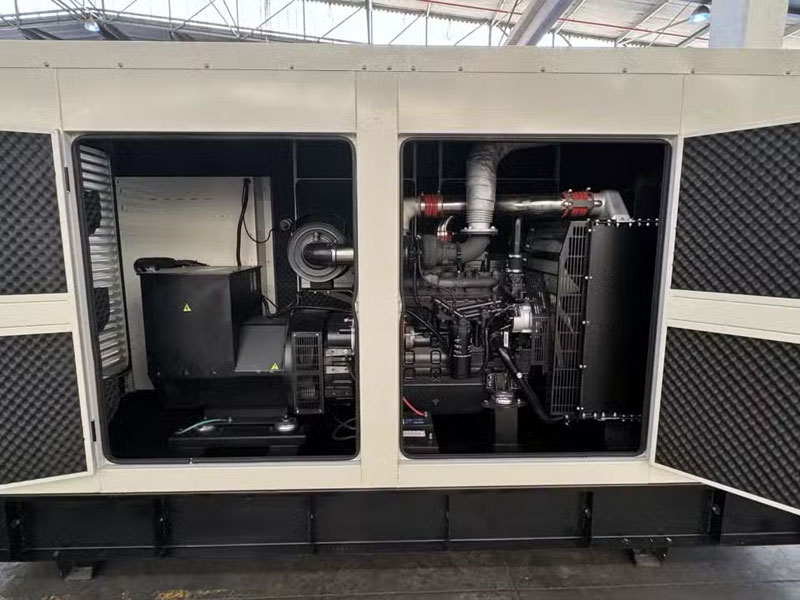

Engine (SDEC 6ETAA11.8-G21)

• Cylinders / Displacement: 6-cyl / 11.8 L

• Bore × Stroke: 128 × 153 mm

• Aspirations: Turbocharged & intercooled

• Cycle / Injection: 4-stroke / Direct injection

• Compression ratio: 17.0:1

• Governor: Electronic

• Rated engine power @1500 rpm: 280 kW

• Oil type / Capacity: 15W-40 / 36 L

• Cooling: Water-cooled radiator & fan

• Starter / Battery: 24 V DC starter with charge alternator; maintenance-free battery

• Fuel system: In-line fuel injection pump

• Coolant capacity: 51 L

Fuel & Consumption

• Tank capacity: 900 L (integrated)

• Fuel consumption (indicative):

  • @100% load: 75.0 L/h

  • @75% load: 56.3 L/h

  • @50% load: 38.1 L/h

  • @25% load: 15.8 L/h

Alternator (StromerPower)

• Type: Brushless, self-exciting, self-regulating

• Insulation: Class-H

• Protection: IP23 (screen-protected, drip-proof)

• Voltage regulation: ±1% with AVR SX440

• Stator / Rotor: 2/3 pitch stator; single-bearing rotor

Control & Protection

• Controller: Smartgen HGM6120N (AMF/ATS)

• Metering: Mains volts (L-L/L-N), gen amps (L1/L2/L3), frequency, cos φ, hours run, battery V, oil pressure, rpm, coolant temp

• Alarms / Shutdowns: Under/over-speed, fail to start/stop, high temp, low oil pressure, under/over volts & frequency, charge fail, emergency stop

Chassis / Canopy

• Heavy-duty steel baseframe with anti-vibration pads

• Integrated fuel tank with dial-type gauge

• Lockable access doors; panel window; easy cable entry

• Thermally insulated exhaust system; exterior emergency stop

• Designed for easy lifting/moving and straightforward maintenance

Note: Ratings at sea level; derating applies for altitude, temperature and site conditions.

What’s Included

• Complete generator set (engine, alternator, baseframe)

• Silent weather-resistant canopy

• ATS (four-pole, electrically & mechanically interlocked)

• Smartgen HGM6120N controller

• Integrated 900 L fuel tank

• Maintenance-free battery & static charger

• Standard exhaust silencer

• User/operation guide & basic handover pack

Optional Extras (on request)

• External bulk fuel tank & day-tank kits

• Extended warranty & service plans

• Remote monitoring & telemetry module

• Distribution board & cabling packages

• Delivery, placement, commissioning & training

Installation & CoC (Gauteng)

Enerlux can supply, deliver, install, commission and issue a CoC in Gauteng. Site specifics (slab, ventilation, cable lengths, earthing and changeover integration) will be confirmed during a pre-installation check. Lead times depend on stock, transport and site readiness.

FAQs

Q1: Does it start automatically during an outage?
Yes. The supplied ATS and HGM6120N controller manage automatic start/stop and safe transfer.

Q2: How long will it run on one tank?
At 75% load, the 900 L tank and typical consumption of ≈56.3 L/h give an indicative runtime of ~16 hours. Actual runtime varies with load and environment.

Q3: Is the output stable for sensitive equipment?
Yes. The AVR (SX440) maintains tight voltage regulation (±1%), suitable for most commercial loads. Additional conditioning (UPS/filters) can be added if needed.

Q4: Do you service and support this model?
Yes. Enerlux offers service plans, spares and call-outs. Standard maintenance covers oil, fuel and air-filter replacements per schedule.
