SDEC 250 kVA 3-Phase Silent Diesel Generator (GKSD-265) with ATS

Keep operations running during outages and unstable grid conditions with the SDEC 250 kVA 3-Phase Silent Diesel Generator (GKSD-265). Built on a heavy-duty baseframe with an integrated 500 L fuel tank, this set pairs a robust SDEC 6-cyl turbo-intercooled engine with a StromerPower alternator and AVR (SX460) for tight voltage control under dynamic loads.
The Smartgen HGM6120N controller delivers full AMF/ATS automation, intuitive LCD metering and comprehensive protection. A weather-resistant, acoustically lined canopy ensures quieter operation and secure access. Ideal for retail centres, hospitality, medical suites, offices, workshops, farms and light-industrial facilities needing reliable three-phase power.

Key Features

• Prime 250 kVA / Standby 265 kVA, 230/400 V, 50 Hz, 1500 rpm

• ATS included for automatic mains–generator changeover (four-pole, interlocked)

• Smartgen HGM6120N: auto start/stop, LCD metering, full alarms & shutdowns

• StromerPower alternator (brushless, Class-H, AVR SX460, ±1% regulation, PF 0.8, IP23)

• SDEC 6DTAA8.9-G23 6-cyl, 8.8 L, turbocharged & intercooled, electronic governor

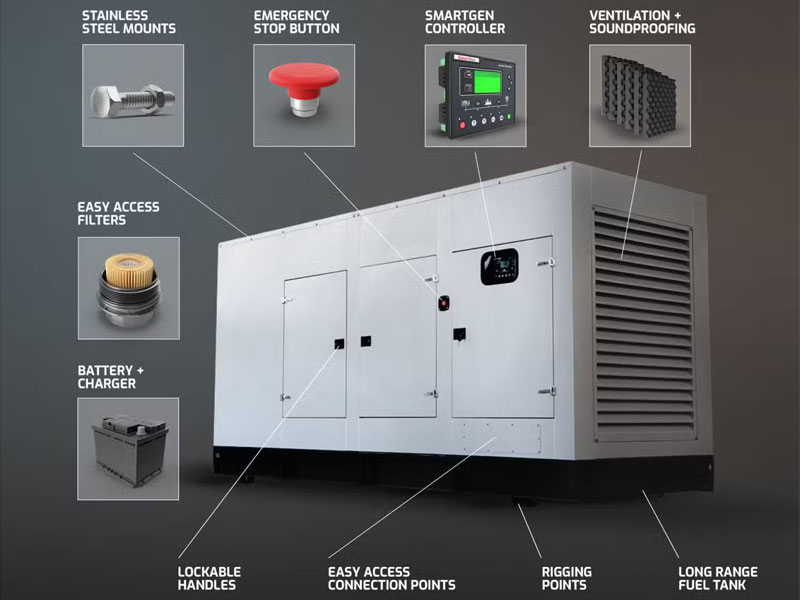

• Silent, weather-resistant canopy with lockable doors & external emergency stop

• Heavy-duty baseframe with 500 L integrated fuel tank & anti-vibration mounts

• Maintenance-free battery & static charger included; easy cable entry; dial fuel gauge

Technical Specifications

General

• Brand / Model: SDEC GKSD-265

• SKU: GKSD-265

• Phase / Connection: 3-phase, 4-wire

• Voltage: 230/400 V

• Frequency: 50 Hz

• Power factor: 0.8

• Prime power (PRP): 250 kVA

• Standby power (ESP): 265 kVA

• Speed: 1500 rpm

Dimensions & Weight

• L × W × H: 3150 × 1150 × 2330 mm

• Dry weight: 2535 kg

• Enclosure: Silent, weather-resistant canopy (sound-attenuated)

What’s Included

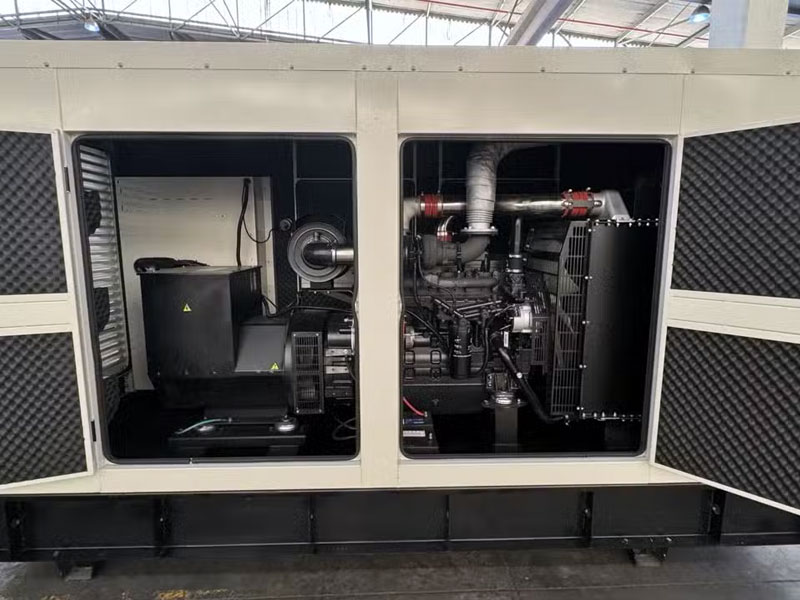

• Complete generator set (engine, alternator, baseframe)

• Silent weather-resistant canopy

• ATS (four-pole, electrically & mechanically interlocked)

• Smartgen HGM6120N controller

• Integrated 500 L fuel tank

• Maintenance-free battery & static charger

• Standard exhaust silencer

• User/operation guide & basic handover pack

Installation & CoC (Gauteng)

Enerlux can supply, deliver, install, commission and issue a CoC in Gauteng. Site specifics (slab, ventilation, cable lengths, earthing and changeover integration) will be confirmed during a pre-installation check. Lead times depend on stock, transport and site readiness.

FAQs

Q1: Does it start automatically during an outage?
Yes. The supplied ATS and HGM6120N controller manage automatic start/stop and safe transfer.

Q2: How long will it run on the tank?
At 75% load, the 500 L tank and typical consumption of ≈40.7 L/h give an indicative runtime of ~12 hours. Actual runtime varies with load and environment.

Q3: Is it suitable for sensitive electronics?
Yes. The AVR (SX460) maintains tight voltage regulation (±1%), suitable for most commercial loads. Extra conditioning (UPS/filters) can be added if needed.

Q4: Do you service and support this model?
Yes. Enerlux offers service plans, spares and call-outs. Standard maintenance covers oil, fuel and air-filter replacements per schedule.
