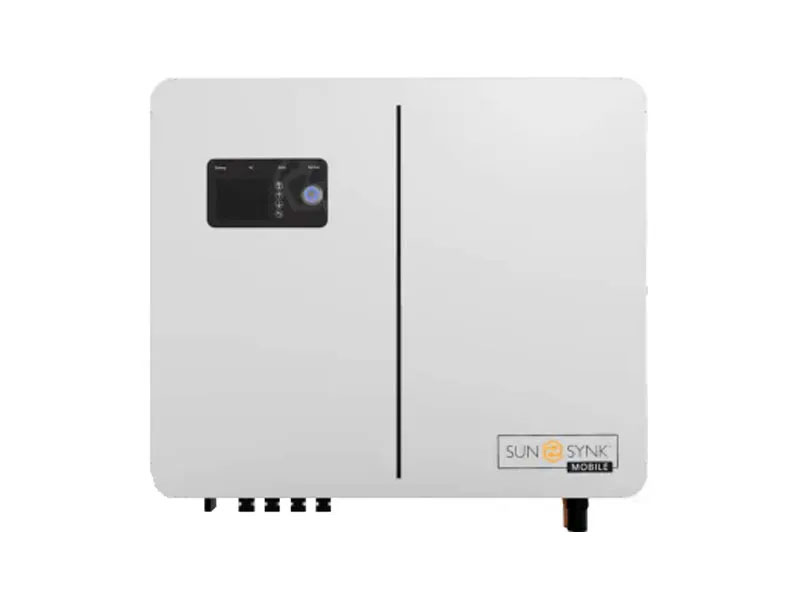

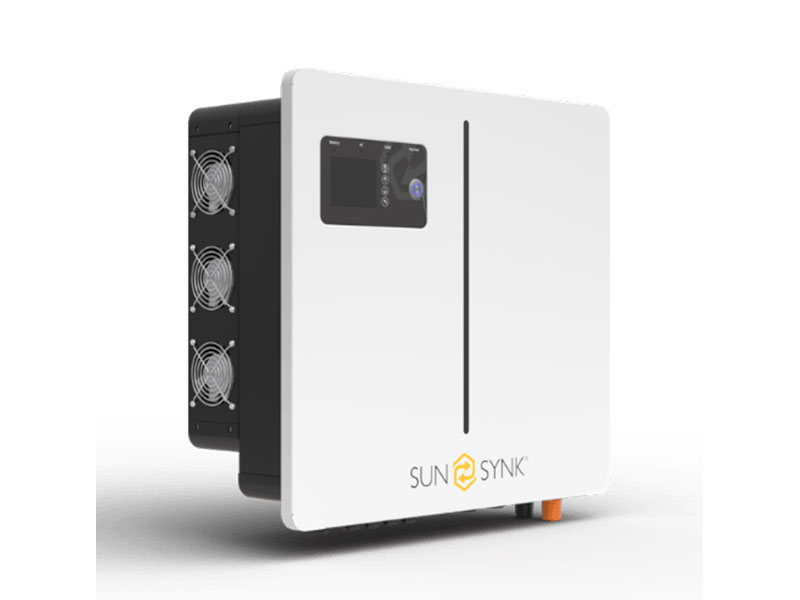

Sunsynk Lynks Pro 10kW Hybrid Inverter Overview
The Sunsynk Lynks Pro 10kW hybrid inverter is a high-performance energy solution designed for residential and commercial solar installations requiring higher output capacity and flexibility. Built for modern solar systems, this inverter integrates solar PV, battery storage, and grid power into one intelligent system.
This 10kW 48V single phase hybrid inverter allows you to maximise solar generation, store excess energy in batteries, and ensure uninterrupted power supply during outages. With its IP65-rated enclosure, it is suitable for both indoor and outdoor installations, making it ideal for a wide range of environments.
Why Choose the Sunsynk Lynks Pro 10kW Inverter
The Sunsynk 10kW inverter is designed for high-demand households and commercial applications where performance, scalability, and reliability are essential.
- 10kW output for larger residential and commercial systems
- Compatible with lithium and lead-acid batteries
- Dual MPPT for optimal solar generation
- Supports grid-tied, hybrid, and off-grid configurations
- Expandable to 3-phase systems
- Fast switching time for uninterrupted power supply
Advanced Hybrid Energy Management
This inverter intelligently manages energy flow between solar panels, batteries, and the grid. It prioritises solar usage, stores excess energy for later use, and seamlessly switches to backup power when needed.
System Benefits
- Reduced reliance on grid electricity
- Lower electricity costs
- Reliable backup during power outages
- Optimised energy usage
Key Features
- Maximum DC input power of 15kWp
- Dual MPPT with up to 28A input per tracker
- Touchscreen LCD for easy control and monitoring
- Wi-Fi connectivity for remote monitoring
- CT clamp included for energy management
- IP65 protection for outdoor installation
- High efficiency up to 97.6%
Technical Specifications
- Rated Power: 10kW
- Battery Voltage: 48V
- Phase: Single Phase
- Max PV Input Power: 15kW
- MPPT Voltage Range: 120V – 450V
- Max Input Current: 28A per MPPT
- Output Voltage: 220/230/240Vac
- Efficiency: Up to 97.6%
- Protection Rating: IP65
Applications
The Sunsynk 10kW hybrid inverter is ideal for large residential homes, small to medium businesses, and backup power systems. It is suitable for grid-tied, hybrid, and off-grid installations.
Compatibility and Installation
This inverter is compatible with a wide range of lithium and lead-acid battery systems. Installation must be carried out by a qualified electrician in accordance with local electrical regulations.
Warranty and Registration
The inverter includes a standard 5-year warranty. Warranty registration is required after installation to ensure full coverage and manufacturer support.
Important Compatibility Note
This model is not compatible with older Lynks IP41 inverter ranges. Ensure correct system design before installation.
Why Buy from Enerlux
Enerlux supplies high-quality solar equipment across South Africa, offering reliable products, expert system design, and professional support. Our solutions are built for long-term performance and maximum return on investment.
Important Compatibility and Warranty Information
The Sunsynk Lynks Pro 2nd Generation IP65 inverter is not compatible with the older Lynks IP41 inverter range. It is important to ensure correct system design and compatibility before installation.
All Sunsynk inverter installations must be registered after commissioning to activate the full manufacturer warranty. Warranty registration must be completed within 7 days of commissioning. Failure to register the system within this timeframe may result in the warranty being void.
Professional Installation Requirement
This product must be installed by a qualified electrician or solar technician. All installations must comply with local electrical regulations, wiring standards, and safety requirements.
Enerlux will not be held liable for any product malfunction, system failure, or damage resulting from incorrect installation, improper system design, or failure to comply with applicable electrical standards.
FAQ
Frequently Asked Questions – Sunsynk Lynks Pro 10kW Hybrid Inverter
What can a Sunsynk 10kW hybrid inverter run?
The Sunsynk 10kW hybrid inverter is suitable for large residential homes and small to medium businesses. It can run essential loads such as lights, plugs, fridges, TVs, and even high-demand appliances like air conditioners, pumps, and certain kitchen appliances depending on system design and battery capacity.
How many solar panels can I connect to this 10kW inverter?
This inverter supports up to 15kW of solar input, which typically allows between 18 to 24 high-wattage solar panels depending on the panel size and system configuration. Final design should always be confirmed based on panel specifications and voltage limits.
Can the Sunsynk 10kW inverter work without batteries?
Yes, the Sunsynk 10kW hybrid inverter can operate without batteries in a grid-tied configuration. However, to have backup power during outages, a compatible battery system must be installed.
Is this inverter suitable for off-grid systems?
Yes, the Sunsynk 10kW inverter can be used in off-grid, hybrid, and grid-tied systems. It is designed to automatically manage energy sources and ensure stable power supply across different configurations.
What batteries are compatible with this inverter?
This inverter supports a wide range of lithium (LiFePO4) and lead-acid batteries. For best performance and communication, compatible lithium batteries with BMS integration are recommended.
Can I expand this inverter to a 3-phase system?
Yes, multiple Sunsynk Lynks Pro inverters can be configured together to form a 3-phase system. This is ideal for larger installations or commercial applications requiring higher power capacity.
Is the Sunsynk Lynks Pro 10kW inverter waterproof?
The inverter has an IP65 rating, which means it is protected against dust and water ingress. It can be installed outdoors, provided it is mounted correctly and protected from direct harsh environmental exposure.
Does this inverter include monitoring?
Yes, the inverter includes Wi-Fi connectivity for remote monitoring. You can track system performance, energy generation, and battery usage through a mobile app or online platform.
How fast does the inverter switch during a power outage?
The inverter has a fast switching time of approximately 10 milliseconds, ensuring a seamless transition to backup power without noticeable interruption to connected loads.
Do I need to register the warranty?
Yes, the inverter warranty must be registered within 7 days of commissioning to ensure full coverage. Failure to register may result in the warranty being void.
Can I install this inverter myself?
No, this inverter must be installed by a qualified electrician or solar installer. Incorrect installation may lead to system failure, safety risks, and voiding of the warranty.
Is this inverter compatible with older Lynks models?
No, the Lynks Pro 2nd Generation IP65 inverter is not compatible with older Lynks IP41 models. System compatibility should always be confirmed before installation.
