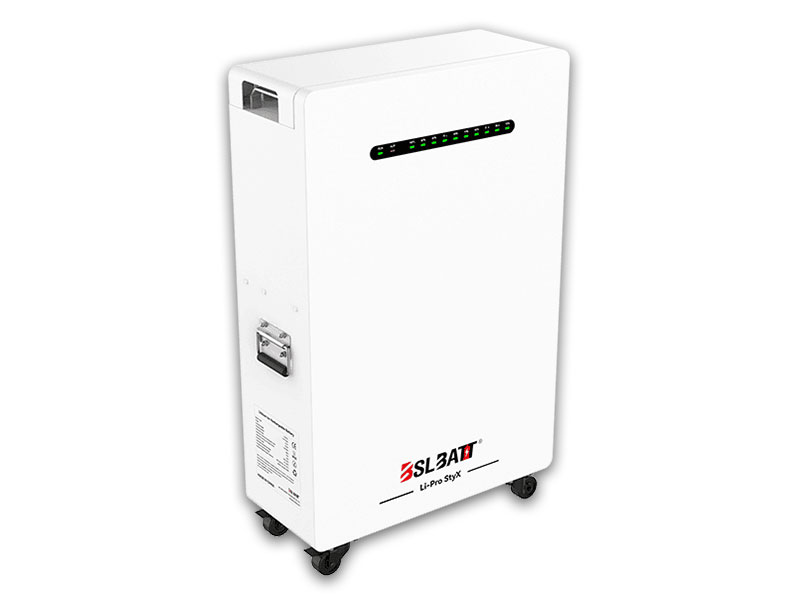

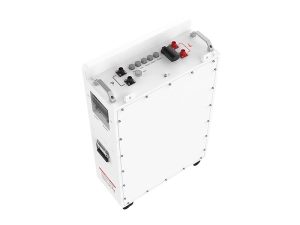

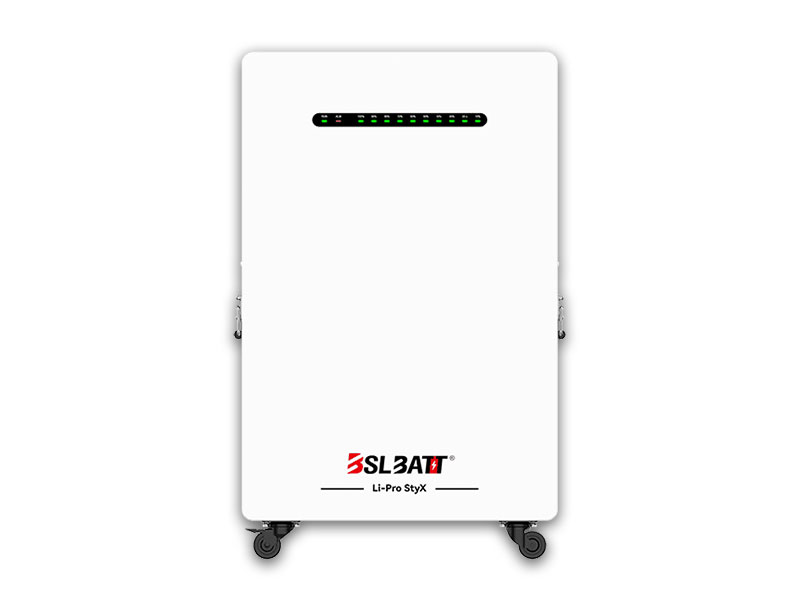

BSL BATT Li-Pro StyX 16.07kWh 51.2V 314Ah LiFePO4 Wall-Mount Battery
Overview of the BSL BATT Li-Pro StyX Battery
The BSL BATT Li-Pro StyX is a high-capacity low-voltage lithium iron phosphate (LiFePO4) battery designed for residential and light commercial solar energy storage systems. With a nominal voltage of 51.2V and a large 314Ah capacity, the Li-Pro StyX delivers strong discharge performance, outdoor-rated protection, and modular scalability in a wall-mounted enclosure.
What the Li-Pro StyX Battery Is Designed to Do
The Li-Pro StyX battery stores DC electrical energy and supplies it to a compatible low-voltage inverter. It is designed to:
- Provide extended backup power during grid outages
- Support high daily energy consumption
- Operate in residential and light commercial solar systems
- Allow scalable battery banks through parallel expansion
What the Li-Pro StyX Battery Is Not
The Li-Pro StyX is a battery only and does not perform inverter functions. Specifically:
- It is not an inverter and cannot produce AC power
- It does not include MPPT charge controllers
- It does not connect directly to solar panels
- It must not be used in high-voltage battery systems
System Type and Voltage Class
The BSL BATT Li-Pro StyX is designed for 48V-class low-voltage battery systems. Electrical characteristics include:
- Nominal battery voltage: 51.2V
- Discharge voltage: 47V
- Charge voltage: 55V
- Low-voltage DC architecture compatible with hybrid and off-grid inverters
Battery Chemistry and Cell Design
The battery uses Tier One, A+ grade lithium iron phosphate (LiFePO4) cells in a 16S1P configuration. This design provides:
- High thermal stability and safety
- Consistent voltage under load
- Long service life under daily cycling
Battery Management System and Protection
An integrated intelligent battery management system continuously monitors and protects the battery during operation. Protection features include:
- Over-charge and over-discharge protection
- Over-current and short-circuit protection
- Temperature monitoring and protection
- Cell balancing for long-term performance
Charge and Discharge Performance
The Li-Pro StyX is designed for strong continuous and peak power delivery within low-voltage systems.
Charge Specifications
- Rated charge current: 80A (5.12kW)
- Maximum charge current: 160A (8.19kW)
- Peak charge current: 210A (10.75kW, 1 second)
Discharge Specifications
- Rated discharge current: 200A (10.24kW)
- Maximum discharge current: 250A (12.80kW, 1 second)
- Peak discharge current: 220A (11.26kW, 1 second)
Scalability and Parallel Expansion
The BSL BATT Li-Pro StyX battery is designed for modular system growth.
- Support for up to 15 identical batteries connected in parallel
- Total system capacity scalable beyond 240kWh
- Parallel expansion increases both capacity and discharge capability
Communication and Inverter Integration
The battery supports multiple communication protocols for inverter and system integration:
- CAN communication
- RS485 communication
- RS232 communication
- Optional Wi-Fi and Bluetooth modules
Technical Specifications – BSL BATT Li-Pro StyX
- Battery chemistry: LiFePO4
- Total energy capacity: 16.076kWh
- Usable energy: 15.272kWh
- Nominal capacity: 314Ah
- Nominal voltage: 51.2V
- Depth of discharge: 95%
- Cycle life: >4000 cycles at 25°C
- Design life: >15 years at 25°C
Physical Specifications and Installation
The Li-Pro StyX is designed for outdoor-capable wall-mounted installation.
- Installation type: Wall-mounted
- Dimensions (W × H × D): 930 × 660 × 415 mm
- Weight: 137 kg
- Cooling type: Natural cooling
- Ingress protection rating: IP65
Environmental Operating Limits
- Charge temperature range: 0°C to 35°C
- Discharge temperature range: -20°C to 55°C
- Operating humidity: ≤60% RH
- Monthly self-discharge: ≤3%
- Maximum installation altitude: <4000 m
Typical Applications for the Li-Pro StyX Battery
- Residential solar energy storage systems
- Outdoor wall-mounted battery installations
- Hybrid solar and backup power systems
- Scalable low-voltage battery banks
FAQ
Frequently Asked Questions
What makes the Li-Pro StyX different from indoor wall batteries?
The Li-Pro StyX features an IP65-rated enclosure, allowing outdoor installation while protecting the battery from dust and water ingress, unlike typical indoor-only wall batteries.
What inverter sizes pair well with the Li-Pro StyX battery?
With a 314Ah capacity and strong discharge capability, the Li-Pro StyX is commonly paired with medium to larger low-voltage inverter systems. Final inverter selection depends on expected continuous loads, surge behaviour, and whether additional batteries will be added later.
Can the Li-Pro StyX support high household loads?
Yes. The high amp-hour capacity and strong discharge current allow it to support higher household loads and longer runtime compared to smaller wall-mounted batteries.
How many Li-Pro StyX batteries can be connected together?
Up to fifteen identical batteries can be connected in parallel, allowing substantial system expansion while maintaining a low-voltage architecture.
Is the battery suitable for daily cycling?
Yes. The battery is rated for more than 4000 cycles at 25°C and is designed for daily charge and discharge operation.
Which inverter brands are compatible with the Li-Pro StyX?
The Li-Pro StyX works with Deye, Sunsynk, Luxpower, and Solis inverters when configured with the correct communication settings.
Which communication protocols does the battery support?
The battery supports CAN, RS485, and RS232 communication, with optional Wi-Fi and Bluetooth modules for monitoring.
Is the Li-Pro StyX suitable for outdoor installation?
Yes. The IP65-rated enclosure makes it suitable for outdoor wall-mounted installations when installed according to manufacturer guidelines.
