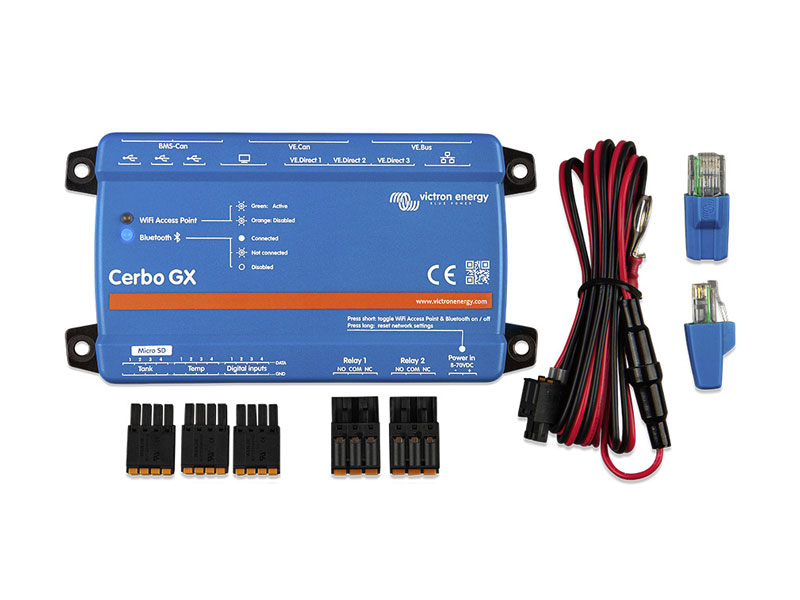

Victron Cerbo GX

Overview

The Victron Cerbo GX is a powerful communication hub that brings together your entire energy system, providing real-time monitoring, full control, and remote access. Whether you’re on-site or halfway around the world, the Cerbo GX ensures you’re always connected to your Victron system — ideal for solar, battery storage, marine, RV, and off-grid applications.

Key Features

• Central Control Hub for Energy Systems:
  Seamlessly manages batteries, inverters, solar charge controllers, BMS, tank levels, and more in one centralized device.

• Remote Access via VRM Portal:
  Monitor and control your system in real time using the Victron Remote Management (VRM) portal via LAN, WiFi, or 4G router connection.

• Local Control via GX Touch Display (optional):
  Pair with the GX Touch 50 or GX Touch 70 display (sold separately) for an intuitive, touch-based interface.

• Extensive Connectivity:
  Features VE.Bus, VE.Direct, VE.Can, USB, HDMI, and Ethernet ports for full integration with all Victron devices and third-party equipment.

• Bluetooth Configuration:
  Easily configure and update settings via the VictronConnect app using built-in Bluetooth.

• Multi-Input Support:

  • 4x resistive tank inputs

  • 4x temperature sensor inputs

  • 4x digital inputs

  • 2x programmable relays

• Custom Control Options:
  Set up auto generator start/stop, shore power limits, and custom alerts and diagnostics with real-time tracking.

• Compact and Versatile Mounting:
  Wall-mount or optional DIN-rail mount (adapter sold separately).

Technical Specifications

• Supply Voltage: 8 – 70V DC

• Operating Temperature: -20°C to +50°C

• Dimensions (H x W x D): 78 x 154 x 48 mm

• Mounting: Wall or DIN rail (DIN35 adapter required)

• Compatible Displays: GX Touch 50 / GX Touch 70 (sold separately)

• Ports:

  • 3 x VE.Direct

  • 2 x VE.Bus

  • 1 x VE.Can

  • 3 x USB

  • 1 x HDMI

  • Ethernet port

  • Micro SD slot

Ideal For

• Off-grid and hybrid solar systems

• Marine and mobile applications (yachts, RVs)

• Backup battery systems

• Energy storage and commercial energy management
