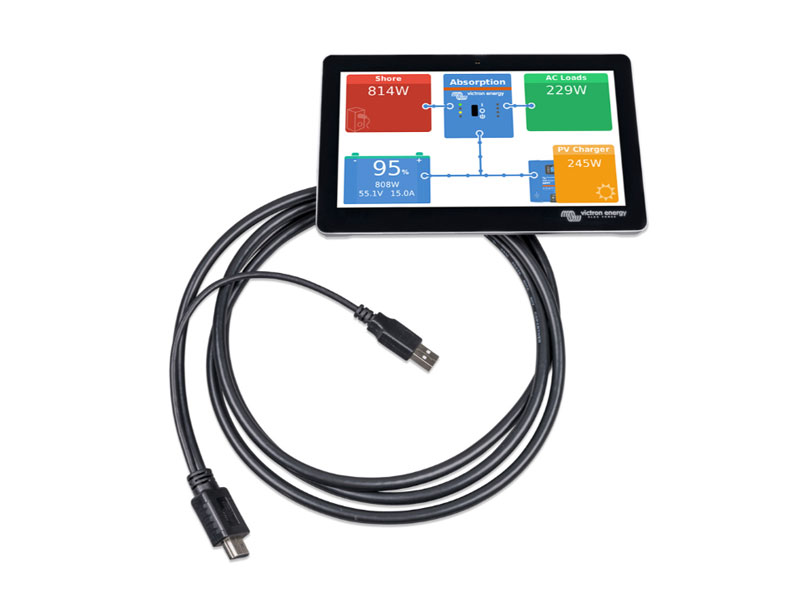

Victron GX Touch 70

Overview

The Victron GX Touch 70 is a 7-inch touch display designed as a user interface for the Cerbo GX and Cerbo-S GX communication centers. With an intuitive design and real-time system feedback, it provides an instant overview and direct control of your entire Victron installation. The GX Touch 70 is the ideal accessory for those seeking professional-grade monitoring, customization, and remote control in their solar or energy storage system.

Key Features

Large 7-Inch Touchscreen Display:
Offers a clear, high-resolution (1024 × 600) interface for system monitoring and control.
Real-Time System Overview:
Instantly view and manage battery state of charge, power usage, PV production, generator status, tank levels, and temperature readings.
Easy One-Cable Setup:
The GX Touch 70 connects to the Cerbo GX via a single cable (included), simplifying installation and reducing wiring clutter.
Remote Configuration via VRM Portal:
Enables full remote control and diagnostics of your system over the internet or local network using Victron Remote Management (VRM).
Bluetooth-Assisted Setup:
Use the VictronConnect App for fast initial setup via Bluetooth.
Waterproof Design – IP54 Rating:
Suitable for indoor or protected outdoor environments. UV protection cover included with units from serial number HQ2242 onwards.
Flexible Mounting Options:
Can be top-mounted directly onto dashboards or surfaces using the included hardware. An adapter kit is available for replacing older Color Control GX units.

Technical Specifications

Display Resolution: 1024 × 600
Screen Size: 7 inches (diagonal)
Dimensions: 113 × 176 × 13.5 mm
Cable Length: 2 meters
Mounting: Surface-mount (hardware included)
Protection Rating: IP54 (without connectors)
Operating Temperature: -20°C to +50°C
Compatible Devices: Cerbo GX, Cerbo-S GX

Use Cases

Residential and Commercial Solar Systems
Off-grid Energy Installations
Backup and Energy Storage Systems
Marine and RV Power Management

Weight	2 kg
Dimensions	11.3 × 17.6 × 1.35 cm
Brand:	Victron
Product Type:	GX Touch 70
Color:	Black
Weight:	2kg
Dimensions:	113 × 176 × 13.5 mm
