PV Combiner box 2-in 2-out 1000V 32A

A combiner box allows you to combine multiple strings of panels into one output and protects against overloading or shorts that might take place by way of fuses and circuit breakers.

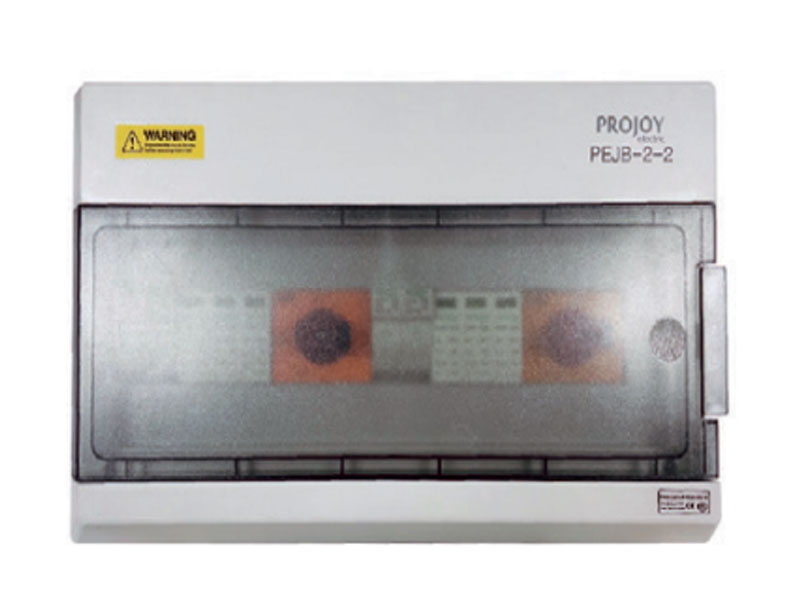

PEJB-2-2
General Data
Input	2 String
Output	2 String
Maximum Voltage	1000V
Max DC Short Circuit Current Per Input	16A
Maximum Current Output	32A

Enclosure
Material Type	Polycarbonate/ABS
Degree of Protection	IP65
Degree of Resistance to lmpacts	IK10
Dimension (WxHxD)	381×230×110mm (18P)

DC Switch Disconnector
Rated Insulation Voltage(Ui)	1000V
Rated Current(le)	32A
Category	DC21B/PV1
Standard Compliance with	IEC60947-3
Certification	UL, TUV, SAA, CE, CB

DC Surge Arrester
Max Operation Voltage(Ucpv)	1000V
Standard Compliance with	IEC 61643-11/EN61643-31
Maximum Discharge Current	40KA
Type	T2
Certification	TUV, CE, CB

DC Fuse
Rated Working Voltage	1000V
Rated Working Current	16A
Fuse Link	10×38mm
Certification	CB, CE

Environment
Operaling Temperature	-20℃~+60℃
Humidity	99%
Altitude	2000M
Installation	Wall Mounting

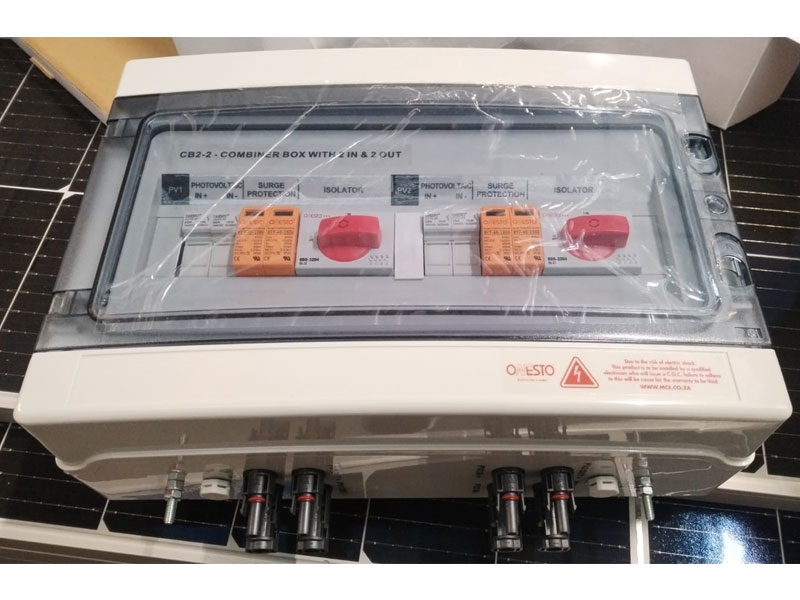

Outdoor-rated DC box for easily adding protection features to the PV strings into your MPPT. The box includes several features that reduce the number of separate components you need to install.

Inputs and Outputs

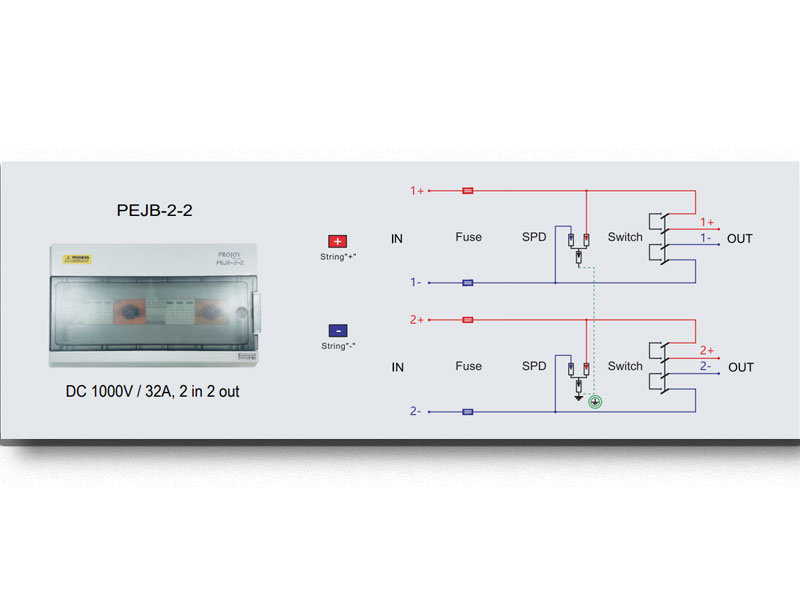

This unit combines 2 PV input pairs into 2 DC outputs. The inputs and outputs have MC4 connectors pre-fitted.

Weight	3 kg
