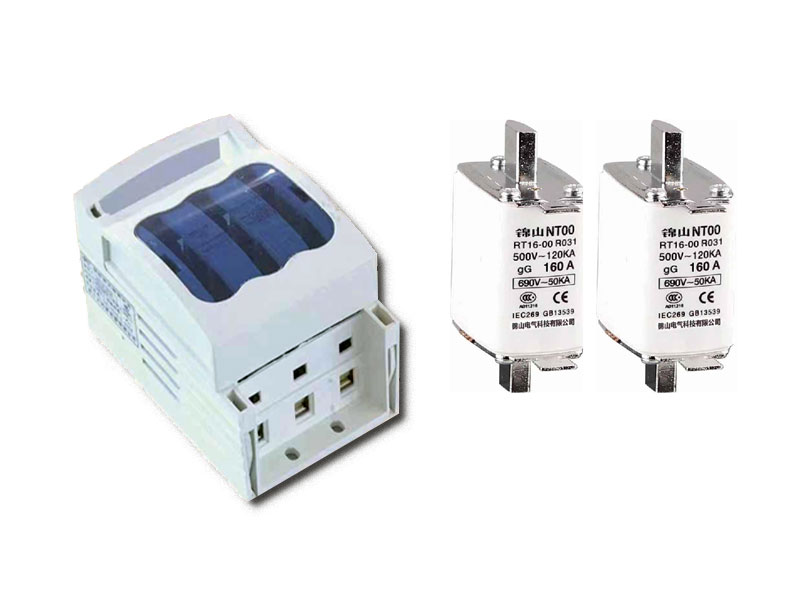

160Amp Disconnector with Fuses

The production program of MULTIBLOC® series 00.ST8 battery isolator comprises NH fuse switch disconnectors for 160A.
They are designed for bottom fitting/panel installation and are available in single-pole, double-pole, and quadruple-pole units.
For installation of MULTIBLOC® NH fuse switch disconnectors in distribution units with central cover, respective covers are used to obtain a uniform profile in height and length.
MULTIBLOC® size 00 is designed for NH fuse-links in accordance with IEC/EN 60269-2, VDE 0636-2, size 00, 160A.
MULTIBLOC® offers the user the possibility of fast and easy installation as well as a high degree of security during installation and maintenance.

Touch protection IP 20 – when the fuse link is in test mode IP rating is maintained
Parking position of switch operating cover even with fuse links inserted
The modular system of cover – cover for cable termination area can be extended – optional
Varieties of cable termination: screw, clamp strap, Al-Cu clamp, extendable for V-terminal – optional
Padlocking and sealing of switch door cover – optional
Indicating switch for switch door position – optional
Safe on load connection/disconnection in accordance with IEC 60947-3

APPLICATIONS

House incoming units
Meter distribution units
Measuring transformer cabinets
Transmitting stations for telecommunications

Weight	0.62 kg
