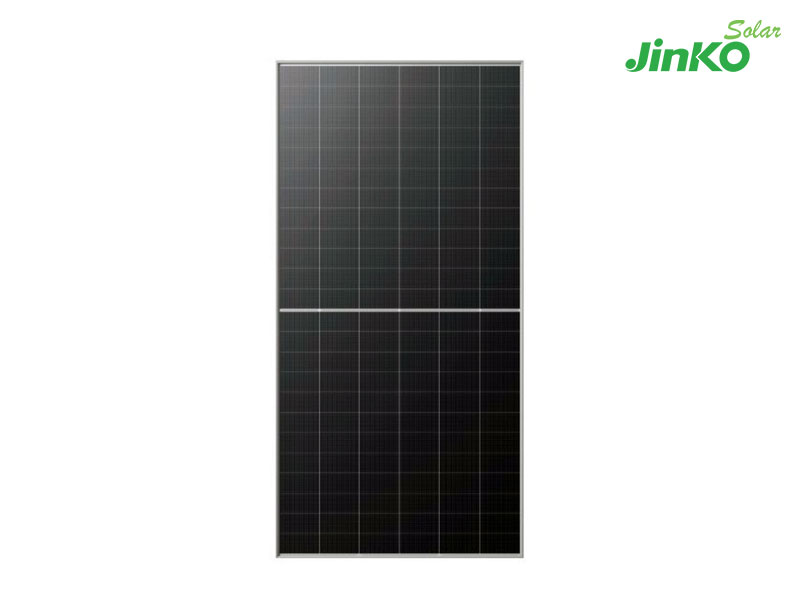

Jinko 590W Solar Panel – High-Efficiency N-Type Module

The Jinko 590W Solar Panel is a high-performance mono-facial module designed for superior efficiency and durability. With advanced N-type technology and multi-busbar design, it offers enhanced power output and long-term reliability.

Key Features

✅ High Output Power – Delivers up to 590W for maximum energy generation.
✅ Superior Efficiency – 22.8% efficiency, optimizing space and energy yield.
✅ Multi-Busbar Technology – Enhances current collection, reducing power loss.
✅ Better Shading Tolerance – Maintains performance even in partial shading conditions.
✅ Lower Levelized Cost of Energy (LCOE) – Improved cost-effectiveness over time.
✅ Enhanced Durability – Designed to withstand extreme environmental conditions.
✅ PID Resistance – Anti-PID technology minimizes performance degradation.
✅ Extended Warranty – 12-year product warranty and 30-year linear power warranty ensure long-term reliability.

Specifications

• Rated Power: 590W
• Efficiency: 22.8%
• Voltage at Maximum Power (VMPP): 43.71V
• Current at Maximum Power (IMPP): 13.5A
• Open Circuit Voltage (Voc): 52.63V
• Short Circuit Current (Isc): 14.13A
• Temperature Coefficient (Pmax): -0.29%/°C
• Connector Type: MC4
• Clamp Position: Long and short side

Mechanical Specifications

• Dimensions: 2,278mm × 1,134mm × 30mm
• Weight: 27 kg
• Glass: 3.2mm Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
• Frame: Anodized Aluminium Alloy
• Junction Box: IP68 Rated
• Operating Temperature Range: -40°C to +70°C
• Maximum System Voltage: 1500V DC

Handling & Installation

⚠️ Forklift Required: Due to the size of these panels and the gaps in pallet slats, a forklift is necessary for offloading.
⚡ Mounting Orientation: Water ballasts must be installed in a landscape orientation.
📦 Pallet Size: Oversized for safe transportation.

Why Choose Jinko 590W Solar Panels?

• Best-in-Class Performance: Featuring HOT 3.0 N-type technology, these panels provide exceptional reliability and efficiency.
• Robust & Weather-Resistant: Certified to endure harsh conditions, including high salt mist and ammonia resistance.
• Proven Track Record: JinkoSolar is a world-leading solar brand trusted for premium quality and innovation.

Upgrade your solar system with the Jinko 590W Solar Panel and experience unmatched power efficiency and long-term savings!

For inquiries or a tailored quotation, feel free to contact us. 🚀🔆
