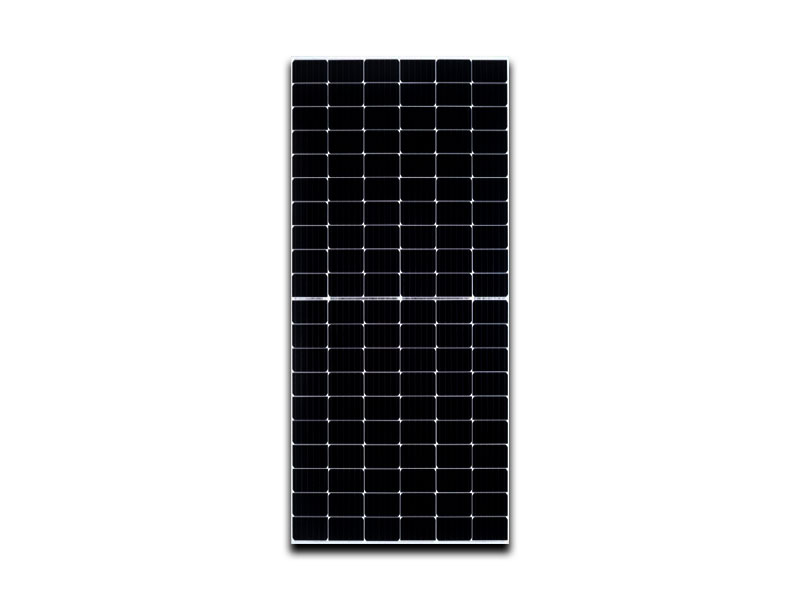

Canadian Solar 705W Bifacial N-Type TOPCon Solar Panel

The Canadian Solar 705W Bifacial N-Type TOPCon Solar Panel is a high-output solar module designed for commercial, industrial, agricultural, and large-scale solar PV installations. With 705W rated power, N-Type TOPCon cell technology, and bifacial glass-glass construction, this panel is built for projects where strong energy production, long-term reliability, and high system efficiency are required.

This panel forms part of Canadian Solar’s TOPBiHiKu7 range and is suitable for high-voltage solar systems, large rooftop projects, ground-mount solar farms, and commercial energy installations. Its bifacial design allows the module to generate power from both the front and rear sides, depending on the installation structure, height, tilt, and ground reflectivity.

High Power 705W Solar Panel

With a nominal power rating of 705W, this Canadian Solar panel is ideal for larger solar systems where fewer high-wattage modules can help achieve the required system size. This makes it a practical option for commercial rooftops, farms, warehouses, factories, and large energy projects.

N-Type TOPCon Technology

N-Type TOPCon solar cell technology is designed to improve performance, efficiency, and long-term energy yield. The panel offers excellent anti-LeTID and anti-PID performance, helping to reduce degradation and support stable solar production over time.

Bifacial Glass-Glass Design

The bifacial design allows the panel to generate additional power from the rear side when installed in suitable conditions. This can improve total energy yield, especially on reflective surfaces, elevated structures, ground-mount systems, and large commercial solar installations.

Key Features

• 705W rated solar panel output
• N-Type bifacial TOPCon technology
• Module efficiency of 22.7%
• 80% power bifaciality
• Glass-glass module construction
• 1500V DC maximum system voltage
• 35A maximum series fuse rating
• IP68 junction box with 3 bypass diodes
• Heavy snow load rating up to 5400 Pa
• Wind load rating up to 2400 Pa
• Suitable for commercial and industrial solar systems

Commercial and Large-Scale Solar Applications

The Canadian Solar 705W panel is well-suited to larger solar projects where high module output and reliable long-term performance are required. It can be used for commercial buildings, farms, warehouses, factories, schools, estates, industrial facilities, and large ground-mount solar installations.

Mechanical Data

• Cell Type: N-Type TOPCon cells
• Cell Arrangement: 132 cells
• Dimensions: 2384 x 1303 x 33 mm
• Weight: 37.8 kg
• Front Glass: 2.0 mm heat-strengthened glass with anti-reflective coating
• Back Glass: 2.0 mm heat-strengthened glass
• Frame: Anodized aluminium alloy
• Junction Box: IP68, 3 bypass diodes
• Cable: 4.0 mm²
• Connector: T6, MC4-EVO2 or MC4-EVO2A
• Pieces Per Pallet: 33 panels

Electrical Data

• Model: CS7N-705TB-AG
• Nominal Maximum Power: 705W
• Operating Voltage: 40.2V
• Operating Current: 17.55A
• Open Circuit Voltage: 48.1V
• Short Circuit Current: 18.54A
• Module Efficiency: 22.7%
• Power Tolerance: 0 ~ +10W
• Maximum System Voltage: 1500V DC
• Maximum Series Fuse Rating: 35A
• Protection Class: Class II

Temperature Characteristics

• Temperature Coefficient of Pmax: -0.29% / °C
• Temperature Coefficient of Voc: -0.25% / °C
• Temperature Coefficient of Isc: 0.05% / °C
• Nominal Module Operating Temperature: 41 ± 3°C
• Operating Temperature: -40°C to +85°C

Warranty and Reliability

The Canadian Solar TOPBiHiKu7 range is designed for long-term solar energy production with enhanced reliability. The panel range offers a 12-year enhanced product warranty on materials and workmanship and a 30-year linear power performance warranty, subject to the applicable Canadian Solar warranty terms.

Important Installation Notice

Solar panels must be installed by qualified solar installers using correctly designed mounting structures, cable sizing, string configuration, DC protection, and inverter compatibility checks. Final system design, electrical compliance, roof suitability, wind loading, mounting method, and CoC requirements remain the responsibility of the qualified installer.
