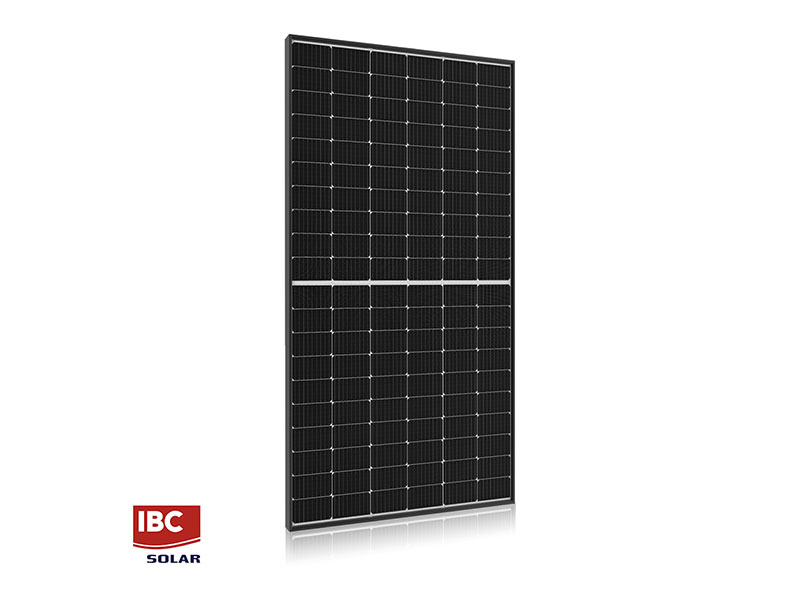

IBC MonoSol 370 Watt Solar Panel

Type:	PERC
Power Range:	365 ~ 375 Wp
Manufactured:	Germany

Type:

PERC

Power Range:

365 ~ 375 Wp

Manufactured:

Germany

Description

Additional information

Reviews (0)

Shipping & delivery

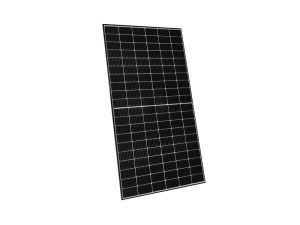

IBC MonoSol 370 OS9-HC monocrystalline solar module

A PV module uses semiconductor material, similar to computer chips, to transform sunlight into direct current. This process does not use any moving parts and works even in areas with limited sunshine hours. The generated direct current is then transformed into alternating current via a so-called inverter. The AC power can either be consumed on-site, stored with a battery, or fed back into the power grid.

Efficiency (%) 20.31
Open Circuit Voltage (V) 40.9
Short Circuit Current (A) 11.52
Maximum Power Point Voltage (Vmpp) (V) 34.4
Maximum Power Point Current (Impp) (A) 10.76
Maximum Power Point (Pmax) (W) 370

Weight	20 kg
Efficiency (%)	20.31%
Panel Dimension (H/W/D)	1755x1038x35 mm
Product Warranty	10 Years
STC Maximum Power (Pmax)	370 Wp
STC Voltage at Maximum Power (Vmpp)	34.4 V
STC Current at Maximum Power (Impp)	10.76 A
STC Open Circuit Voltage (Voc)	40.9 V
STC Short Circuit Current (Isc)	11.5 A
STC Power Tolerance (Positive)	+ 1.5 %
NOCT Maximum Power (Pmax)	274.1 Wp
NOCT Voltage at Maximum Power (Vmpp)	31.8 V
NOCT Open Circuit Voltage (Voc)	38.2 V
NOCT Short Circuit Current (Isc)	9.29 A
NOCT Temperature	45 °C
Temperature Coefficient of Pmax	-0.35 %/°C
Temperature Coefficient of Isc	0.048 %/°C
Maximum System Voltage	1500 V
Series Fuse Rating	15 A
Weight	20 kg
Cell Type	Mono PERC
Cell Number	120
Glass Type	Anti-reflection Coating
Glass Thickness	3.2 mm
Frame Type	Anodized Aluminium Alloy
Cable Length	1400 mm
