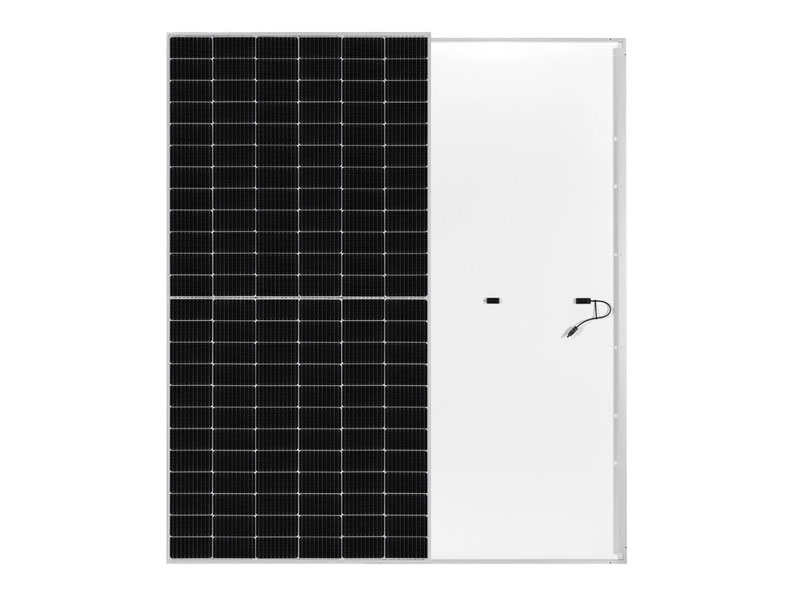

Canadian Solar 605W Super High Power Mono PERC HiKu7 with EVO2

Part No: CS7L-605MS-EVO2

This Canadian Solar 605W Super High Power Mono PERC HiKu7 solar panel is designed for those seeking a high-performance, reliable, and cost-effective solution for large-scale solar installations. With its cutting-edge technology and superior construction, it’s the perfect addition to any utility-scale solar energy system.

Powerful Solar Panel for Large-Scale Installations

The Canadian Solar 605W Super High Power Mono PERC HiKu7 module is designed for utility-scale solar projects, offering high efficiency and robust performance. This panel is ideal for those looking to maximize energy output and reduce system costs, making it a top choice for commercial and industrial installations.

Key Features:

• Rated Power: 605W of high energy production.
• Efficiency: Up to 21.4% module efficiency for greater energy yield.
• Dimensions:
  • Width: 1,303 mm
  • Height: 2,172 mm
  • Depth: 35 mm
• Weight: 30 kg
• VMPP (Voltage at Maximum Power): 35.1 V
• IMPP (Current at Maximum Power): 17.25 A
• Isc (Short Circuit Current): 18.52 A
• Voc (Open Circuit Voltage): 41.5 V
• Temperature Coefficient (Mpp): -0.34 %

More Power, Less Cost:

• Lower LCOE: Achieve up to 3.5% lower Levelized Cost of Energy (LCOE) and 5.7% lower system costs with this highly efficient panel.
• Advanced Degradation Technology: Equipped with LID/LeTID mitigation technology, resulting in up to 50% lower degradation over time, ensuring long-term performance and reliability.
• Shading Tolerance: Thanks to half-cut cell technology, the panel offers better performance even in shaded conditions, maximizing energy output in all weather.

More Reliable:

• Durability: Built to withstand heavy snow loads up to 5400Pa and wind loads up to 2400Pa, making it suitable for challenging environments.
• Minimized Micro-Crack Impacts: The multi-busbar design reduces the impact of micro-cracks, extending the panel’s lifespan.
• Warranty: Backed by a 12-year product warranty and a 25-year power output warranty, providing peace of mind and reliability.

Installation Information:

• Connector Type: Comes with Staubli MC4-EVO2 Connectors for easy and secure connections.
• Forklift Required: Due to the panel’s size and stacking orientation, a forklift is required for offloading the modules on-site.
• Professional Installation: This product must be installed by a qualified electrician or technician, adhering to local wiring regulations and standards.

Specifications:

• Weight: 30 kg
• Rated Power: 605W
• MCS Reference: BABT8767-56-605W
• Dimensions: 2,172 mm (Length) x 1,303 mm (Width) x 35 mm (Depth)
• Clamp Position: Suitable for clamping on both long and short sides.
• Pallet Size: Oversized for safe handling and transport.
