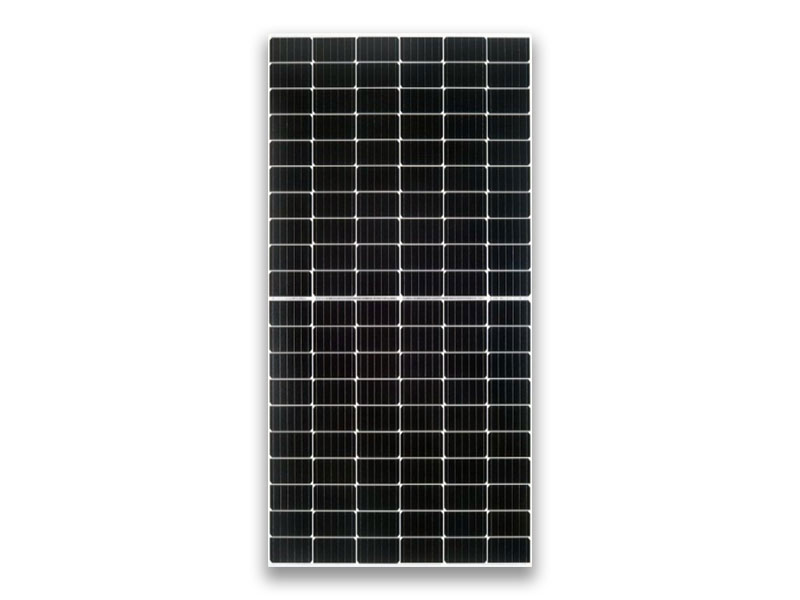

Canadian Solar 455 Watt Mono Panel

MORE RELIABLE (THANKS TO HALF-CUT CELL TECHNOLOGY):

Lower internal current, lower hot spot temperature
Cell crack risk limited to smaller areas of the cell
Innovative symmetrical module design means better shading tolerance
Heavy snow load up to 5400Pa and increased wind load up to 3600Pa
Product Warranty: 12 years
Performance Warranty: 25 years

Specification Data

Cell Type Mono-crystalline
Cell Arrangement 144 [2 X (12 X 6) ]
Dimensions: 2108 X1048 X40 mm
Weight: 24.9 kg (54.9 lbs)
Front Cover: 3.2 mm tempered glass
Frame: Anodized aluminum alloy, crossbar enhanced
J-Box: IP68, 3 bypass diodes
Cable: 4 mm2 (IEC), 12 AWG (UL)
Cable Length (Including Connector): Portrait: 500 mm (19.7 in) (+) / 350 mm (13.8 in) (-); landscape: 1400 mm (55.1 in); leap-frog connection: 1670 mm (65.7 in)*
Connector: T4 series or H4 UTX or MC4-EVO2
Per Pallet: 27 pieces

Weight	24.9 kg
Nominal Max. Power (Pmax)	455 W
Opt. Operating Voltage (Vmp)	41.3 V
Opt. Operating Current (Imp)	11.02 A
Open Circuit Voltage (Voc)	49.3 V
Short Circuit Current (Isc)	11.66 A
Module Efficiency	20.6%
Operating Temperature	-40°C ~ +85°C
Max. System Voltage	1500V (IEC/UL) or 1000V (IEC/UL)
Module Fire Performance	TYPE 1 (UL 1703) or CLASS C (IEC 61730)
Max. Series Fuse Rating	20 A
Application Classification	Class A
Power Tolerance	0 ~ + 10 W
