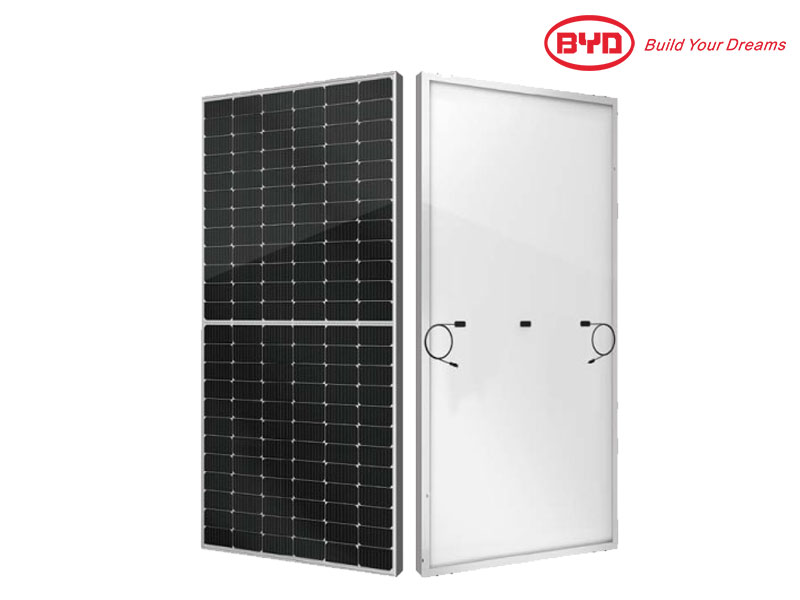

550 Watt BYD Mono Solar Panel

AURO
Mono-facial Half-Cell Module
530-555W MLK-36

Specifications

Monofacial module 550 Wp, 144 cells.
Dimensions: 2278×1134×35 mm Weight: 29.3 kg
Output cables: 1400 mm

Outstanding features

Single-face module.

• Warranty: 12 years against manufacturing defects;
• Warranty: 25 years with 80% of the output power.

550 Watt BYD Mono Solar Panel

• High power output: Using 182mm size Mono wafer, Module power output up to 21.48%
• Unique model: Unique design reduces shadow occlusion, Decreases power loss, and increases power generation.
• Gallium-doped Technology: Reduce LID by Gallium-doped process, More power generation over the life cycle
• Low-temperature coefficient: Peak power temperature coefficient-0.328%/ ºC; Excellent power generation in a high-temperature environment
• Multi-Busbar Technology: Enhanced module current collection capability Power output increased by 2.5%-3%
• Higher mechanical load capacity: Adopt high-strength aluminum alloy frame; Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load
• High-Density Encapsulation Technology: By narrowing the cell spacing, the module efficiency is increased by 0.2%
• Low LCOE(Levelized Cost of Energy):The cost of BOS reduced by 1.48%;LCOE reduced by 1.27%

550 Watt BYD Mono Solar Panel and Certificates:
· IEC61215-1(ed.1)
· IEC61215-1-1(ed.1)
· IEC61215-2(ed.1)
· IEC61730-1(ed.2)
· IEC61730-2(ed.1)
· UL61730-11 Edition
· UL61730-21 Edition

550 Watt BYD Mono Solar Panel warranty:

Warranty:12 years product warranty,25 years performance warranty.

• Model MLTK-36-550W
• Mono-facial Half Cell Module.
• High Power Output – using 182mm Mono wave Module power output up to 555W
• Gallium-Doped Technology – reduces LID through the gallium-doped process.
• Multi-Busbar Technology – increases power output by 2.5%-3%
• High-Density Encapsulation Technology – module efficiency increased by 0.2% through narrowing the cell spacing.
• Reduced shadow occlusion with unique design – decreases power loss & increases power generation.
• Excellent power generation in high-temperature environments thanks to the low-temperature coefficient of -0.328%/°C
• High-strength aluminum alloy frame.
• Mechanical Performance: up to 5400pa positive load & 2400pa negative load.
• Low LCOE (levelized cost of energy) – BOS cost reduced by 1.48% & LCOE reduced by 1.27%
• Number of cells: 144 cells
• Front Glass: 3.2mm Tempered Glass with AR Coating.
• Anodized Aluminium Alloy Frame.
• Junction Box: IP68
• Rated Maximum Power (Pmax): 550W (STC) & 409.3W (NMOT)
• Open Circuit Voltage (Voc): 50.32V (STC) & 47V (NMOT)
• Short Circuit Voltage (Isc): 13.61A (STC) & 11A (NMOT)
• Maximum Power Voltage (Vmp): 42.49V (STC) & 34.9V (NMOT)
• Maximum Power Current (Imp): 12.94A (STC) & 10.39A (NMOT)
• Module Efficiency: 21.29%
• Power Tolerance: 0-+5%
• Operating Temperature: -40°C to 85°C
• NMOT (Nominal Module Operating Temperature): 45°C±2°C
• Maximum System Voltage: 1500V DC
• Maximum Fuse Current Rating: 25A
• Dimensions (L x W x D): 2278 x 1134 x 35 mm
• Refer To Brochure For Detailed Product Specification.
• Mounting Kits & Accessories Not Included – Sold Separately.
• 12 Year Limited Product Warranty. T & C’s Apply
