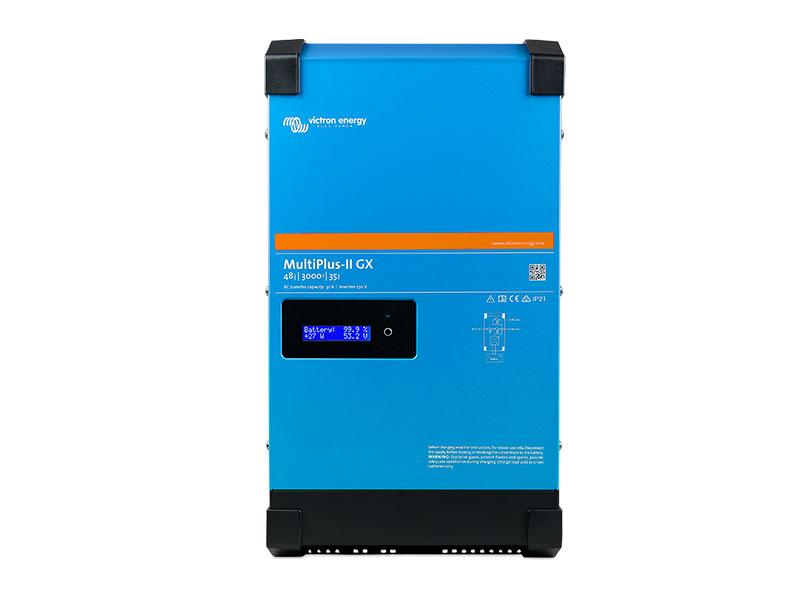

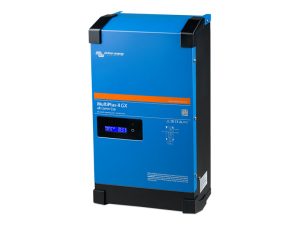

Victron MultiPlus-II 48/3000/35-32 GX

Continuous power: 2400w;
Peak power: 5500w;
Absorption charge: 57.6V;
Float charge: 55.2V;
Storage mode: 52.8V;

The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16-character display. Display and Wi-Fi the display reads battery, inverter and solar charge controller parameters.

An Inverter/Charger with device networking built-in, the MultiPlus-II GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation.

Capable of parallel operation for increased power output, or battery charge-rates, the MultiPlus-II GX can also be configured for three-phase supply.

A host of advanced features – such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power – can all be controlled straight from your phone or smart device. Remote monitoring is also possible.

The integrated GX device includes:

A VE.Can interface. This can be used to connect to Victron VE.Can devices (eg VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery.
A USB port.
An Ethernet port.
A VE.Direct port

Applications:

The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications. Parallel and three phase operation Only one GX unit is needed in case of Parallel and three phase operation.

Weight	20.4 kg
Dimensions	506 x 275 x 147 mm
Rated Output Power	3000w
weight	18 kg
Peak Output Power	5500w
Output Type	Pure sine wave
Maximum Efficiency	95
Battery Voltage	48 Volt
Input Voltage Range/s	38 – 66V
Rated Charge Current	35A
AC input Voltage	187-265 VAC
Warranty	5 Year
Weather Protection	IP21
