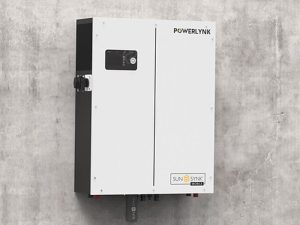

Sunsynk Powerlynk XL 5.5kW All-In-One Energy Storage System with 5.22kWh Battery
The Sunsynk Powerlynk XL is a compact, all-in-one energy storage solution designed for homeowners and small businesses seeking a simplified solar and backup power system. Unlike traditional hybrid inverter setups that require separate inverters and batteries, the Sunsynk Powerlynk XL integrates a 5.5kW inverter and a 5.22kWh lithium iron phosphate battery into a single enclosure.
This system is ideal for users who want reliable backup power, solar self-consumption, and easy installation without the complexity of designing a multi-component solar system.
What the Sunsynk Powerlynk XL Is Designed For
The Sunsynk Powerlynk XL is designed for residential and small commercial applications where simplicity, speed of installation, and clean integration are priorities. It supports power from solar panels, the utility grid, and a generator, supplying essential loads automatically when grid power is unavailable.
The Powerlynk XL is not intended to replace large multi-inverter systems but serves as a streamlined solution for properties with moderate energy demand and limited installation space.
Integrated Battery System of the Sunsynk Powerlynk XL
The Sunsynk Powerlynk XL includes a built-in 5.22kWh lithium iron phosphate (LiFePO₄) battery operating within a voltage range of 42V to 58V. LiFePO₄ chemistry provides enhanced safety, thermal stability, and long cycle life.
The battery supports 100% depth of discharge and a 1C charge and discharge rate, allowing consistent power delivery and effective use of stored energy.
Solar Input Capability of the Sunsynk Powerlynk XL
The Sunsynk Powerlynk XL supports up to 6,800W of solar PV input with a wide MPPT voltage range from 120V to 450V. This allows flexible solar array design and efficient energy harvesting throughout the day.
A maximum DC input voltage of 500V enables compatibility with modern high-voltage solar panel strings.
Power Output and Backup Performance of the Sunsynk Powerlynk XL
The Sunsynk Powerlynk XL delivers up to 5,500W of AC output power at 230V, making it suitable for powering essential household or business loads. A fast shift time of approximately 10 milliseconds ensures smooth transition between grid, battery, and inverter operation.
Pure sine wave output with total harmonic distortion below 3% ensures safe operation of sensitive electronic equipment.
Monitoring, Scalability and Installation Features
The Sunsynk Powerlynk XL supports smart monitoring through compatible Sunsynk monitoring platforms, providing visibility into solar production, battery status, and system performance. Communication interfaces include RS485, CAN, and optional Wi-Fi connectivity.
The system is scalable and can be paralleled with up to six Powerlynk XL units, allowing additional power and storage capacity as energy needs grow. Professional installation by a certified electrician is required to ensure warranty compliance and safe operation.
Sunsynk Powerlynk XL Technical Specifications
Battery Specifications
- Battery type: Lithium iron phosphate (LiFePO₄)
- Battery capacity: 5.22 kWh
- Battery voltage range: 42 – 58 V
- Nominal battery voltage: 51.2 V
- Depth of discharge: 100%
- Charge / discharge rate: 1C
Solar (PV) Input Specifications
- Maximum PV input power: 6,800 W
- Maximum DC input voltage: 500 V
- MPPT voltage range: 120 – 450 V
- Start-up voltage: 150 V
- Maximum PV input current: 16 A (total of two MC4 inputs combined)
AC Output Specifications
- Maximum output power: 5,500 W
- Maximum apparent output power: 5,500 VA
- Peak apparent power: 11,000 VA
- Nominal output voltage: 230 Vac
- Nominal output frequency: 50 Hz
- Output current: 24 A
- Shift time (bypass to inverter): 10 ms
- Total harmonic distortion: <3%
Physical and Environmental Specifications
- Dimensions (H × W × D): 901 × 624 × 182 mm
- Weight: 82 kg
- Cooling method: Fan cooling
- Operating temperature range: −25°C to +60°C
- Protection rating: IP65
- Installation style: Wall-mounted
FAQ
Frequently Asked Questions About the Sunsynk Powerlynk XL All-In-One ESS
What exactly is the Sunsynk Powerlynk XL?
The Sunsynk Powerlynk XL is an all-in-one energy storage system that combines a 5.5kW hybrid inverter and a built-in 5.22kWh lithium iron phosphate battery into a single enclosure. It is designed to simplify installation and reduce system complexity compared to traditional inverter-and-battery setups.
Who is the Sunsynk Powerlynk XL best suited for?
The Powerlynk XL is best suited for residential homes and small commercial properties that want a clean, compact, and easy-to-install solar and backup solution without designing a full modular hybrid system.
Does the Sunsynk Powerlynk XL support solar panels?
Yes. The Sunsynk Powerlynk XL supports solar panel input and can operate using solar energy, grid power, battery storage, or a combination of all three depending on system configuration.
Can the Sunsynk Powerlynk XL work with a generator?
Yes. The system supports generator input, allowing it to operate alongside a diesel or petrol generator and store excess generator energy in the built-in battery.
Is the battery inside the Sunsynk Powerlynk XL expandable?
The internal battery capacity of each Powerlynk XL unit is fixed at 5.22kWh. However, multiple Powerlynk XL units can be connected in parallel (up to six units) to increase total system capacity and power output.
Can the Sunsynk Powerlynk XL be expanded later?
Yes. The Powerlynk XL is designed to be scalable. Additional units can be added later as energy requirements increase, making it suitable for phased system upgrades.
What type of battery does the Sunsynk Powerlynk XL use?
The system uses a lithium iron phosphate (LiFePO₄) battery, which is known for its safety, thermal stability, long cycle life, and suitability for daily charge and discharge use.
Is the Sunsynk Powerlynk XL suitable for outdoor installation?
Yes. The Sunsynk Powerlynk XL has an IP65-rated enclosure, making it suitable for outdoor installation when mounted correctly and protected from direct exposure to extreme weather conditions.
How much power can the Sunsynk Powerlynk XL supply?
The system can supply up to 5.5kW of continuous AC power, which is suitable for essential household or small business loads. Actual performance depends on load demand and system configuration.
Can the Sunsynk Powerlynk XL run an entire house?
It can power many household circuits, but whether it can run an entire home depends on total load demand, appliance usage, and battery capacity. Load planning is recommended for optimal performance.
How is the Sunsynk Powerlynk XL monitored?
The system supports monitoring via compatible Sunsynk monitoring platforms, providing visibility into solar generation, battery status, and energy usage through communication interfaces such as RS485, CAN, and optional Wi-Fi.
Is professional installation required for the Sunsynk Powerlynk XL?
Yes. Professional installation by a certified electrician is required to ensure safe operation, correct configuration, and warranty compliance.
What makes the Sunsynk Powerlynk XL different from a normal hybrid inverter?
Unlike a standard hybrid inverter, the Powerlynk XL includes a built-in battery, reducing installation time, cabling complexity, and system design requirements. It is designed as a compact energy storage solution rather than a modular system.
