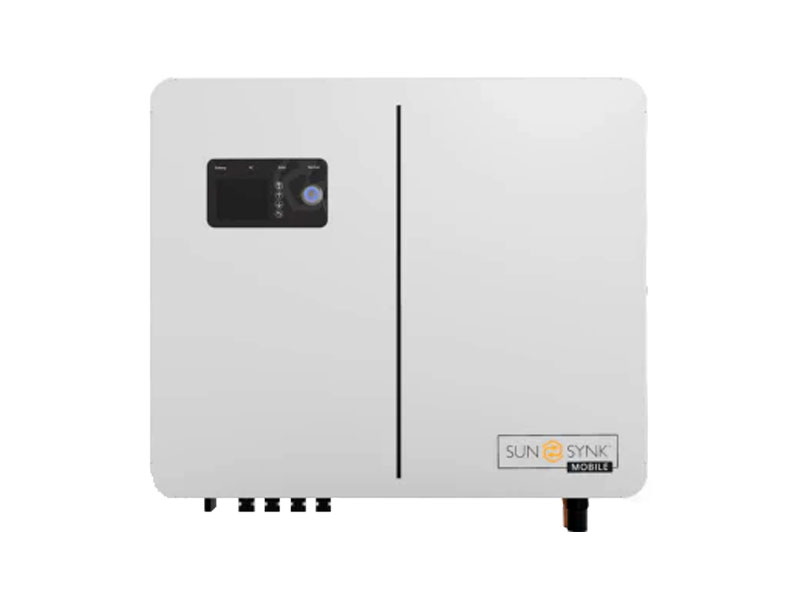

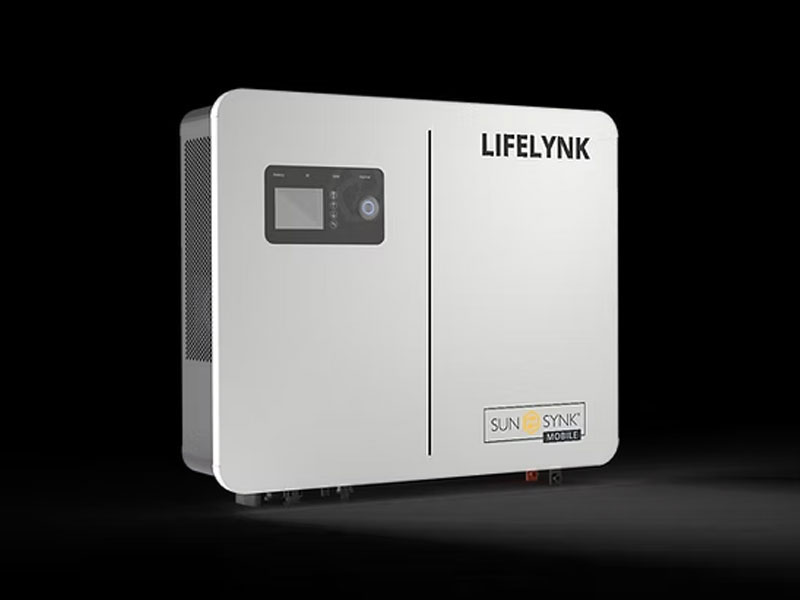

SunSynk Lynks 8kW Hybrid Inverter overview

The SunSynk Lynks 8kW Hybrid Inverter forms part of the Lynks Series IP41 second-generation hybrid inverter range. It is designed to deliver flexible energy management, efficient solar harvesting, and dependable backup power without requiring integrated battery storage.

Built around a 48 V low-voltage battery platform, the inverter produces clean pure sine wave output, making it suitable for household appliances, office equipment, and sensitive electronics.

How the SunSynk Lynks 8kW hybrid inverter works

The SunSynk Lynks 8kW hybrid inverter intelligently manages power from multiple energy sources:

• Solar PV during daylight hours

• Battery storage for backup and energy shifting

• Grid or generator input when required

Solar energy is prioritised to supply loads and charge batteries. When solar production is insufficient, the inverter automatically switches to battery or grid/generator input, ensuring uninterrupted power to essential circuits.

Solar charging and MPPT optimisation

This inverter features dual MPPT channels, allowing independent optimisation of two solar strings. MPPT technology continuously tracks the optimal operating point of the PV array to maximise energy harvest under changing sunlight conditions.

The wide MPPT voltage range allows flexible PV array design and improved performance across different roof orientations.

Battery compatibility and energy storage

The SunSynk Lynks 8kW inverter supports lithium-ion and lead-acid batteries operating on a 48 V nominal battery system. Lithium battery packs communicate with the inverter via BMS, enabling intelligent charging control and system protection.

High configurable charge and discharge current capability allows the inverter to support demanding loads and fast energy transfer.

Backup power and load-shedding performance

During grid outages or load-shedding events, the inverter switches to battery operation with a fast 10 ms transfer time, maintaining power to essential loads with minimal disruption.

With high peak apparent power capability, the SunSynk Lynks 8kW inverter can handle motor start-up currents and other high-inrush appliances.

Typical applications

The SunSynk Lynks 8kW Hybrid Inverter is suitable for:

• Residential homes with solar and battery storage

• Backup power systems for load-shedding

• Medium-size household electrical loads

• Hybrid solar systems with optional generator input

Technical specifications

• Brand: SunSynk

• Model: Lynks 8kW IP41

• Inverter type: Hybrid, single-phase

• Rated output power: 8 000 W

• Maximum apparent output power: 8 000 VA

• Peak apparent output power: 16 000 VA

• Maximum output current: 36 A

Battery input

• Supported battery type: Lithium-ion / Lead-acid

• Nominal battery voltage: 48 V

• Battery voltage range: 40–60 V

• Maximum charge voltage: ≤60 V (configurable)

• Maximum charge current: 150 A (configurable)

• Maximum discharge current: 180 A (configurable)

• Recommended battery capacity: 100–2 000 Ah

PV input

• Maximum DC input power: 10 000 W (5 000 W × 2)

• Maximum DC input voltage: 500 V

• MPPT voltage range: 120–450 V

• Start-up voltage: 150 V

• Maximum input current: 46 A (23 A × 2 MPPT channels)

AC output (backup / essential load)

• Nominal output voltage: 220 / 230 / 240 Vac single-phase (configurable)

• Nominal output frequency: 50 / 60 Hz (configurable)

• Maximum bypass current: 42 A

• Output THDv (resistive load): <3 %

• Transfer time (bypass ↔ inverter): 10 ms

Efficiency

• Maximum efficiency: 97.6 %

• Europe efficiency: 97.6 %

• MPPT efficiency: 99.9 %

General

• Operating temperature: –20 °C to +50 °C (>35 °C derating)

• Protection degree: IP41

• Dimensions (W × H × D): 570 × 525 × 140 mm

• Weight: 24.5 kg

Warranty

• Manufacturer warranty: 5 Years standard

• Extended warranty: Extendable to 10 Years when paired with compatible SunSynk batteries (terms and conditions apply)
