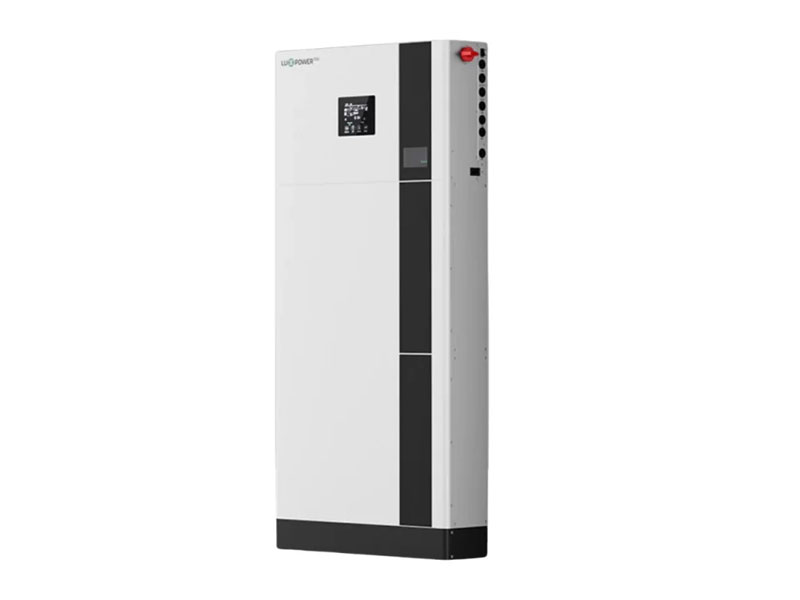

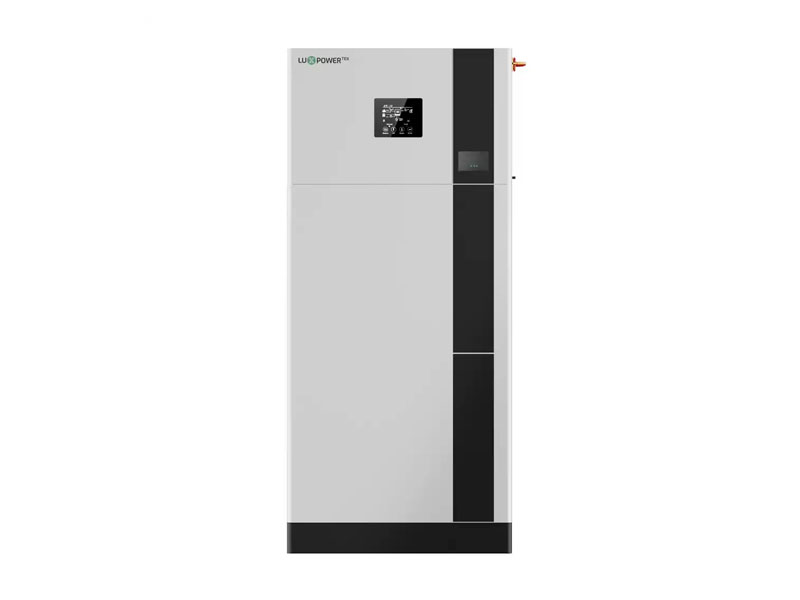

Luxpower Eco Beast 6kW + 5.12kWh All in One

The Luxpower Eco Beast 6kW + 5.12kWh AIO is a complete, compact backup and solar solution designed for South Africa’s loadshedding conditions. This all-in-one hybrid unit combines a powerful 6kW Luxpower inverter with a 51.2V 5.12kWh lithium battery, providing reliable power, fast changeover, smart monitoring, and seamless solar integration.

Perfect for homes and small businesses needing silent, fast and dependable backup power, the Eco Beast is engineered for true plug-and-play installation with advanced protection and excellent efficiency.

Why Choose the Luxpower Eco Beast AIO?

✔ All-in-One Compact System

Inverter + battery + BMS + monitoring — all built into one sleek unit. No wiring clutter, no complex setup.

✔ Built for Loadshedding

Fast automatic switchover (typically under 10ms) keeps your lights, Wi-Fi, computers and appliances running without interruption.

✔ High-Performance 6kW Inverter

• Pure sine wave output

• Up to 8000W PV input

• 2 × MPPT for efficient solar harvest

• Works for both on-grid and off-grid setups

• Supports generators and AC charging

✔ 5.12kWh LFP Lithium Battery

• Long-life LiFePO4 chemistry

• 100A charge/discharge capacity

• Parallel-ready (up to 2 batteries)

• Safe, stable and certified (UN38.3 & CE)

✔ Expandable & Future-Proof

Support up to 16 inverters in parallel for large homes or small businesses.

✔ Remote Monitoring

Wi-Fi, RS485 and CAN communications included for full visibility using Luxpower’s app.

✔ Safe & Certified

Over-voltage, under-voltage, over-current, over-temperature and short-circuit protection included.
Certified under NRS097, CE, UN38.3.

Key Specifications

🔋 Battery Module (5.12kWh)

• Capacity: 5.12kWh

• Nominal Voltage: 51.2V

• Capacity: 100Ah

• Battery Type: Lithium-ion (LFP)

• Max Parallel: 2 units

• Max Charge/Discharge Current: 100A

• Dimensions: 580 × 434 × 165 mm

• Net Weight: 54 kg

• Certifications: UN38.3, CE

🟩 6kW Inverter Module (XBP6000)

• Rated Output Power: 6000W

• Surge Power: 2 × rated (5 seconds)

• PV Input: 8000W (2 MPPT)

• MPPT Voltage Range: 120–385V

• Efficiency: 93%

• Switching Time: <10ms

• AC Input: 230V ±5%, 50/60Hz

• Generator Support: Yes

• UPS-grade output: Pure Sine Wave

• Parallel: Up to 16 units

• Cooling: Smart cooling

• Dimensions: 580 × 1300 × 165 mm

• Ingress Rating: IP20

• Monitoring: LCD + LED + Wi-Fi/RS485/CAN

🏡 Ideal For

• Homes needing silent, reliable backup for loadshedding

• Small businesses, offices, shops, workshops

• Solar-ready installations

• Clients wanting a clean, compact, wall-mounted solution

• Those wanting future expandability with more batteries or inverters

📦 What’s Included

• 1 × Luxpower Eco Beast 6kW Inverter Module

• 1 × 5.12kWh Lithium Battery Module

• Built-in BMS

• Wall-mount frame

• Communication cables

• User manual

• Wi-Fi monitoring

⚠️ Optional Add-Ons (Not Included)

• Solar panels (mono / bifacial)

• AC & DC protection boxes

• AC isolators

• PV mounting kits

• Cabling (AC, DC, earthing)

• Professional installation & CoC (Enerlux provides installation services)
