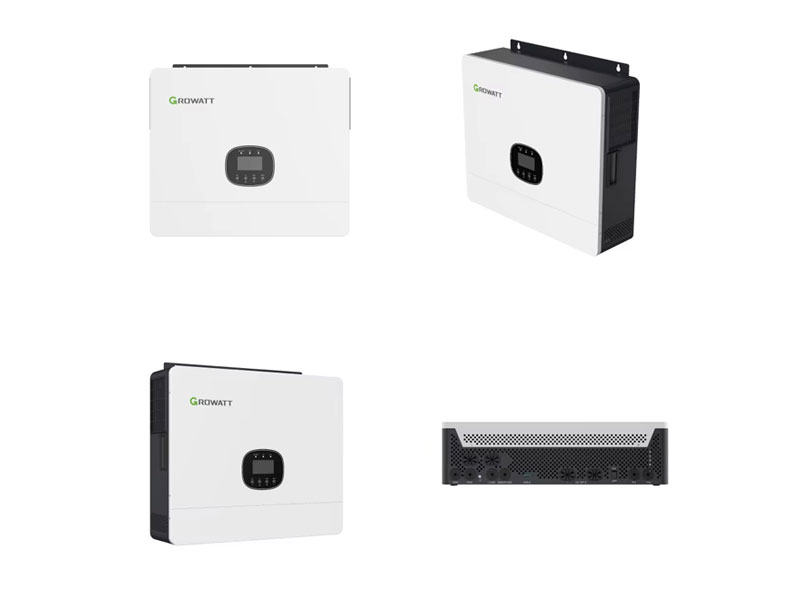

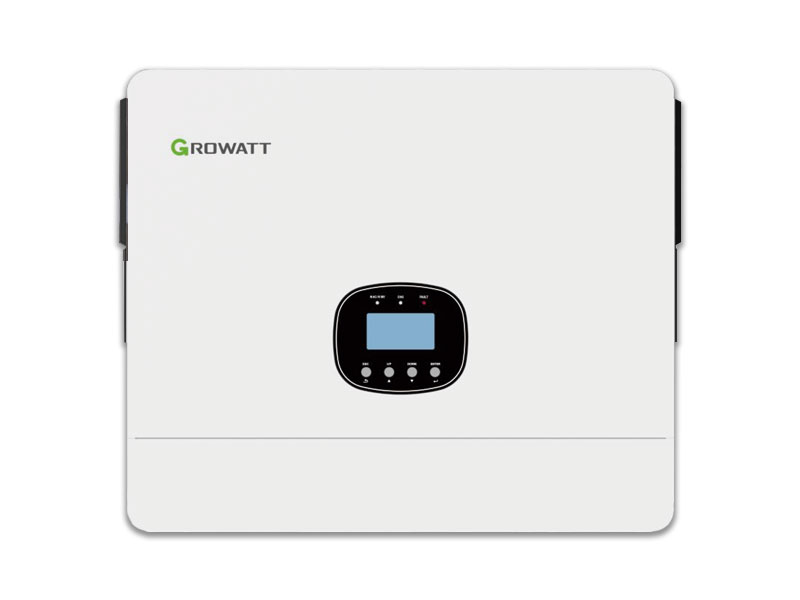

Growatt 10kW Hybrid Solar Inverter

The Growatt 10kW Hybrid Solar Inverter is a powerful energy management solution designed for residential, agricultural and commercial solar installations. Combining advanced hybrid inverter technology, dual MPPT tracking, battery storage integration and backup power functionality, this inverter provides reliable energy management for modern solar systems.

Designed around a 48V battery platform, the inverter supports both lithium and lead-acid battery technologies while offering intelligent load management, peak shaving functionality and seamless backup power operation.

Powerful 10kW Hybrid Inverter Performance

With a continuous AC output of 10kW, this inverter is suitable for larger residential properties, farms, offices and commercial installations requiring dependable energy management and backup power capabilities.

• 10kW continuous output power
• 10kVA apparent power rating
• Single-phase operation
• Suitable for demanding energy requirements
• Ideal for hybrid solar installations

Dual MPPT Solar Tracking

The Growatt 10kW Hybrid Inverter features dual MPPT technology, allowing solar panels to be installed across different roof orientations while maximising solar production throughout the day.

• Dual MPPT trackers
• Maximum PV input voltage of 550V
• Wide MPPT operating range
• Improved solar harvesting efficiency
• Optimised system performance

Advanced Battery Integration

The inverter supports both lithium and lead-acid battery technologies, providing flexibility when designing solar energy storage systems.

• 48V battery architecture
• Lithium battery compatible
• Lead-acid battery compatible
• High charging performance
• High discharge capability

Backup Power Functionality

During grid failures, the inverter automatically switches to battery operation to maintain power to essential loads. Fast transfer times help minimise disruptions to connected equipment.

• Integrated backup power output
• Fast automatic switching
• Essential load support
• Reliable power continuity

Peak Shaving and Smart Energy Management

The inverter includes grid-tied functionality with peak shaving support, helping reduce grid demand during high consumption periods and improving energy efficiency.

• Peak shaving functionality
• Smart load management
• Reduced grid dependence
• Improved energy utilisation

Expandable System Design

For larger projects, multiple units can be installed in parallel, allowing system expansion as energy requirements grow.

• Parallel operation support
• Scalable system architecture
• Suitable for commercial expansion
• Flexible installation options

Monitoring and Connectivity

The Growatt inverter supports modern monitoring solutions, allowing system owners to track energy production, battery status and system performance.

• WiFi monitoring support
• 4G monitoring compatibility
• Remote system management
• Real-time performance tracking

Technical Specifications

• Rated Power: 10kW
• Maximum Recommended PV Power: 12.5kW
• Maximum PV Voltage: 550V
• MPPT Voltage Range: 60V – 480V
• MPPT Quantity: 2
• Maximum Input Current Per MPPT: 27A
• Battery Voltage: 48V
• Battery Compatibility: Lithium / Lead-Acid
• Maximum Charge Current: 220A
• Maximum Discharge Current: 240A
• Maximum Efficiency: 96.5%
• European Efficiency: 95.5%
• Output Voltage: 230V
• Frequency: 50/60Hz
• Protection Rating: IP20
• Dimensions: 550 × 465 × 150mm
• Weight: 21.5kg

Warranty and Installation

This inverter should be installed by a qualified solar installer or electrician in accordance with local electrical regulations and manufacturer requirements.
