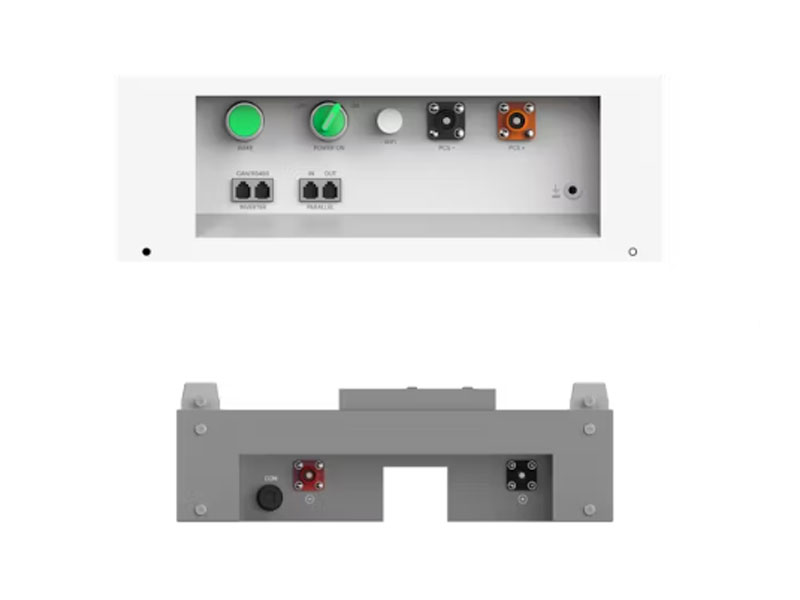

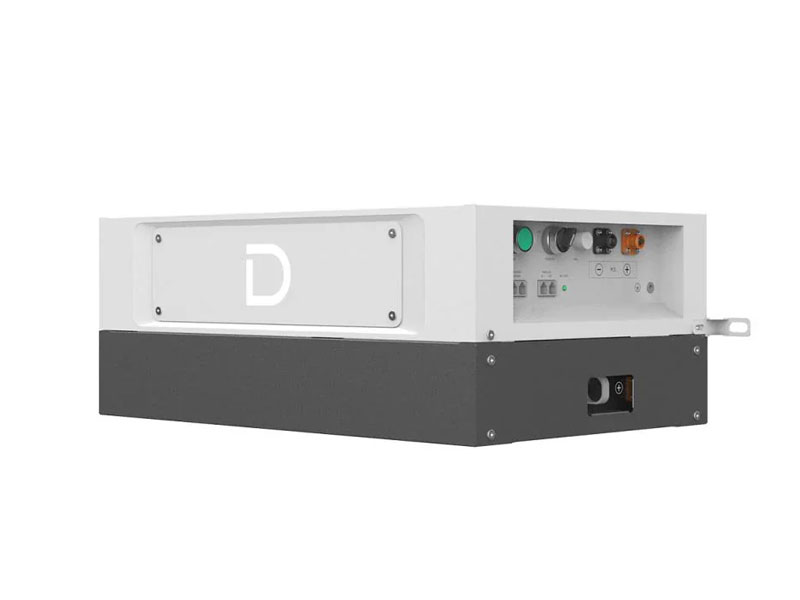

Dyness BDU100 HV Battery Control Unit Overview
The Dyness BDU100 HV Battery Control Unit is the intelligent battery management and control module designed specifically for the Dyness Stack100 high-voltage lithium battery system. This unit acts as the central communication and protection interface between the Stack100 battery modules and compatible hybrid inverters.
The BDU100 is an essential component required for the operation of Dyness S51100 high-voltage battery modules and forms the foundation of the complete Stack100 energy storage platform.
What Does the Dyness BDU100 Do?
The BDU100 functions as the main battery control and communication unit for the Dyness Stack100 system. It manages communication between the battery modules and inverter while monitoring voltage, current, temperature, charging, discharging, and system safety.
Without the BDU100 control unit, the Dyness Stack100 battery modules cannot operate correctly as a complete high-voltage battery system.
- Battery communication management
- High-voltage battery system control
- Battery protection and monitoring
- System communication with compatible inverters
- Battery balancing and system coordination
Designed for Dyness Stack100 Battery Systems
The Dyness BDU100 is specifically engineered for use with the Dyness Stack100 high-voltage battery platform and Dyness S51100 battery modules.
The modular architecture allows installers to build scalable energy storage systems suitable for residential, commercial, and industrial applications.
- Compatible with Dyness S51100 battery modules
- Supports Stack100 HV battery systems
- Required for system commissioning and operation
- Designed for scalable HV energy storage systems
High-Voltage Battery System Control
The BDU100 is designed to operate within the Stack100 system voltage range and coordinate safe operation across multiple battery modules.
- Operating Voltage Range: 134.4V – 864V
- Maximum Continuous Current: 100A
- Supports high-voltage battery clusters
- Designed for residential and commercial ESS applications
Smart Communication and Monitoring
The Dyness BDU100 supports intelligent communication protocols for seamless integration with supported hybrid inverters and monitoring platforms.
- CAN communication support
- RS485 communication support
- WiFi and APP monitoring support
- Real-time battery monitoring and diagnostics
The intelligent monitoring system helps ensure proper battery performance, charging behaviour, and safe operation across the complete battery stack.
Built-In Safety and Protection
The Dyness Stack100 platform is designed with advanced safety systems for high-voltage battery operation.
- Integrated Battery Management System support
- Battery protection coordination
- Automatic battery equalization
- System fault monitoring
- Compatible with built-in aerosol fire extinguishing systems
Easy Plug-and-Play Installation
The Dyness Stack100 platform uses a cable-free modular stacking architecture designed to simplify installation and future expansion.
- Plug-and-play integration
- Cable-free stacking design
- Fast installation process
- Compact modular architecture
The BDU100 installs directly within the Stack100 battery structure and forms part of the complete stack-mounted energy storage solution.
Expandable Commercial and Residential Energy Storage
The Stack100 system supports scalable energy storage configurations for both residential and commercial projects.
- Supports up to 15 battery modules per cluster
- Supports up to 12 clusters in parallel
- Maximum system expansion up to 921kWh
- Suitable for residential, commercial, and industrial systems
Technical Specifications
- Model: BDU100
- Product Type: HV Battery Control Unit
- Compatible Battery Platform: Dyness Stack100
- Compatible Battery Module: Dyness S51100
- Operating Voltage Range: 134.4V – 864V
- Maximum Continuous Current: 100A
- Communication: CAN / RS485
- User Interface: WiFi + APP
- Protection Rating: IP20
- Installation Type: Stack Mounted
- Dimensions: 590 × 390 × 133 mm
- Weight: 15.3kg
Compatible Inverters
The Dyness Stack100 system with the BDU100 control unit is compatible with a range of leading inverter brands including:
- Deye
- Sunsynk
- Solis
- Goodwe
- Growatt
- Kostal
- Solplanet
Applications
The Dyness BDU100 HV battery control unit is suitable for:
- Residential solar battery systems
- Commercial energy storage systems
- Hybrid inverter installations
- Off-grid solar systems
- Expandable high-voltage ESS projects
Important Installation Notice
The Dyness BDU100 is designed specifically for Dyness Stack100 high-voltage battery systems and must only be installed by qualified solar and electrical professionals experienced with high-voltage lithium battery systems.
Correct commissioning, communication setup, battery configuration, and inverter integration are essential for proper system operation and safety.
