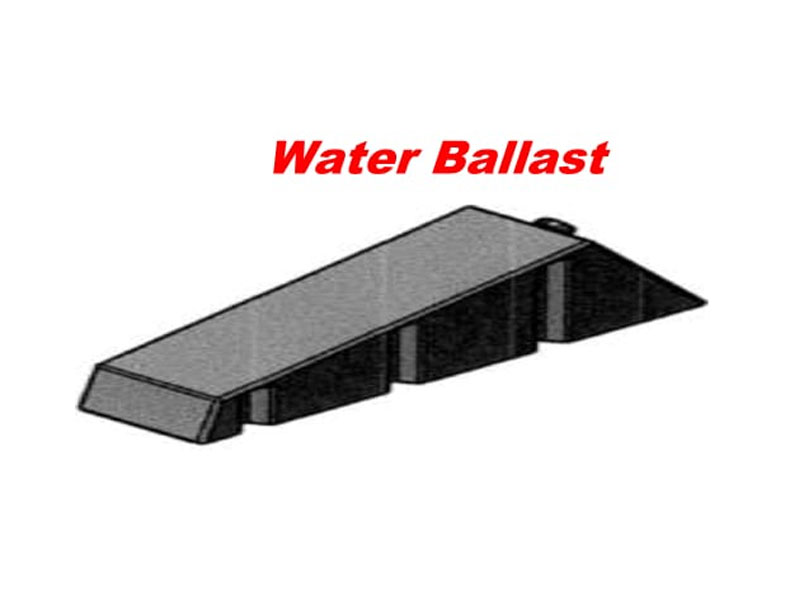

Ballast Mounting Base for Solar Panel Systems

Unlock the potential of your rooftop with our innovative Ballast Mounting Base, designed specifically for secure and efficient solar panel installation on flat roofs. Proudly produced in South Africa, this product combines durability with ease of installation.

General Specifications:

• Material: High-quality LDPE, roto-molded in one piece to ensure seamless integrity.
• Capacity: Features a filling cap with a 70-liter ballast volume, providing stable and reliable support for your solar panels.
• Included Accessories: It comes with four clamps complete with nuts and bolts, ready for immediate installation.
• Design: Lightweight and easy to handle, our ballast bases are designed to maintain roof waterproofing while supporting standard PV module mounting rails.

Installation Guide:

• Simple Setup: Designed for use with light rails, one tank can be positioned between each module or more, depending on requirements.
• Leakage Testing: Every tank is rigorously tested for leaks to ensure quality and durability.

Design Data:

• Dimensions: 280 mm (H) x 1116 mm (L) x 378 mm (W)
• Tilt: 15 degrees, optimal for capturing sunlight.
• Weight: 5 kg when empty and 70 kg when filled with water.
• Angle of Tilt: It is designed with a 15-degree tilt for optimal solar exposure.
• PV Orientation: Landscape orientation
• Measurement from top rail to bottom rail is 65.5 cm

Warranty:

• 10-Year Protection: We stand behind our product with a decade-long warranty covering material and manufacturing faults from the delivery date.

Ideal for South African Conditions: Designed and manufactured locally, this ballast mounting base is perfectly suited to the South African climate and installation standards. It’s the ideal choice for businesses and homeowners looking to invest in sustainable energy solutions without compromising on quality.

Transform your flat rooftop into a power generator with Enerlux’ Ballast Mounting Base — where functionality meets innovation.

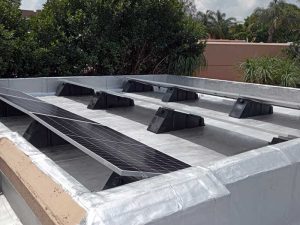

Installation Guidelines for Solar Panels:

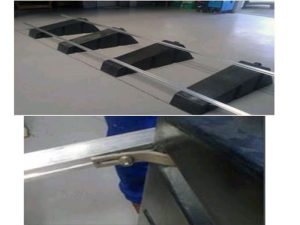

Solar panels should be set up in a landscape format for optimal fit and efficiency. The mount supports the use of 4.8m long rails, which can either be utilized as full-length pieces or segmented into 400mm sections. These sections can then be strategically placed across each ballast to secure mid-clamps, end-clamps, and the solar panels themselves.

Opting for 400mm rail pieces involves positioning two segments atop each ballast, both at the upper and lower ends. This approach can significantly reduce costs associated with using full-length rails. However, it’s important to note that this configuration is merely a recommendation. The ultimate layout and installation method are at the discretion of the solar panel installer, allowing for flexibility based on specific project needs or preferences.
