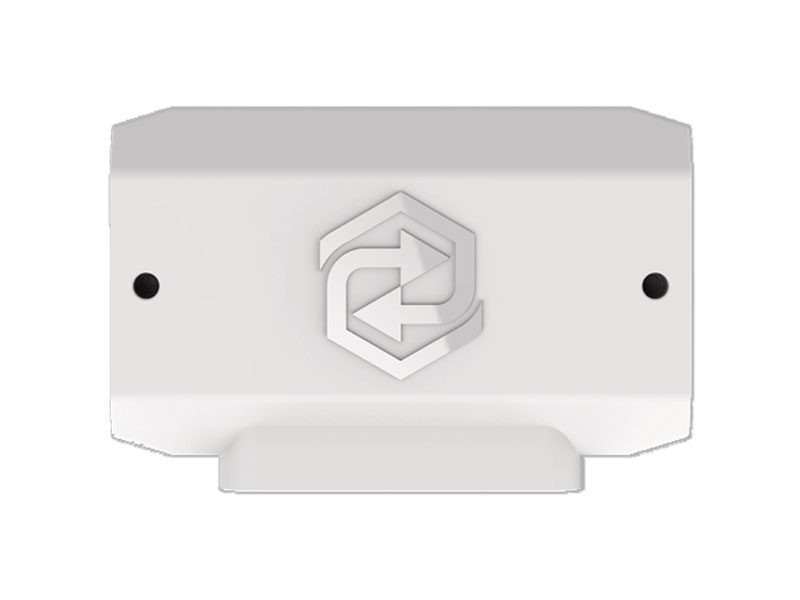

Sunsynk Busbar 800A

Sunsynk Busbar | SUNSYNK-BB-300

Description

The Sunsynk Busbar (SUNSYNK-BB-300) is a critical component for electrical distribution, ensuring a stable and efficient flow of electricity between key system elements such as circuit breakers, transformers, and electrical panels.

Designed for high-performance energy systems, this heavy-duty busbar features positive and negative terminals, along with four connection points for batteries, loads, or chargers, plus a ground connection for enhanced safety. Its expandable capacity allows for seamless scalability by connecting multiple busbars, making it ideal for growing energy systems.

The robust ABS outer casing provides long-lasting durability, while the tinned copper busbar ensures high conductivity and corrosion resistance.

Key Features

✅ Efficient Electrical Distribution – Conducts electricity between circuit breakers, transformers, and panels.

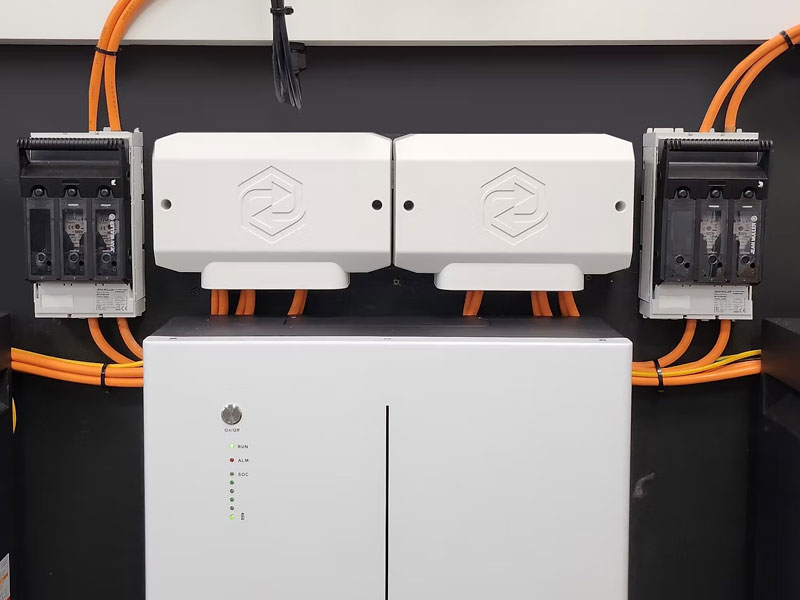

✅ Scalable & Expandable – Connect multiple busbars to increase capacity as needed.
✅ Durable Construction – ABS enclosure for long-lasting protection.
✅ High Conductivity – Tinned copper busbar (8mm x 30mm) for optimal power transfer.

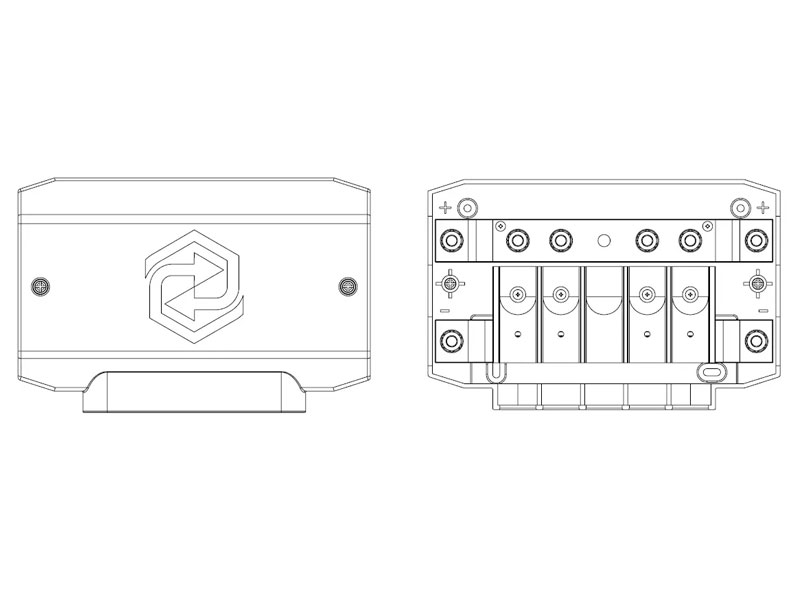

✅ Versatile Connectivity – Four connection points for batteries, loads, or chargers, plus a ground connection.
✅ Reliable Performance – Supports high-current applications with a maximum rating of 800A.
✅ Ingress Protection (IP22) – Designed to withstand everyday electrical environments.

Specifications

Voltage Range: 9-60V DC
Current Rating: 800A
Material: Tinned Copper Busbar enclosed in ABS casing
Connections: Four terminals + ground connection
Ingress Protection: IP22
Dimensions: 165mm (H) x 245mm (W) x 75mm (D)
Weight: 1.8kg

Weight	1.8 kg
Dimensions	16.5 × 24.5 × 7.5 cm
Brand:	Sunsynk
Product Type:	Battery Busbar
Color:	White
Weight:	1.8kg
Dimensions:	165mm (H) x 245mm (W) x 75mm (D)
