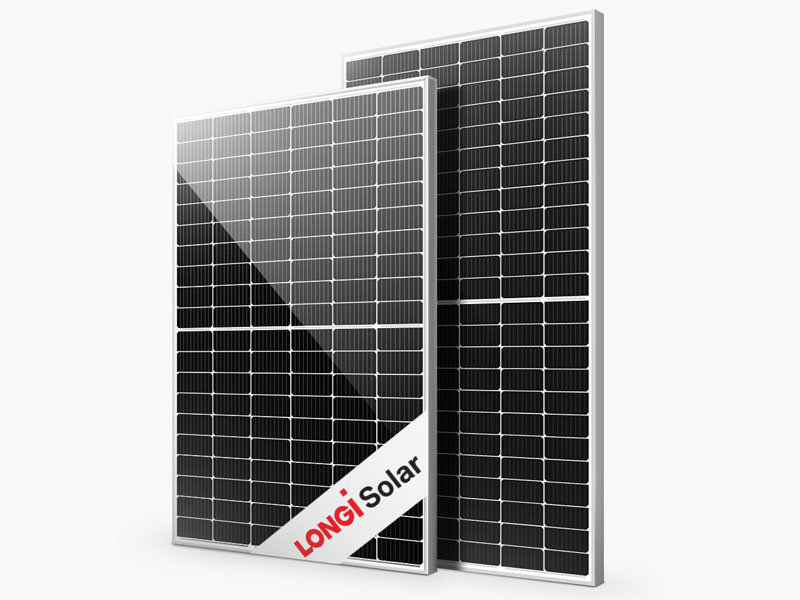

Longi 545Watt Solar Panel

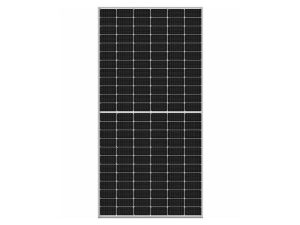

Longi 545W LR5-72HPH 545 Solar Panel

Longi 545W LR5-72HPH 545 is a monocrystalline solar panel that is ideal for self-consumption and industrial solar installations. Modules of high quality and resistance, made of polycrystalline silicon with an anodized aluminum frame.

The Longi 545W LR5-72HPH 545 solar panels can be combined with state-of-the-art lithium batteries, as well as traditional lead-acid and GEL/AGM batteries with their corresponding charge regulator. In Suministros del Sol we offer solar panels of recognized worldwide prestige as well as in all its components, so much in its solar inverters, solar panels, regulators of load, and batteries for solar installations.

Longi Mono Perc 545W Mono-Crystalline Solar Module -LR5-72HPH-545M,1500V(IEC/UL),144 cells
Voc 49.65V
Isc 13.92Amp
Imp 13.04Amp
Vmp 41.80V
Efficiency 21.3%, Dimension 2256x1133x35mm, weight 27.2kg
Operating temperature -40degree to +85degree
Temperature coefficient of Isc +0.048%
Temperature coefficient of Voc -0.270%
Temperature coefficient of Pmax -0.350%
Front side maximum static loading 5400Pa
Rear side maximum static loading 2400Pa
IP 68 junction box
31pc/Pallet,620pcs/40ft HQ Container

Characteristics of the solar panel Longi 545W LR5-72HPH 545

Solar cell 9 bus bar

The 9 bus bar solar cell adopts a new technology to improve the efficiency of the modules, offering a better aesthetic appearance, which is perfect for installation on roofs.

High efficiency

High module conversion efficiency (up to 20.56%) thanks to new production technology.

Avoid crack risks effectively

9BB technology uses a round wire ribbon that can avoid crack risks effectively.

Weight	27.2 kg
