Overview

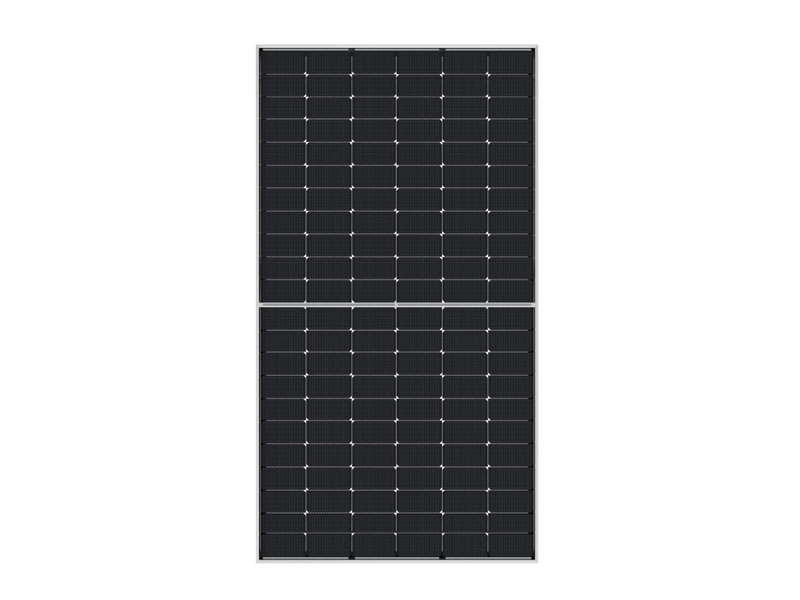

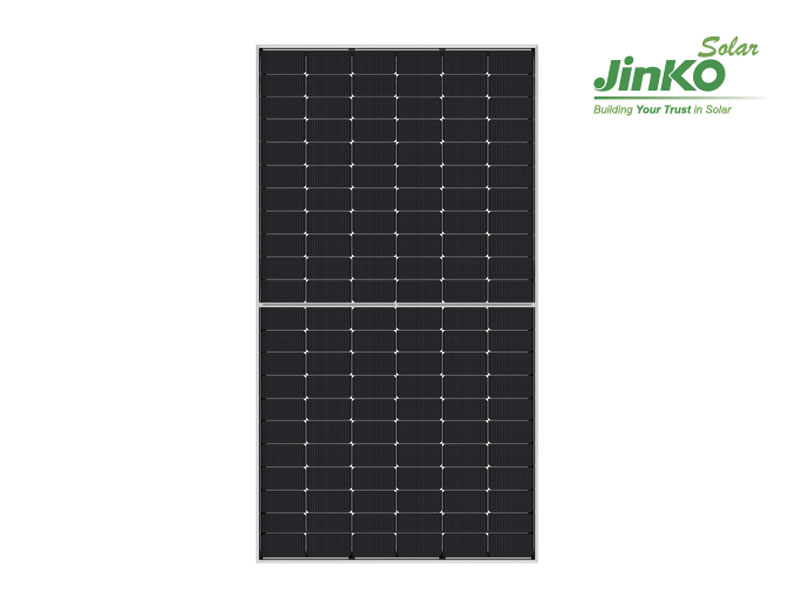

The Jinko JKM610N-66HL4M-BDV is part of the Tiger Neo N-Type series, offering high-efficiency bifacial dual-glass technology for superior energy generation. With its N-Type cells, HOT 2.0 technology, and anti-PID performance, this panel delivers stable, long-term output with a 30-year linear power warranty.

Ideal for roof-top and ground-mount installations requiring maximum power density and exceptional reliability.

Key Features

• N-Type Mono-crystalline Technology for higher efficiency and lower degradation

• Bifacial Dual-Glass Design for additional rear-side energy gain

• HOT 2.0 Technology improving reliability and reducing LID/LETID

• SMBB (Super-Multi-Busbar) for better current collection

• Higher Power Output up to 610W

• Excellent PID Resistance

• Enhanced Mechanical Strength (2400 Pa wind / 5400 Pa snow load)

• Low Annual Degradation (0.40%)

• 12-Year Product Warranty & 30-Year Linear Power Warranty

Technical Specifications

Electrical Performance (610W Model)

Maximum Power (Pmax): 610W
Module Efficiency: 22.40%
Maximum Power Voltage (Vmp): 40.46V
Maximum Power Current (Imp): 15.08A
Open-Circuit Voltage (Voc): 48.68V
Short-Circuit Current (Isc): 15.90A

NOCT Electrical Performance

Pmax (NOCT): 461W
Vmp (NOCT): 37.76V
Imp (NOCT): 12.15A
Voc (NOCT): 46.24V
Isc (NOCT): 12.88A

Mechanical Characteristics

Cell Type: N-Type Mono-crystalline
Number of Cells: 132 (2×66)
Dimensions: 2382 × 1134 × 30 mm
Weight: 32.4 kg
Front Glass: 2.0mm ARC coated
Back Glass: 2.0mm heat-strengthened glass
Frame: Anodised aluminium
Junction Box: IP68 rated
Output Cables: 1×4mm² (400mm positive / 200mm negative or customised)

Environmental & Ratings

Operating Temperature: −40°C to +85°C
Maximum System Voltage: 1500V DC
Maximum Series Fuse Rating: 35A
Power Tolerance: 0 ~ +3%
Temperature Coefficient (Pmax): −0.29% / °C
Temperature Coefficient (Voc): −0.25% / °C
Temperature Coefficient (Isc): +0.04% / °C
Nominal Operating Cell Temperature (NOCT): 45 ±2°C
Bifacial Factor: 80 ±5%
