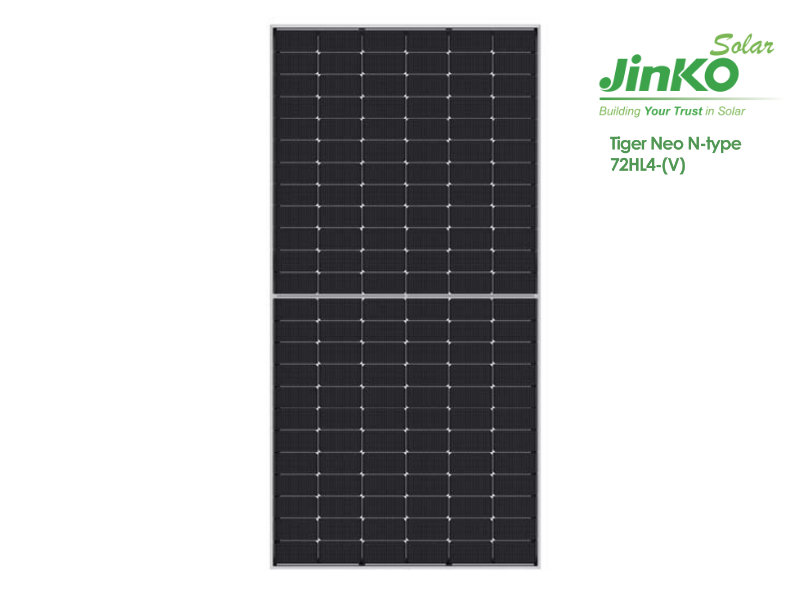

Jinko 575 Watt Tiger Neo N-type Solar Panel

Jinko Tiger Neo N-type 72HL4-(V) 575 Watt mono-facial solar panel module

IEC61215(2016), IEC61730(2016)
ISO9001:2015: Quality Management System
ISO14001:2015: Environment Management System
ISO45001:2018 Occupational health and safety management systems

Jinko 575 Watt Tiger Neo N-type Solar Panel features:

SMBB Technology
Better light trapping and current collection to improve module power output and reliability.
Hot 2.0 Technology
The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.
PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance.

Jinko 575 Watt Tiger Neo N-type Solar Panel warranty:

12-Year Product Warranty
30-Year Linear Power Warranty
0.40% Annual Degradation Over 30 years

Weight	28 kg
Cell Type	N type Mono-crystalline
No. of cells	144 (6×24)
Dimensions	2278×1134×35mm (89.69×44.65×1.38 inch)
Weight	28 kg (61.73 lbs)
Front Glass	3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68 Rated
Output Cables	TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length
Maximum Power (Pmax)	575Wp
Maximum Power Voltage (Vmp)	42.22V
Maximum Power Current (Imp)	13.62A
Open-circuit Voltage (Voc)	50.88V
Short-circuit Current (Isc)	14.39A
Module Efficiency STC (%)	22.26%
Operating Temperature(℃)	-40℃~+85℃
Maximum system voltage	1000/1500VDC (IEC)
Maximum series fuse rating	25A
Power tolerance	0~+3%
Temperature coefficients of Pmax	-0.30%/℃
Temperature coefficients of Voc	-0.25%/℃
Temperature coefficients of Isc	0.046%/℃
Nominal operating cell temperature (NOCT)	45±2℃
