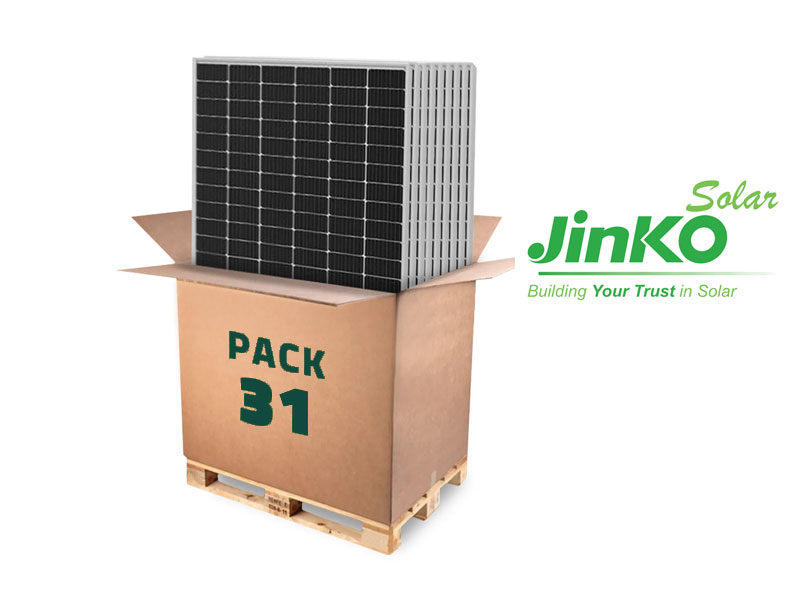

Jinko 555 Watt Mono Solar Panel Pallet of 31

JinKo 555W 144 Cell Tiger Pro 72HC Mono-Facial Module Solar Panel
Model JKM-555M-72HL4-V
Mono-Facial Module.
555W Solar Panel.
Equipped with 144 Cells.
Equipped with an Anodized Aluminium Alloy Frame.
Enjoy Positive Power Tolerance of 0 to 3%
Multi Busbar Technology – better light trapping & current collection to improve module power output & reliability.
Reduced Hot Spot Loss – better temperature coefficient.
Longer Life-Time Power Yield.
Resistance against high salt mist & ammonia.
Cell Type: P Type Mono-Crystalline.
Junction Box: IP68
Withstands high wind loads (2400pa)
Maximum Power: 555W (STC) & 413W (NOCT)
Maximum Voltage: 40.99V (STC) & 38.59V (NOCT)
Maximum Current: 13.54A (STC) & 10.70A (NOCT)
Open-Circuit Voltage: 49.72V (STC) & 46.93V (NOCT)
Short-Circuit Current: 14.12A (STC) & 11.40A (NOCT)
Module Efficiency STC: 21.48%
Operating Temperature: -40°C to 85°C
Maximum System Voltage: 1000/1500VDC (IEC)
Maximum Series Fuse: 25A
Weight: 28.9Kg
Dimensions (L x W x D): 2278 x 1134 x 35 mm
Refer To Brochure For Detailed Product Specification.
Mounting Kits & Accessories Not Included – Sold Separately.
12-Year Limited Product Warranty. T & C’s Apply

Cell Type	P type Mono-crystalline
No. of cells	144 (6×24)
Dimensions	2278×1134×35mm (89.69×44.65×1.38 inch)
Weight	28 kg (61.73 lbs)
Front Glass	3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68 Rated
Output Cables	TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length
