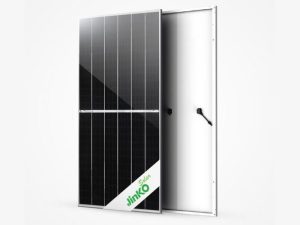

Jinko 545Watt Mono Solar Panel

R4 057.87 Incl. VAT

36 people are viewing this product right now
Jinko: 545W Solar Panel Mono Crystalline Half Cell (JKM545M-72HL4-V)
Please, activate Compare option to use this widget.
Categories:

Jinko 545Watt Mono Solar Panel

General Data
• Model No: JKM545M-72HL4-V
• Cell: Half Cell, Mono Crystalline
• No. of Cells: 144(6×24)
• Glass: Single Glass 3.2mm AR Coated Tempered
• Junction Box: IP68
• Connector: MC4

Electrical Parameters at STC
• Maximum Rated Power(Pmax): 545W
• Maximum Power Voltage(Vmp): 40.80VDC
• Maximum Power Current(Imp): 13.36A
• Open Circuit Voltage(Voc): 49.52VDC
• Short Circuit Current(Isc): 13.94A
• Module Efficiency: 21.10%

Operating Conditions
• Maximum System Voltage: 1500VDC
• Maximum Series Fuse: 25A
• Operating Temperature: -40°C to 85°C

Safety Ratings
• IEC 61215
• IEC 61730

Weight 28 kg
Model No:

JKM545M-72HL4-V

Cell:

Half Cell, Mono Crystalline

No. of Cells:

144(6×24)

Glass:

Single Glass 3.2mm AR Coated Tempered

Junction Box:

IP68

Connector:

MC4

Maximum Rated Power(Pmax):

545W

Maximum Power Voltage(Vmp):

40.80VDC

Maximum Power Current(Imp):

13.36A

Open Circuit Voltage(Voc):

49.52VDC

Short Circuit Current(Isc):

13.94A

Module Efficiency:

21.10%

Maximum System Voltage:

1500VDC

Maximum Series Fuse:

25A

Operating Temperature:

-40°C to 85°C
