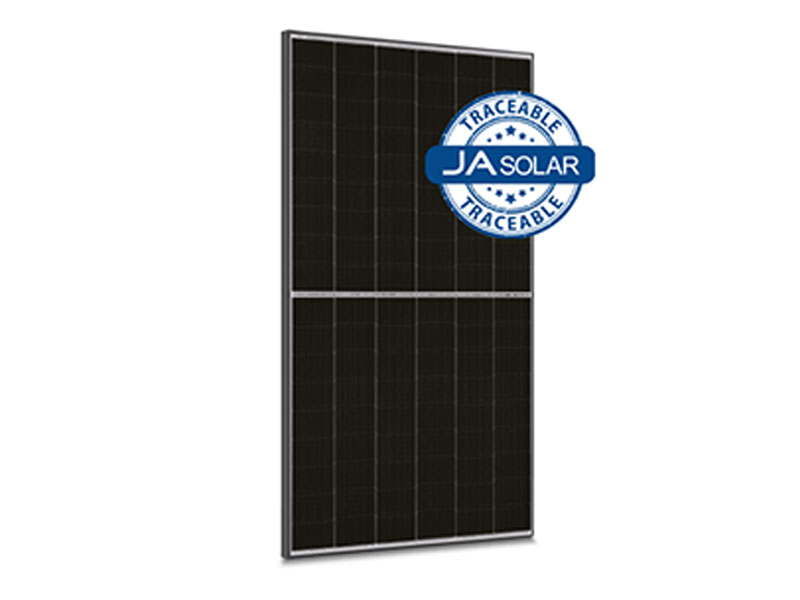

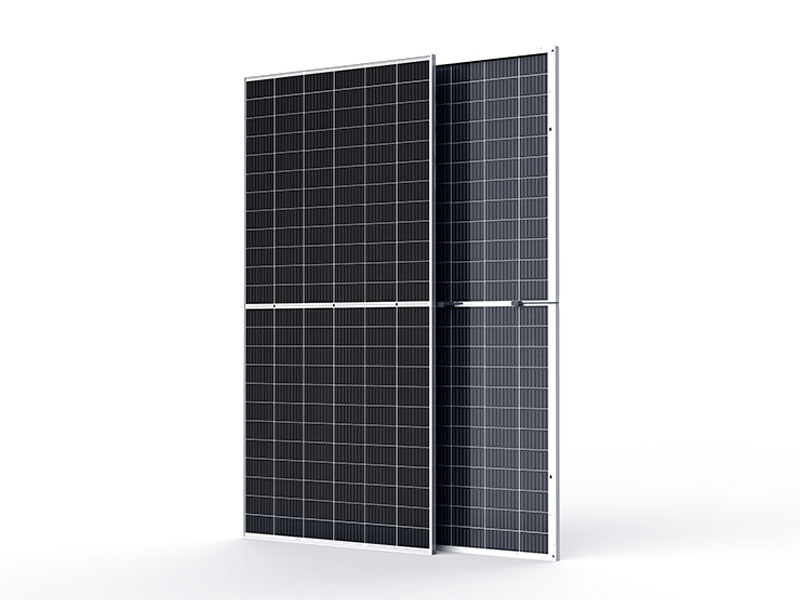

JA Solar 450 Watt Double Glass Bi-Facial N-Type Solar Panel

JA Solar 450W Double Glass Bi-Facial N-Type Solar Panel

Model: JAM54D-40-450-LB-TS-MC4

High-Efficiency Bifacial Module with N-Type Cell Technology

The JA Solar 450W Double Glass Bifacial N-Type Solar Panel is a premium module designed to meet high-performance demands for residential, commercial, and industrial solar installations. With cutting-edge N-type cell technology and a bifacial double-glass design, this panel offers superior durability, output, and efficiency.

Key Features

High Power Output – 450W
Offers outstanding energy yield with an industry-leading power rating, ideal for space-optimized solar systems.
N-Type Monocrystalline Cell Technology
Provides higher efficiency, reduced light-induced degradation (LID), and excellent temperature performance.
Bifacial Power Generation
Captures sunlight from both the front and rear sides of the panel, increasing total energy generation under reflective surfaces.
Double Glass Durability
Dual-glass structure enhances resistance to environmental conditions such as humidity, dust, and temperature fluctuations.
Certified Traceability & Quality Control
JA Solar’s Integrated Traceable System ensures each panel meets strict quality assurance standards.

Electrical Performance

Specification	Value
Rated Power (Pmax)	450W
Module Efficiency	22.5%
Voltage at Pmax (Vmp)	32.82V
Current at Pmax (Imp)	13.71A
Open Circuit Voltage (Voc)	39.3V
Short Circuit Current (Isc)	14.48A
Temperature Coefficient (Pmax)	-0.30% / °C

Mechanical Specifications

Panel Type: N-Type Monocrystalline, Half-Cell, MBB
Dimensions: 1,762 mm (L) x 1,134 mm (W) x 30 mm (D)
Weight: 21 kg
Frame: Black Frame with MC4-EVO2 Connectors
Glass: Double Glass Construction
Mounting: Clamp on long or short side
Connector Type: Round Post
Maximum System Voltage: 1500V DC

Warranties & Certifications

Product Warranty: 25 Years
Linear Power Output Warranty: 30 Years
MCS Certification: BABT 8515-343-450W
Traceable Manufacturing Code: Yes

Ideal Applications

Grid-tied rooftop systems (residential & commercial)
Ground-mounted installations
Carports and structures with reflective surfaces
Off-grid and hybrid systems

Weight	21 kg
Dimensions	176.2 × 113.4 × 3 cm
Brand:	JA Solar
Product Type:	Monocrystalline Solar Panel
Color:	Black
Weight:	21kg
Dimensions:	1762 x 1134 x 30mm
