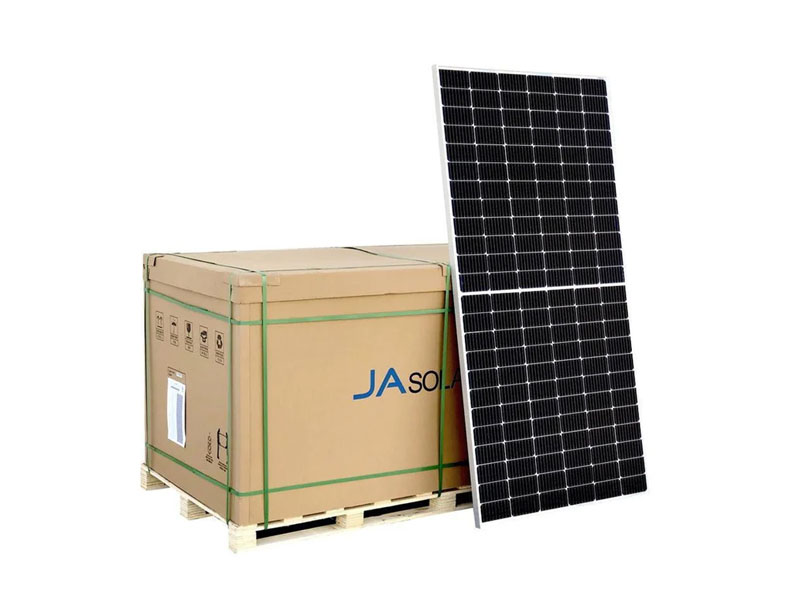

545 Watt JA Solar Panel Pallet

Rating: 545W
Efficiency: 21.1%
Width: 1,134mm
Height: 2,279mm

JAM72S30 is the latest in JA Solar’s 72 Cell range. This module with its 11Bus-bar half-cell configuration can reach up to incredible power of 545Wp. This module offers better temperature-dependent performance and enhanced tolerance for mechanical loading. More benefits of this module range:

Higher power output
Less shading
Lower resistive losses
Lower LCOE

This module is equipped with Staubli MC4 connectors.

Warranty: 12-year product & 25-year linear power output.

Supplier Part No:	JAM72S30-545/MR
Weight:	28 kg
Rated Power:	545 W
MCS Reference:	BABT 8515-218-545W
Length:	2,279 mm
Width:	1,134 mm
Depth:	35 mm
VMPP:	41.8 V
IMPP:	13.04 A
Isc:	13.93 A
Voc:	49.75 V
Temp. Coefficient (Mpp):	-0.35 %
Clamp position on panel:	Long side only
Connector Type:	MC4
Efficiency:	21.1 %
