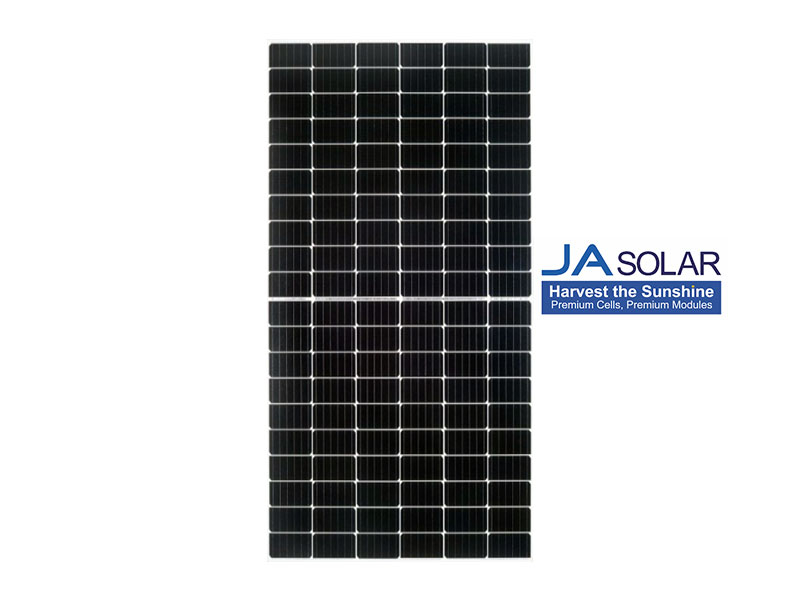

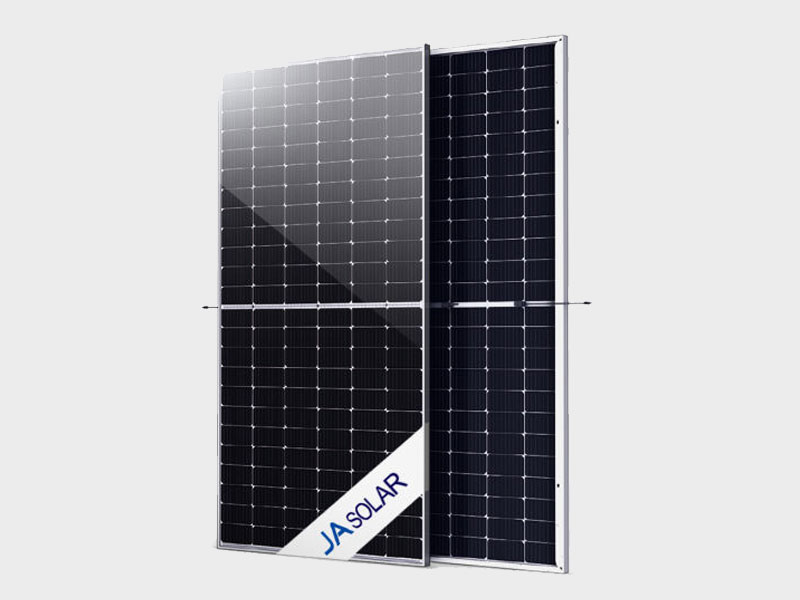

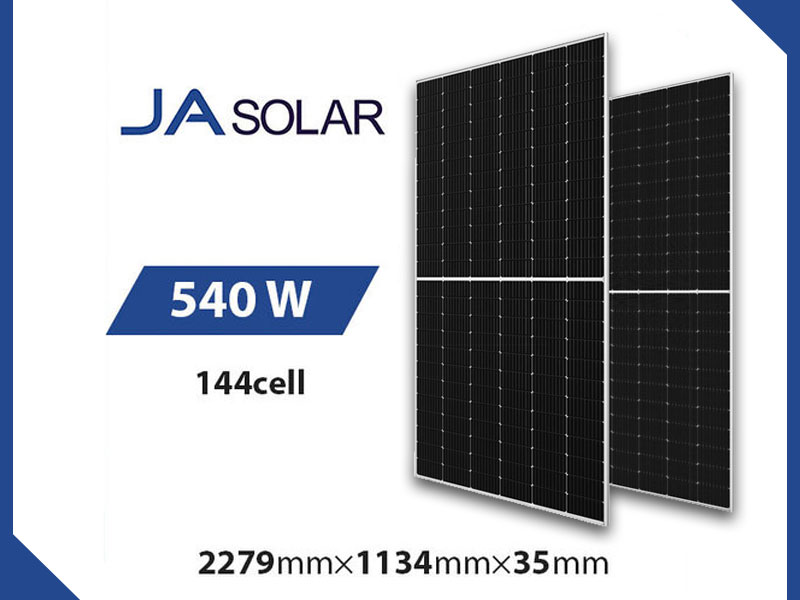

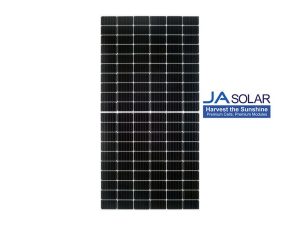

540 Watt JA Solar Panel

JAM72S30 is the latest in JA Solar’s 72 Cell range. This module with its 11Bus-bar half-cell configuration can reach up to a incredible power of 550Wp. This module offers better temperature-dependent performance and enhanced tolerance for mechanical loading. More benefits of this module range:

Higher power output
Less shading
Lower resistive losses
Lower LCOE

This module is equipped with QC4.10 connectors.

Warranty: 12-year product & 25-year linear power output.

Weight	28.6 kg
Weight	28.6 kg
Dimensions	2279 × 1134 × 35 mm
Brand	JA Solar
Watts	540W
Cell Type	Monocrystalline

Specifications

Weight: 28.6 kg

Rated Power: 540 W

Length: 2,279 mm

Width: 1,134 mm

Depth: 35 mm

VMPP: 41.64 V

IMPP: 13.04 A

Isc: 13.93 A

Voc: 49.75 V

Temp. Coefficient (Mpp): -0.35 %

Clamp position on panel: Long side only

Connector Type: QC Solar QC 4.10

Efficiency: 20.9 %

Pallet Size: Oversized
