Sunsynk Lynks Pro 12kW 3-Phase Hybrid Inverter 48V IP65

FAQ

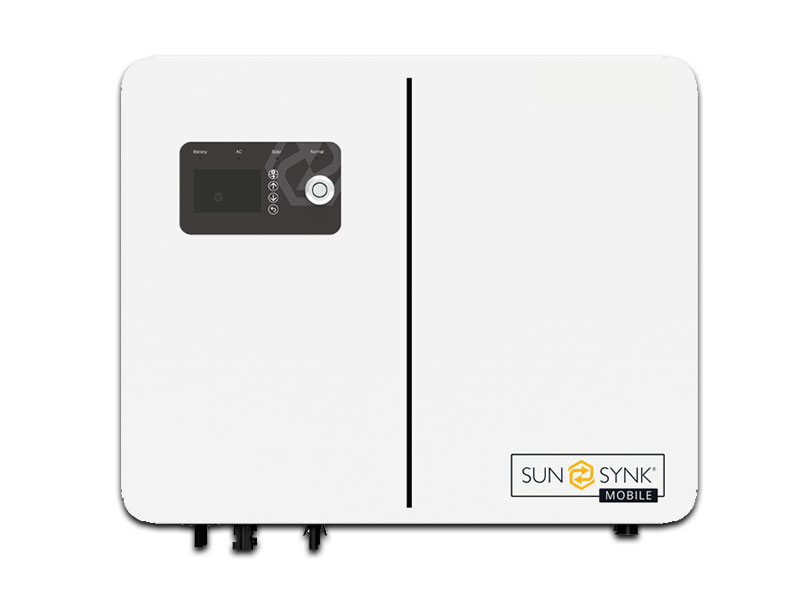

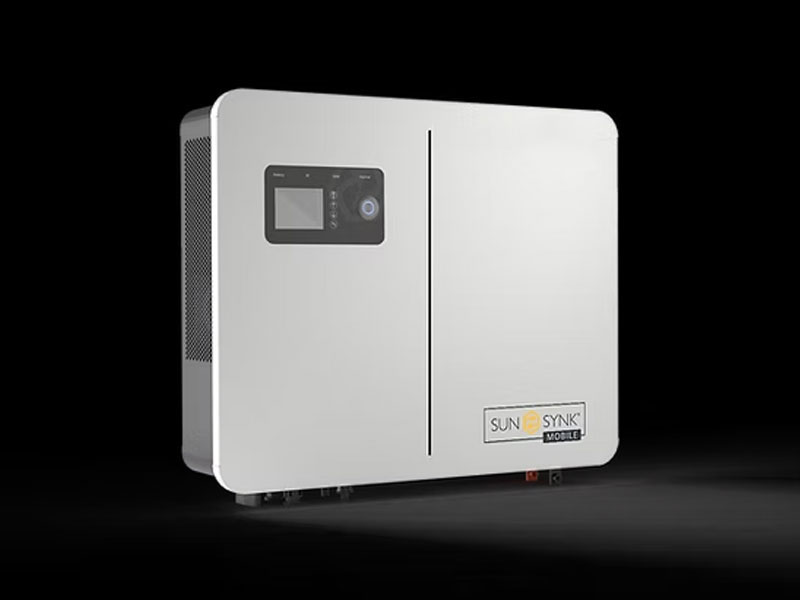

Sunsynk Lynks Pro 12kW 3-Phase Hybrid Inverter Overview

The Sunsynk Lynks Pro 12kW 3-phase hybrid inverter is a powerful energy solution designed for commercial properties, farms, workshops, and larger residential installations that require reliable three-phase power. This inverter combines solar PV, battery storage, and grid supply into one intelligent hybrid system.

With a rated output of 12kW, a 48V battery platform, and support for up to 18kW of solar input, this inverter is ideal for high-demand energy systems where performance, flexibility, and scalability are important.

Why Choose the Sunsynk Lynks Pro 12kW 3-Phase Inverter

This inverter is designed for installations where balanced three-phase power is required. It is suitable for properties with larger electrical loads, three-phase distribution boards, pumps, machinery, air-conditioning systems, refrigeration, and other demanding applications.

12kW three-phase hybrid inverter
Suitable for commercial, agricultural, industrial, and large residential systems
Supports solar, battery, grid, and backup power integration
High solar input capacity of up to 18kW
Dual MPPT design for efficient solar harvesting
IP65 protection for flexible indoor or outdoor installation

Advanced Hybrid Energy Management

The Sunsynk Lynks Pro 12kW inverter intelligently manages energy between solar panels, battery storage, and the grid. During the day, solar power can be used to supply the property while also charging the battery bank. Stored battery energy can then be used during outages, peak usage periods, or when solar production is low.

System Benefits

Improved energy independence
Reduced reliance on grid electricity
Backup power during outages
Better control over energy usage
Designed for larger and more demanding electrical systems

Three-Phase Power for Larger Installations

Unlike single-phase inverters, this model distributes power across three phases. This makes it a better choice for commercial and industrial environments where load balancing is important.

Three-phase systems are commonly used in workshops, farms, factories, guest houses, offices, warehouses, and larger homes with more complex electrical requirements.

High Solar Input Capacity

The inverter supports a maximum DC input power of 18,000W, allowing a large solar array to be connected. This provides excellent daytime generation potential and helps charge the battery system efficiently.

Maximum DC Input Power: 18,000W
Maximum DC Input Voltage: 800V
MPPT Voltage Range: 200V – 650V
Start-Up Voltage: 180V
MPPT Quantity: 2
Maximum Input Current: 28A x 2

Battery Compatibility

The Sunsynk 12kW 3-phase inverter supports both lithium and lead-acid battery systems. For best performance, lithium batteries with BMS communication are recommended.

Battery Voltage Range: 40V – 60V
Supported Battery Type: LiFePO4 or Lead-Acid
Maximum Charge Current: 220A
Maximum Discharge Current: 260A
Recommended Battery Capacity: 100Ah – 2000Ah

Backup Power and Load Support

This inverter is designed to provide reliable backup power for essential and high-demand loads. With a peak apparent output of up to 24,000VA, it offers strong surge handling for suitable connected loads.

Rated Output Power: 12,000W
Peak Output Apparent Power: 24,000VA
Nominal Output Voltage: 3L/N/PE 230V / 400V
Nominal Output Frequency: 50/60Hz
Switching Time: 10ms
Output THDv: <3%

Monitoring and User Interface

The Lynks Pro 2nd Generation inverter includes a touchscreen LCD and improved user interface for easier system control. Wi-Fi monitoring and a CT clamp are included as standard, allowing users to monitor energy performance and system behaviour remotely.

Touchscreen LCD display
New and improved user interface
Wi-Fi dongle included
CT clamp included
Remote monitoring support

Durable IP65 Design

The IP65 protection rating makes this inverter suitable for indoor and outdoor installations. It is designed to handle demanding environments, provided installation is completed correctly and the inverter is positioned according to manufacturer and electrical requirements.

Protection Rating: IP65
Operating Temperature: -20°C to +50°C
Cooling: High-frequency inverter design
Installation Location: Indoor or Outdoor

Technical Specifications

Brand: Sunsynk
Model: Lynks Pro 2nd Generation
Part Number: SUN-LYNKS-PRO-12.0-3PH
Rated Power: 12,000W
Phase: Three Phase
Battery Voltage: 48V
Maximum DC Power: 18,000W
Maximum DC Current: 56A
Maximum AC Power: 12,000W
Surge AC Power: 24,000W
MPPT Quantity: 2
Euro Efficiency: 97.6%
Connector: MC4
Integrated DC Switch: Yes
Dimensions: 620 x 585 x 225 mm
Weight: 42 kg
Warranty: 5 Years

Applications

The Sunsynk Lynks Pro 12kW 3-phase hybrid inverter is ideal for:

Commercial solar systems
Farms and agricultural installations
Workshops and factories
Warehouses and office buildings
Large residential properties
Backup power and hybrid solar systems

Warranty Registration

Installations with Sunsynk products must be registered to activate the full manufacturer warranty. Warranty registration must be completed within 7 days of commissioning. Failure to complete warranty registration within the required period may result in the warranty being void.

Professional Installation Required

This product must be installed by a qualified electrician or solar technician. All installations must comply with local wiring regulations, electrical standards, and safety requirements.

Enerlux will not be held liable for product malfunction, system failure, or damage caused by incorrect installation, poor system design, or non-compliant electrical work.

Why Buy from Enerlux

Enerlux supplies high-quality solar products and professionally designed energy solutions across South Africa. Our team assists with product selection, system design guidance, and reliable supply for residential, commercial, and industrial solar projects.

Weight	42 kg
Dimensions	62 × 58.5 × 22.5 cm
Brand:	Sunsynk
MPN:	SUN-LYNKS-PRO-12.0-3PH
Condition:	new
Product Type:	Hybrid Inverter
Inverter Type:	Three Phase Hybrid Inverter
Model:	Lynks Pro 2nd Generation
Rated Power:	12000W
Output Power:	12000W
Surge Power:	24000W
Phase:	Three Phase
Battery Voltage:	48V
Battery Voltage Range:	40V – 60V
Battery Type:	LiFePO4 / Lead-Acid
Max Charge Current:	220A
Max Discharge Current:	260A
Max DC Power:	18000W
Max PV Input Power:	18000W
Max Input Voltage:	800V
MPPT Quantity:	2
MPPT Voltage Range:	200V – 650V
Start-Up Voltage:	180V
Max DC Current:	56A
Max DC Inputs:	2
Connector Type:	MC4
Integrated DC Switch:	Yes
Efficiency:	97.6%
Euro Efficiency:	97.6%
MPPT Efficiency:	99.9%
Protection Rating:	IP65
Installation Location:	Indoor / Outdoor
Display:	Touchscreen LCD
Connectivity:	Wi-Fi
Monitoring:	Remote Monitoring Supported
Included Accessories:	Wi-Fi Dongle / CT Clamp
Nominal Output Voltage:	230V / 400V
Frequency:	50Hz / 60Hz
Switching Time:	10ms
THD Output:	<3%
Dimensions:	620 x 585 x 225 mm
Weight:	42 kg
Colour:	White
Application:	Commercial / Industrial / Large Residential
Warranty:	5 Years
Warranty Registration:	Required within 7 days of commissioning

Reviews

There are no reviews yet.

Be the first to review “Sunsynk Lynks Pro 12kW 3-Phase Hybrid Inverter 48V IP65”

You must be logged in to post a review.

Delivery Information

Enerlux manages deliveries through a combination of our own private delivery drivers and trusted national logistics partners, including companies such as The Courier Guy. The delivery method is selected based on the size, weight, and scope of the order, as well as the delivery location. All deliveries are initiated once an order has been placed, payment has been confirmed, and the order has been processed. Orders are carefully prepared, packaged, and scheduled to ensure safe handling of all electrical, solar, and energy equipment.

Delivery timelines typically range between 1 to 5 business days, depending on:

The size and complexity of the order
The selected courier or delivery method
Courier schedules and regional routing
The delivery destination

For larger, bulk, or specialised equipment orders, Enerlux may allocate dedicated delivery vehicles or adjusted logistics schedules to ensure safe transport.

Customers will be notified once dispatch has taken place, and tracking details will be provided where applicable.

Please note: Delivery timelines are estimates and may be affected by courier availability, public holidays, or unforeseen logistical delays.

Frequently Asked Questions – Sunsynk Lynks Pro 12kW 3-Phase Hybrid Inverter

What is the Sunsynk Lynks Pro 12kW 3-phase inverter used for?

This inverter is used for larger solar systems where three-phase power is required. It is suitable for commercial buildings, farms, workshops, factories, warehouses, and large homes with higher energy demands.

What is the difference between single-phase and three-phase inverters?

A single-phase inverter supplies power on one phase, while a three-phase inverter distributes power across three phases. Three-phase inverters are better suited for larger properties, balanced load distribution, and equipment that requires three-phase supply.

Can this inverter be used for residential installations?

Yes, it can be used for large residential properties with three-phase electrical supply. It is especially suitable where the property has higher loads or requires balanced power across multiple phases.

How many solar panels can be connected to this inverter?

The inverter supports up to 18kW of solar input. The exact number of solar panels depends on the wattage of the panels, the string design, voltage limits, and site conditions.

Does this inverter work with lithium batteries?

Yes, the inverter supports LiFePO4 lithium batteries and lead-acid batteries. Lithium batteries with BMS communication are recommended for best performance and system control.

Can the Sunsynk 12kW 3-phase inverter work without batteries?

Yes, it can operate in certain grid-tied applications without batteries, but backup power during outages requires battery storage.

Is this inverter suitable for off-grid use?

Yes, it can be used in hybrid and off-grid systems when correctly paired with suitable battery storage and solar panel capacity.

Is Wi-Fi monitoring included?

Yes, the inverter includes a Wi-Fi dongle for remote monitoring, allowing system performance to be viewed through supported monitoring platforms.

Is the CT clamp included?

Yes, a CT clamp is included as standard for energy monitoring and system control.

Can this inverter be installed outdoors?

Yes, the inverter has an IP65 rating and is suitable for indoor or outdoor installation. It should still be installed in a suitable location according to electrical and manufacturer requirements.

What warranty does this inverter include?

The inverter includes a standard 5-year warranty. Warranty registration must be completed within 7 days of commissioning to activate full warranty cover.

Can I install this inverter myself?

No, this inverter must be installed by a qualified electrician or solar technician. Incorrect installation can create safety risks, damage equipment, and void the warranty.
