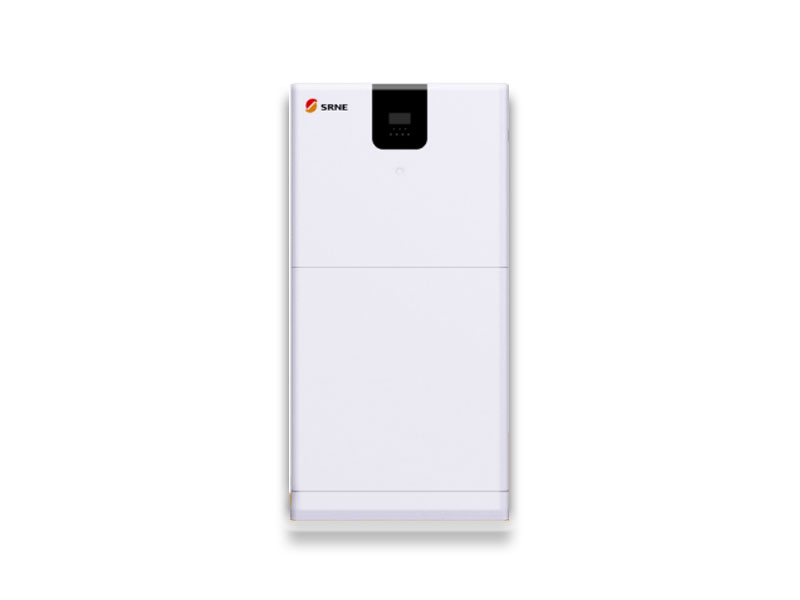

SRNE 3kw 24V All-in-one Lithium System

R24 730.75 Incl. VAT

15 people are viewing this product right now
SRNE 3kw 24V All-in-one 5.12kWh Lithium-ion System

The SRNE inverter “All-In-One” solar System provides everything you need for off-grid applications including:
1 X 3.5kW (3500W) 24V Inverter.
1 X 5.12kWh, 200Ah, 25.6V Lifepo4 battery.

General Data
• Package Model: SR-EOV24-5.0S-S1
• Long Life: 5000 Cycles @ 80% DOD
• Easy To Install & Use
• Multiple Working Modes
• Fast & Flexible Charging

Please, activate Compare option to use this widget.
SKU: EOV24-5.0S-S1 Categories: ,

SRNE 3kw 24V All-in-one Lithium System

Battery Technical Specification
• Battery Model: SR-EOV24-5.0A-E1
• Number Of Batteries: 1
• Battery Energy: 5.12KWH
• Battery Capacity: 200AH
• Weight: 100Kg
• Dimension: 1190mmL x 600mmD x 184mmH
• Battery Type: LiFePO4
• Battery Rated Voltage: 25.6V
• Battery Working Voltage Range: 22.4VDC – 28.8VDC
• Maximum Charging Current: 150A
• Maximum Discharging Current: 150A
• DOD: 80%
• Designed Life Span: 5000 Cycles

Inverter Technical Specification
• Inverter Model: SR-EOV24-3.5S-C1

PV Charge
• Solar Charge Type: MPPT
• Maximum Input Power: 4000W
• PV Charging Current Range: 0A-80A
• PV Operating Voltage Range: 120VDC-500VDC
• MPPT Voltage Range: 120VDC-450VDC

AC Charge
• Maximum Charge Power: 2240W
• AC Charging Current Range: 0A-80A
• Rated Input Voltage: 220VAC-230VAC
• Input Voltage Range: 90VAC-280VAC

AC Output
• Rated Output Power: 3500W
• Maximum Output Current: 30A
• Frequency: 50Hz
• Overload Current: 35A

Battery Inverter Output
• Rated Output Power: 3500W
• Maximum Peak Power: 6000VA
• Power Factor: 1
• Pated Output Voltage: 230VAC
• Frequency: 50Hz
• Auto Switch Period: <15ms

Environment Limit
• Communication: RS485 / CAN / WIFI
• Charging Temperature Range: 0°C to 45°C
• Discharging Temperature Range: -10°C to 45°C
• Operation Humidity: 5% to 85%
• Cooling Mode: Force-Air-Cooling @ 60bB
• Ingress Protection: IP20
• Operation Environment: Indoor
• Installation Method: Vertical
• Safety Certification: UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3

Weight 110 kg
