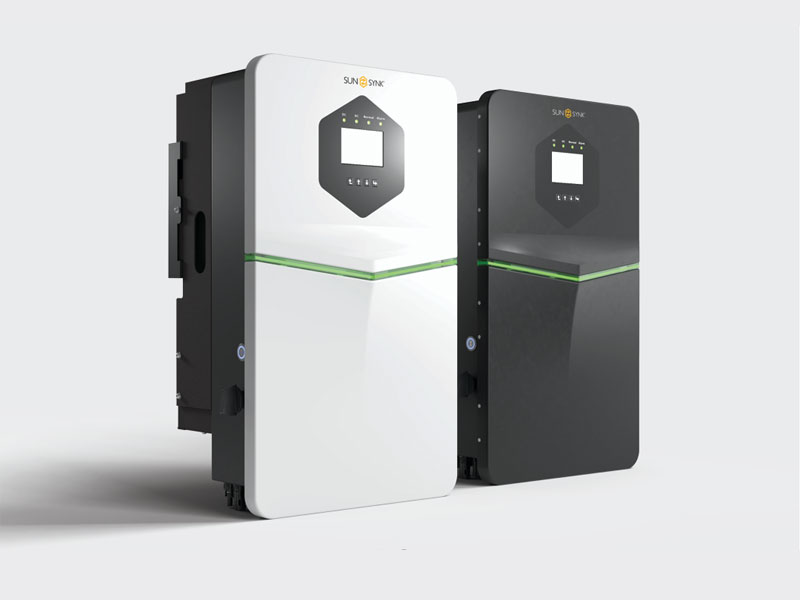

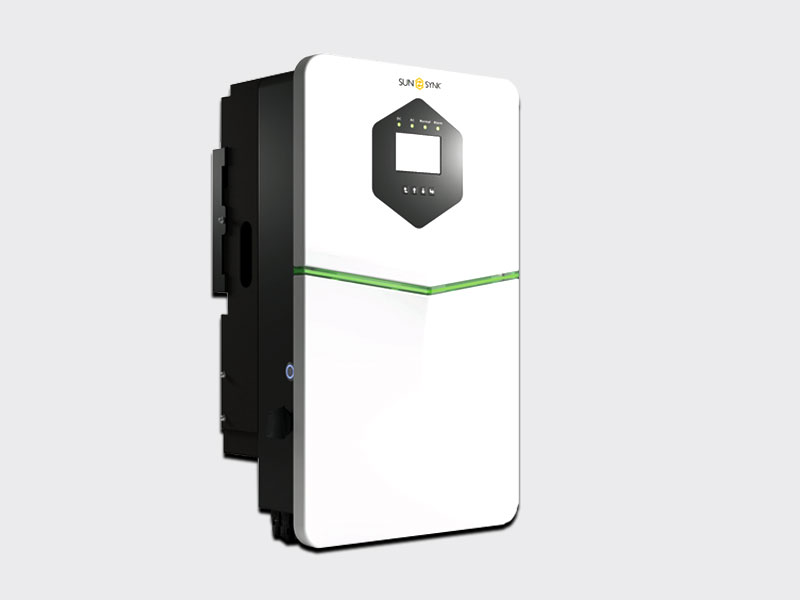

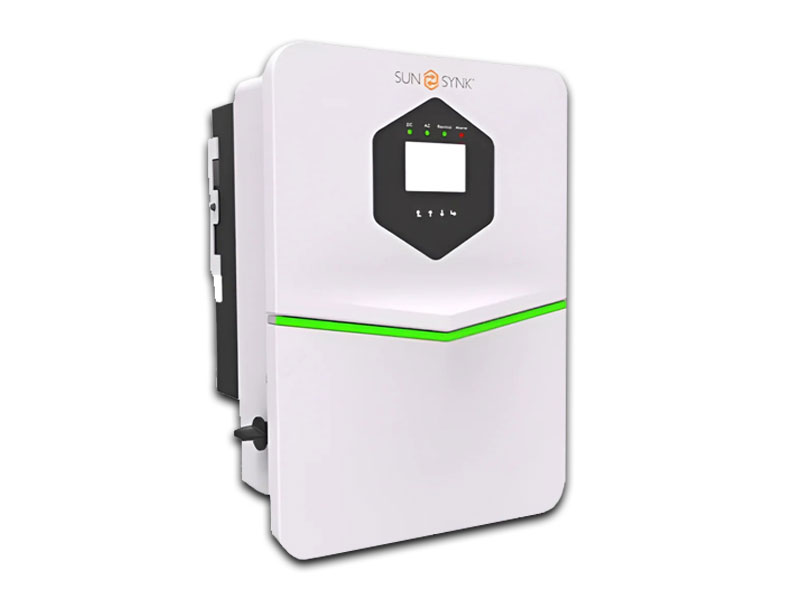

Sunsynk Acure 8kW, 48Vdc Single Phase Hybrid Inverter with WIFI included

The Sunsynk Acure 8kW Hybrid Inverter is a next-generation single-phase solution packed with advanced features for residential and small commercial solar systems. Designed for efficiency, reliability, and intelligent energy management, this model supports high PV input power, fast charging, seamless switching, and full hybrid functionality for both grid-tied and off-grid applications.

With a robust 27.1kg build, IP65 protection rating, integrated safety systems, and wide communication support including built-in WiFi, this inverter provides long-term stability and high performance in demanding environments. When paired with Sunsynk batteries, the warranty extends from 5 to 10 years, adding even greater value.

Key Features

High Charging and Discharging Power

Up to 190A charge/discharge capability allows rapid battery charging and stable high-load support.

Powerful PV Array Compatibility

Supports up to 16,000W PV access power with dual MPPT trackers for efficient solar harvesting.

Advanced Hybrid Functionality

Seamlessly manages solar, battery, and grid interactions, offering backup, self-consumption, and time-of-use modes.

Peak Power Handling

Delivers two times rated power for 10 seconds during startup surges and heavy appliance loads.

Smart Monitoring and Communication

Built-in WiFi with optional GPRS, Bluetooth, 4G or LAN ensures full remote monitoring and control.

Comprehensive Protection Systems

Includes reverse polarity protection, overcurrent protection, AC/DC surge protection (Type II), ground fault detection, islanding protection, and thermal protection.

Weather-Resistant and Quiet Operation

IP65 outdoor-rated enclosure with noise levels under 30dB ensures silent operation and long-term durability.

Technical Specifications

Electrical Characteristics (8kW Model)

• Rated AC Output Power: 8000W
• Max AC Output Apparent Power: 8800VA
• Peak Off-Grid Power: 2x rated power for 10 seconds
• Rated AC Input/Output Voltage: 220V/230V
• Rated Output Frequency: 50Hz / 60Hz
• Max AC Input/Output Current: 40A / 38.3A
• Max Continuous AC Passthrough: 50A
• Max Efficiency: 97.6%
• Euro Efficiency: 96.5%
• MPPT Efficiency: >99%

Battery Input

• Battery Voltage Range: 40–60V
• Max Charging Current: 190A
• Max Discharging Current: 190A
• Battery Type: Lead-acid or Lithium-ion
• Charging Strategy: Automatic BMS adaptation

PV Input

• Max PV Access Power: 16,000W
• Max PV Input Power: 12,800W
• Max PV Voltage: 500V
• MPPT Voltage Range: 150–425V
• Number of MPPTs / Strings: 2 MPPT / 2+2 strings
• Max Operating PV Current: 32A + 32A
• Max Short-Circuit Current: 48A + 48A

General Specifications

• Operating Temperature: -40°C to +60°C (derating above 45°C)
• Humidity: 0–100%
• Altitude: Up to 2000m
• Noise Level: <30dB
• Ingress Protection: IP65
• Cooling: Intelligent air cooling
• Topology: Non-isolated
• Cabinet Size: 366 × 630 × 281.41 mm
• Weight: 27.1 kg

Communication & Monitoring

• Display: LCD + LED
• Interfaces: RS485 / RS232 / CAN
• Monitoring: WiFi (included), GPRS / Bluetooth / 4G / LAN optional

Warranty

• Standard Warranty: 5 years
• Extended Warranty: 10 years when installed with Sunsynk batteries
