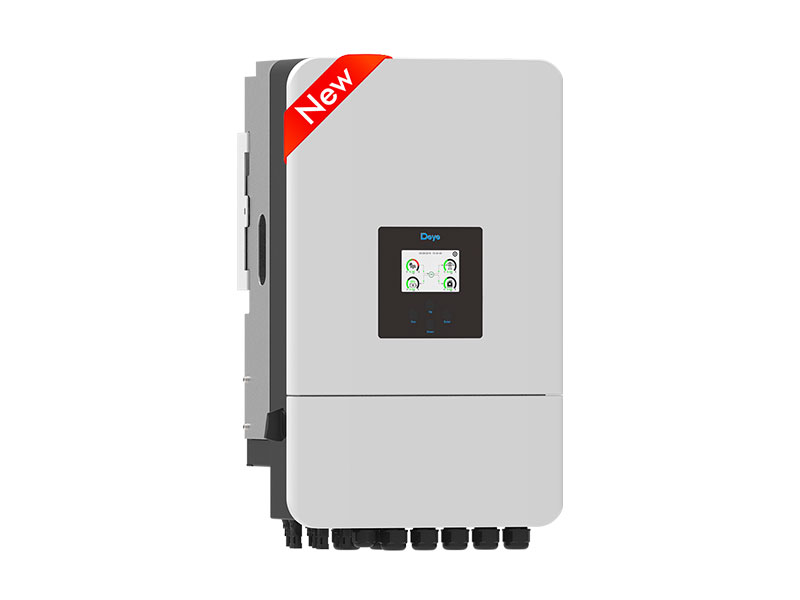

20kW Deye Low Voltage 3-Phase Hybrid Inverter
The 20kW Deye low voltage hybrid inverter is a high-capacity three-phase energy management system designed for large residential, commercial, agricultural, and light industrial installations that require strong backup capability, flexible battery integration, and stable three-phase power delivery. This inverter is built around a 48V low voltage battery architecture, making it ideal for installations where high battery currents, modular battery expansion, and compatibility with a wide range of lithium and lead-acid batteries are required.
Rather than functioning as a simple inverter, the 20kW Deye hybrid inverter actively controls how energy is generated, stored, consumed, and transferred across the system. It manages solar PV input, low voltage battery banks, grid supply, and generator power simultaneously, ensuring stable output even under high and uneven load conditions.
How the 20kW Deye Hybrid Inverter Manages Energy Flow
At its core, the 20kW Deye hybrid inverter continuously evaluates solar production, battery state of charge, grid availability, and real-time load demand across all three phases. Based on configurable priorities, it decides whether energy should be supplied directly from solar, stored in batteries, drawn from the grid, or supplemented by a generator.
This intelligent control allows the system to adapt dynamically throughout the day, automatically responding to changing consumption patterns, weather conditions, and grid availability without manual intervention.
Three-Phase Power Delivery of the 20kW Deye Inverter
The 20kW Deye inverter delivers true three-phase output at 230/400V and supports 100% unbalanced output across phases. This means each phase can independently deliver up to 50% of the inverter’s rated power, making it particularly suitable for installations where loads are not evenly distributed.
This capability is critical for real-world environments such as workshops, farms, warehouses, and commercial buildings where phase loading is rarely perfectly balanced.
Low Voltage Battery System Design of the 20kW Deye Inverter
This inverter is designed around a 48V low voltage battery system, supporting both lithium-ion and lead-acid batteries. The low voltage architecture allows installers to build large battery banks using modular 48V battery units, making future expansion simpler and more cost-effective.
With a maximum charging and discharging current of up to 350A, the 20kW Deye low voltage inverter is capable of delivering high power output from the battery system, even during heavy load conditions or extended grid outages.
Direct communication with lithium battery BMS systems enables controlled charging, discharging, and protection coordination for long-term battery health.
Solar PV Input and MPPT Operation on the 20kW Deye Hybrid Inverter
The 20kW Deye hybrid inverter includes integrated MPPT solar charge controllers, allowing direct connection of solar PV arrays without external charge controllers. It supports high PV input voltages and multiple MPPT trackers, enabling flexible string layouts and efficient energy harvesting across large solar arrays.
This makes the inverter suitable for new solar installations as well as retrofitting into existing AC-coupled solar systems.
Grid Interaction and Export Control of the 20kW Deye Inverter
The inverter supports grid-connected operation with configurable export control. It can operate in self-consumption mode, partial export mode, or zero-export mode using CT coils or compatible metering.
Built-in anti-islanding protection ensures safe disconnection during grid outages and compliant reconnection once grid conditions stabilise.
Generator Integration on the 20kW Deye Low Voltage Inverter
A dedicated generator input allows seamless integration with diesel or petrol generators. The inverter can automatically start and stop the generator based on battery state of charge, load demand, or programmed schedules.
Generator energy can be used to supply loads directly, charge batteries, or both simultaneously, improving fuel efficiency during extended outages.
Backup Power Operation of the 20kW Deye Hybrid Inverter
During grid failure, the 20kW Deye hybrid inverter transitions automatically to battery and solar operation. When sufficient battery and solar capacity are available, three-phase loads remain powered without interruption.
This makes the inverter suitable for applications where uptime is critical, including farms, offices, workshops, and mixed-use properties.
Thermal Performance of the 20kW Deye Low Voltage Inverter
The inverter uses intelligent air cooling to maintain stable operating temperatures under sustained load. This design supports continuous operation in demanding environments while minimising noise and heat stress on internal components.
Technical Specifications of the 20kW Deye Low Voltage Hybrid Inverter
Electrical Output of the 20kW Deye Inverter
- Rated AC output power: 20 kW
- Maximum AC apparent power: 22 kVA
- Output voltage: 230/400 V
- Output frequency: 50 / 60 Hz
- Phase configuration: Three-phase
Battery System Specifications of the 20kW Deye Low Voltage Inverter
- Battery type: Lithium-ion or lead-acid
- Battery voltage range: 40 – 60 V
- Maximum charge current: 350 A
- Maximum discharge current: 350 A
- BMS communication: CAN, RS485
Solar PV Input Specifications
- Maximum DC input power: 26,000 W
- Maximum PV voltage: 800 V DC
- MPPT voltage range: 160 – 650 V DC
- MPPT trackers: 2
- Strings per MPPT: 2 + 2
Efficiency Ratings
- Maximum inverter efficiency: 97.6%
- Euro efficiency: 97.0%
- MPPT efficiency: Greater than 99%
Physical and Environmental Specifications
- Installation type: Wall-mounted
- Cooling: Intelligent air cooling
- Protection rating: IP65
- Weight: 38 kg
- Dimensions: 456 × 750 × 266 mm
Warranty
Manufacturer warranty: 5 years
FAQ
Frequently Asked Questions About the 20kW Deye Low Voltage Hybrid Inverter
What type of inverter is the 20kW Deye hybrid inverter?
The 20kW Deye is a three-phase low voltage hybrid inverter designed to manage solar PV, 48V battery systems, grid power, and generator input within a single integrated platform. It is not a basic inverter charger and not a grid-tied inverter only. It actively controls energy flow across the system.
Is the 20kW Deye inverter suitable for residential use?
This inverter can be used in large residential properties, estates, and farms that have three-phase power and high energy demand. It is generally oversized for standard homes and is better suited to installations with significant backup requirements, workshops, pumps, or commercial-style loads.
What battery systems are compatible with the 20kW Deye low voltage inverter?
The inverter is designed for 48V low voltage battery systems and supports both lithium-ion and lead-acid batteries. It is commonly paired with modular lithium batteries such as 5kWh to 15kWh units that can be expanded over time. Battery communication via CAN or RS485 allows controlled charging and discharging when using supported lithium batteries.
Why would someone choose a low voltage inverter instead of a high voltage inverter?
Low voltage inverters like the 20kW Deye are often chosen because they are compatible with widely available 48V battery modules, allow modular expansion, and offer flexibility when building large battery banks. High voltage inverters typically require specific HV battery systems and are more common in large commercial-only installations.
How much battery capacity is recommended for a 20kW Deye hybrid inverter?
Battery capacity depends on load demand and backup duration requirements. For this inverter, battery banks typically start at 20kWh and scale upward depending on application. Larger battery capacity is recommended to avoid high depth-of-discharge cycles when running heavy three-phase loads.
How does the 20kW Deye inverter handle unbalanced three-phase loads?
The inverter supports 100% unbalanced output, meaning each phase can independently supply up to 50% of the inverter’s rated power. This is critical in real-world systems where loads are rarely evenly distributed across phases.
Does the 20kW Deye hybrid inverter include built-in MPPT solar charge controllers?
Yes. The inverter includes integrated MPPT solar charge controllers, allowing solar PV arrays to connect directly to the inverter without external MPPTs. Multiple MPPT trackers support flexible string layouts and different roof orientations.
Can the 20kW Deye inverter work with existing grid-tied solar systems?
Yes. The inverter can be integrated into systems where AC-coupled solar is already present, depending on system design and compliance requirements. This makes it suitable for upgrades or retrofits.
Can the 20kW Deye hybrid inverter feed power back into the grid?
Yes. The inverter supports grid export, partial export, or zero-export operation. Export control is managed using CT coils or compatible metering to comply with municipal or utility requirements.
How does the 20kW Deye inverter behave during load shedding or grid failure?
When the grid fails, the inverter automatically switches to battery and solar operation. If sufficient battery capacity and solar input are available, three-phase loads remain powered without manual intervention. Backup behaviour can be configured to prioritise essential circuits.
Does the 20kW Deye inverter support generator integration?
Yes. A dedicated generator input allows the inverter to work seamlessly with diesel or petrol generators. The inverter can automatically start and stop the generator and manage generator power for load supply and battery charging.
Is this inverter suitable for off-grid systems?
Yes. When correctly designed with adequate solar capacity, battery storage, and optional generator support, the 20kW Deye hybrid inverter can operate as a fully off-grid system.
How does the 20kW Deye low voltage inverter compare to Sunsynk or Victron systems?
The 20kW Deye inverter is an all-in-one hybrid platform with integrated MPPTs, battery support, generator control, and monitoring. Compared to Sunsynk, Deye often offers strong value in high-capacity low voltage systems. Compared to Victron, Deye provides a more integrated solution, while Victron systems are modular and typically used for highly customised or specialised installations.
What monitoring and control options are available on the 20kW Deye inverter?
The inverter includes local monitoring via its onboard display and supports remote monitoring through WiFi or LAN using Deye’s monitoring platform. This allows users and installers to track solar production, battery usage, grid interaction, and system performance in real time.
Does the 20kW Deye inverter require professional installation?
Yes. Due to the power level, three-phase output, and high battery currents involved, installation must be carried out by a qualified electrical professional. Proper system design, protection, and compliance with local electrical standards are essential.
Who should choose the 20kW Deye low voltage hybrid inverter?
This inverter is ideal for large homes, farms, workshops, commercial buildings, and mixed-use properties that require reliable three-phase backup power using 48V battery systems, flexible battery expansion, and advanced energy control.
