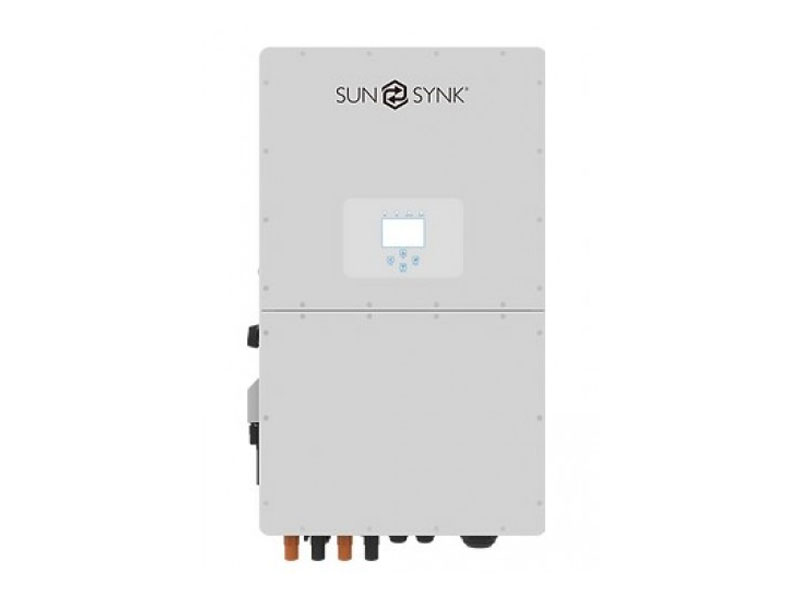

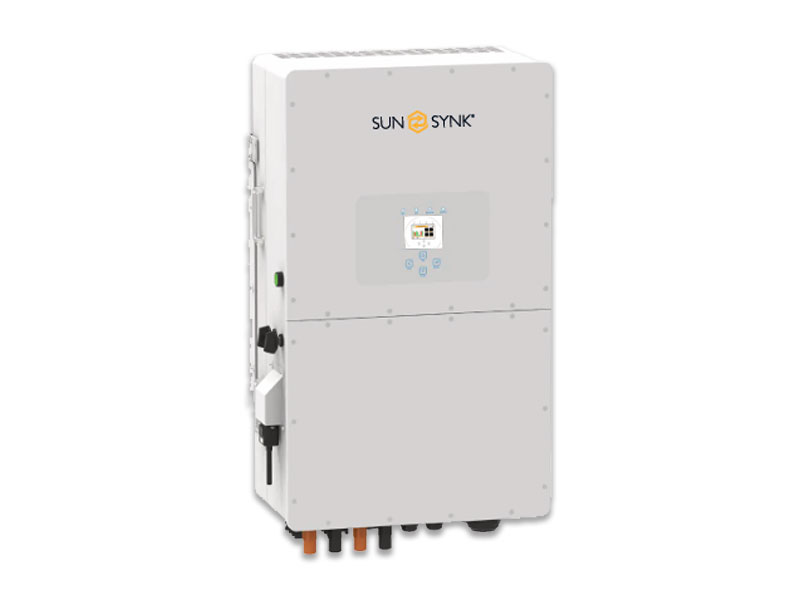

Sunsynk 25kW 3-Phase Hybrid High-Voltage Inverter

The Sunsynk 25kW 3-phase hybrid high-voltage inverter is built for large electrical systems where power stability, balanced three-phase supply, and intelligent energy control are essential. This is not an inverter that simply converts DC power into AC power. It is designed to continuously manage how energy moves through a complex system, making decisions in real time to keep everything running smoothly.

Unlike residential hybrid inverters that are designed around lighter, intermittent household loads, this unit is engineered for continuous operation under sustained demand. It is built to handle high and constant loads while coordinating multiple energy sources at the same time, including high-voltage solar PV arrays, high-voltage lithium battery systems, grid supply, and generator input. All of this is managed while maintaining stable, balanced three-phase output across the installation.

At the heart of the system, the Sunsynk 25kW inverter acts as the control centre for the entire electrical setup. It constantly monitors how much power is available, how loads are distributed across phases, the state of charge of the battery system, and the condition of the grid. Based on this information, it makes real-time decisions about where power should come from and where it should go. This ensures that critical loads stay powered, solar energy is used efficiently, batteries are protected from unnecessary stress, and grid interaction remains controlled and compliant.

This type of inverter is typically used in environments such as factories, farms, cold storage facilities, warehouses, shopping centres, office buildings, mixed-use commercial properties, and large residential estates. These installations often depend on three-phase motors, pumps, compressors, refrigeration systems, and other equipment that require stable phase balance and consistent power quality. In these settings, unstable power or phase imbalance can quickly lead to equipment damage, operational downtime, or reduced system lifespan.

Rather than passively reacting to changes in load or grid conditions, the Sunsynk 25kW hybrid inverter actively manages energy usage. System designers and operators can define how solar power is prioritised, when batteries should be charged or discharged, how grid power should be used, and when a generator should step in. This flexibility allows the system to be tuned for lower energy costs, stronger backup performance, strict grid compliance, or a carefully balanced combination of all three.

In large electrical systems, energy needs to be controlled, not just converted. The Sunsynk 25kW inverter is built around this principle. It functions as a decision-making engine that balances performance, reliability, and efficiency across the entire installation. This role as an energy controller, rather than a simple inverter, is what clearly separates it from smaller residential hybrid units and firmly places it in the commercial and industrial category.

How the Sunsynk 25kW 3-Phase Hybrid Inverter Controls Energy Flow

At its core, the Sunsynk 25kW 3-phase hybrid inverter controls how energy is produced, stored, consumed, and exported. It continuously evaluates solar PV output, battery state of charge, grid availability, and load demand across all three phases. Based on configured priorities, it decides whether energy should be supplied directly from solar, stored in batteries, imported from the grid, or supplied by a generator.

This operating logic allows the 25kW Sunsynk inverter to adapt automatically to changing conditions without manual intervention, making it suitable for complex installations where energy availability and demand fluctuate throughout the day.

Three-Phase Power Delivery on the Sunsynk 25kW Inverter

The Sunsynk 25kW hybrid inverter delivers true three-phase output at 230/400V and actively manages phase synchronisation and load balance. This is essential for installations running three-phase motors, pumps, compressors, refrigeration systems, or workshop machinery.

By internally controlling phase interaction, the inverter maintains voltage stability and protects connected equipment from imbalance-related stress, even as loads fluctuate across individual phases.

High-Voltage Battery System Design of the Sunsynk 25kW HV Inverter

This Sunsynk 25kW high-voltage inverter is designed exclusively for high-voltage lithium battery systems and does not support low-voltage or 48V batteries. Operating at a higher battery voltage significantly reduces current flow, improves overall efficiency, lowers cable losses, and allows higher power transfer without excessive conductor sizing.

Direct communication with compatible battery management systems via CAN or RS485 enables controlled charging, discharging, coordinated protection, and fault handling, which is essential for safe operation in large battery installations.

Solar PV Input and MPPT Operation on the Sunsynk 25kW Hybrid Inverter

The Sunsynk 25kW hybrid inverter includes integrated MPPT solar charge controllers, allowing direct connection of solar PV arrays without external charge controllers. It supports high-voltage PV strings up to 1000V DC, enabling long string runs and flexible array layouts across large rooftop or ground-mounted solar systems.

Multiple MPPT trackers allow different PV arrays to operate independently, improving energy harvest when panels are installed on different orientations or are subject to partial shading.

Grid Interaction and Export Control on the Sunsynk 25kW Inverter

The Sunsynk 25kW inverter supports grid-connected operation with configurable export behaviour. It can be configured for full export, partial export, or zero-export operation using CT coils or compatible metering systems.

Anti-islanding protection and grid monitoring are built into the inverter to ensure safe disconnection during grid outages and controlled reconnection once grid conditions stabilise.

Generator Integration and Backup Strategy of the 25kW Sunsynk Inverter

A dedicated generator input allows the 25kW Sunsynk hybrid inverter to integrate seamlessly with standby generators. The inverter can automatically start and stop the generator based on battery state of charge, load demand, or programmed schedules.

Generator power can be prioritised for supplying loads, charging batteries, or both simultaneously, improving generator efficiency and reducing fuel consumption during extended outages.

Backup Power Operation with the Sunsynk 25kW Hybrid Inverter

In the event of a grid failure, the Sunsynk 25kW inverter transitions automatically to battery and solar operation. When sufficient energy is available, three-phase loads continue operating without manual intervention.

The system can be configured to prioritise essential loads or manage internal load shedding when battery capacity becomes limited, making it suitable for uptime-critical environments.

Thermal Performance of the Sunsynk 25kW High-Voltage Inverter

The Sunsynk 25kW high-voltage inverter uses intelligent, variable-speed air cooling to manage internal temperatures under sustained high load conditions. This thermal design allows continuous operation in demanding commercial environments without unnecessary derating under normal operating conditions.

High system efficiency reduces wasted energy and excess heat, contributing to long-term reliability and stable performance.

Technical Specifications of the Sunsynk 25kW 3-Phase Hybrid HV Inverter

Electrical output of the 25kW Sunsynk inverter

• Rated AC output power: 25 kW
• Maximum AC output power: 27.5 kW
• Output voltage: 230/400 V
• Output frequency: 50 / 60 Hz
• Phase configuration: Three-phase

Battery system specifications of the Sunsynk 25kW HV inverter

• Battery type: Lithium-ion (high-voltage)
• Nominal battery voltage: Approximately 600 V
• Maximum charge current: 50 A + 50 A
• Maximum discharge current: 50 A + 50 A
• BMS communication: CAN, RS485

Solar PV input specifications of the Sunsynk 25kW hybrid inverter

• Maximum PV power: 32,500 W
• MPPT trackers: 2
• Strings per MPPT: 2 + 2
• Maximum PV voltage: 1000 V DC
• MPPT voltage range: 150 – 850 V DC

Efficiency ratings of the 25kW Sunsynk high-voltage inverter

• Maximum inverter efficiency: Up to 97.6%
• MPPT efficiency: Greater than 99%

Physical and environmental specifications

• Installation type: Wall-mounted
• Cooling: Intelligent air cooling
• Protection rating: IP65
• Weight: 80 kg
• Dimensions: 527 × 894 × 294 mm

Warranty

Manufacturer warranty: 5 years
