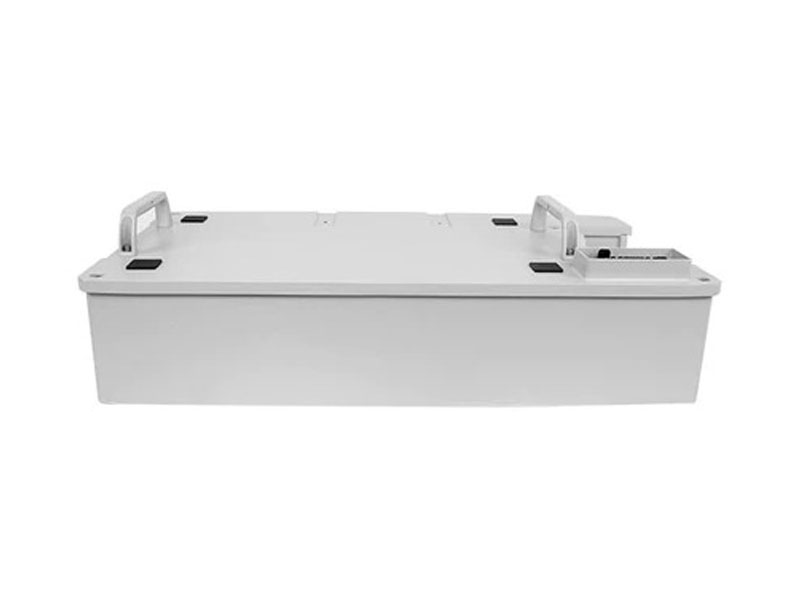

Sungrow 3.2kWh HV Battery Module

Sungrow SBR Battery Module 3.2 kWh

Sungrow SBR high voltage batteries use Lithium Ferro Phosphate (LFP) cells which are considered the safest and longest-lasting battery chemistry and contain no Cobolt making them more sustainable.

𝟭𝟬𝟬% 𝗨𝘀𝗮𝗯𝗹𝗲 𝗯𝗮𝘁𝘁𝗲𝗿𝘆 𝘀𝘁𝗼𝗿𝗮𝗴𝗲 – compared to only 80% for most others

𝗙𝗮𝘀𝘁 𝗰𝗵𝗮𝗿𝗴𝗲 from 0% to 100% for a 9.6kWh battery bank

𝟭𝟬-𝗬𝗲𝗮𝗿 𝗙𝘂𝗹𝗹 𝘀𝘆𝘀𝘁𝗲𝗺 𝘄𝗮𝗿𝗿𝗮𝗻𝘁𝘆

200% PV Capacity. Connect up to 12kW of solar to 𝗰𝗵𝗮𝗿𝗴𝗲 𝗯𝗮𝘁𝘁𝗲𝗿𝗶𝗲𝘀 & 𝗽𝗼𝘄𝗲𝗿 𝗹𝗼𝗮𝗱 𝗮𝘁 𝘁𝗵𝗲 𝘀𝗮𝗺𝗲 𝘁𝗶𝗺𝗲

𝗔𝗺𝗼𝗻𝗴 𝘁𝗵𝗲 𝗺𝗼𝘀𝘁 𝗿𝗲𝗹𝗶𝗮𝗯𝗹𝗲 solar inverter & battery brands in the world

𝗢𝘂𝘁𝘀𝘁𝗮𝗻𝗱𝗶𝗻𝗴 𝘀𝗮𝗳𝗲𝘁𝘆 𝗿𝗲𝗰𝗼𝗿𝗱 𝘄𝗶𝘁𝗵 𝟬 𝗶𝗻𝗰𝗶𝗱𝗲𝗻𝘁𝘀 with a total of 3GWH installed globally

Key Features:

Battery Type: LiFePO4 Prismatic Cell
Net Capacity: 3,2 kWh
Dimensions (WxHxD): 625 x 130 x 330 mm
Weight: 33 kg
Installation location: Indoor / Outdoor
Warranty: 10 Years (Refer to battery warranty document for conditional application, please)

High Performance

Up to 30A continuous charging and discharging current with high efficiency
Up to 100% usable energy

Safety

Lithium iron phosphate Battery
Multi-stage protection design and extensive safety certification

Flexibility

Extendable during lifetime
Support 3-8 modules per unit, max. 4 units in parallel, 9–100 kWh capacity range

Easy Installation

Compact and light, single-person installation
Plug and play, no cables are needed between battery modules

Weight	33 kg
Battery Type	LiFePO4 Prismatic Cell
Battery Size	3.2 kWh
Max. charging/discharging current: continuous	30 A
weight	33kg
dimensions	625 x 130 x 330 mm
Type	Battery
Subtype	Sungrow
Warranty	10 year(s)
