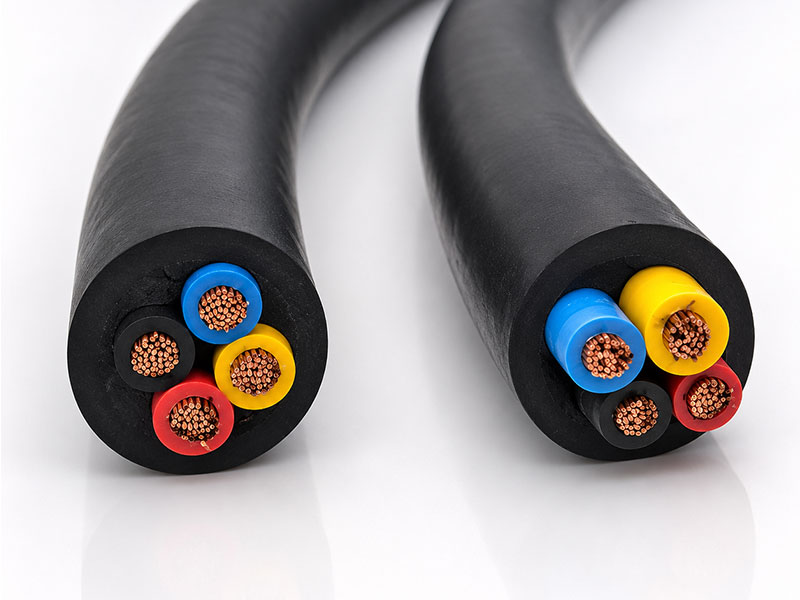

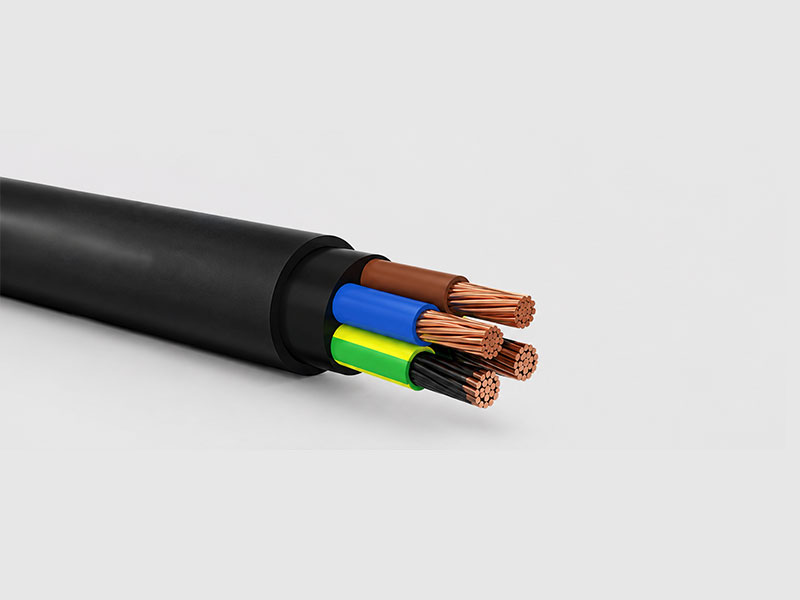

HO7RN-F 95mm² 4 Core Rubber Insulated Trailing Cable

FAQ

HO7RN-F 95mm² 4 Core Heavy Duty Rubber Insulated Trailing Cable

The HO7RN-F 95mm² 4 Core Rubber Insulated Trailing Cable is a heavy-duty flexible power cable designed for demanding industrial, renewable energy and power distribution applications. Featuring high-conductivity annealed copper conductors, EPR rubber insulation and a durable polychloroprene outer sheath, this cable delivers excellent flexibility and mechanical protection in challenging operating environments.

Engineered for applications where movement, vibration, and harsh environmental conditions are present, the HO7RN-F range is widely used for power distribution, generators, battery energy storage systems, solar installations, inverters, mobile equipment and industrial machinery.

Key Features

95mm² conductor size
4 core configuration
Flexible Class 5 copper conductors
EPR rubber-insulated cores
Polychloroprene rubber outer sheath
Suitable for indoor and outdoor use
Water-resistant construction
Oil-resistant sheath
Abrasion-resistant design
Excellent flexibility for installation and routing

Designed for Harsh Operating Conditions

The HO7RN-F cable range is specifically designed for environments where durability and flexibility are essential. The rubber insulation and sheath provide excellent resistance to moisture, oils, mechanical stress, and environmental exposure, making the cable suitable for demanding electrical installations.

Ideal for Solar and Battery Storage Systems

This 95mm² 4-core cable is commonly used in commercial solar installations, battery energy storage systems, large inverter installations, generator systems, and industrial power distribution networks where high-current cable solutions are required.

Applications

Commercial solar installations
Battery energy storage systems
Industrial power distribution
Generator installations
Mining and processing facilities
Mobile equipment power supplies
Renewable energy systems
Manufacturing facilities
Temporary power installations
Infrastructure projects

Technical Specifications

Cable Type: HO7RN-F
Conductor Size: 95mm²
Number of Cores: 4 Core
Voltage Rating: 450/750V
Test Voltage: 1000V
Conductor Material: High Conductivity Annealed Copper
Flexibility Class: Class 5
Insulation Material: EPR Rubber
Sheath Material: Polychloroprene Rubber
Sheath Colour: Black
Core Colours: Brown, Black, Grey, Green/Yellow
Outer Diameter: Approximately 55mm
Maximum Conductor Resistance at 20°C: 0.206 Ohm/km
Cable Weight: Approximately 5590kg/km
Current Rating: Up to 250A
Temperature Range: -25°C to +60°C
Minimum Bending Radius: 4 x Cable Diameter

Benefits of HO7RN-F Cable

Exceptional flexibility for easier installation
Durable rubber insulation system
Suitable for fixed and movable applications
Excellent resistance to mechanical wear
Reliable performance in demanding environments
Supports high-current power applications
Long service life when correctly installed

Why Buy From Enerlux?

Enerlux supplies quality electrical cables, solar equipment, battery storage solutions and power distribution products for residential, commercial and industrial projects. We offer technical support, competitive pricing and nationwide delivery across South Africa.

Brand:	Generic
Model:	HO7RN-F 95mm² 4 Core
Condition:	New
Product Type:	Rubber Insulated Trailing Cable
Cable Type:	HO7RN-F
Conductor Size:	95mm²
Number of Cores:	4
Conductor Material:	Annealed Copper
Conductor Class:	Class 5 Flexible
Voltage Rating:	450/750V
Test Voltage:	1000V
Insulation Material:	EPR Rubber
Sheath Material:	Polychloroprene Rubber
Sheath Colour:	Black
Outer Diameter:	55mm
Current Rating:	250A
Temperature Range:	-25°C to +60°C
Application:	Generator Installations

Reviews

There are no reviews yet.

Be the first to review “HO7RN-F 95mm² 4 Core Rubber Insulated Trailing Cable”

You must be logged in to post a review.

Delivery Information

Enerlux manages deliveries through a combination of our own private delivery drivers and trusted national logistics partners, including companies such as The Courier Guy. The delivery method is selected based on the size, weight, and scope of the order, as well as the delivery location. All deliveries are initiated once an order has been placed, payment has been confirmed, and the order has been processed. Orders are carefully prepared, packaged, and scheduled to ensure safe handling of all electrical, solar, and energy equipment.

Delivery timelines typically range between 1 to 5 business days, depending on:

The size and complexity of the order
The selected courier or delivery method
Courier schedules and regional routing
The delivery destination

For larger, bulk, or specialised equipment orders, Enerlux may allocate dedicated delivery vehicles or adjusted logistics schedules to ensure safe transport.

Customers will be notified once dispatch has taken place, and tracking details will be provided where applicable.

Please note: Delivery timelines are estimates and may be affected by courier availability, public holidays, or unforeseen logistical delays.

Frequently Asked Questions

What is HO7RN-F cable used for?

HO7RN-F cable is used for heavy-duty power applications including solar systems, battery storage, generators, industrial equipment and mobile machinery.

What does 4 core mean?

4 core indicates that the cable contains four insulated conductors within a single outer sheath.

What conductor size is this cable?

This cable uses 95mm² copper conductors.

Is this cable flexible?

Yes, it uses Class 5 flexible copper conductors designed for applications requiring flexibility.

Can this cable be used outdoors?

Yes, the rubber sheath is designed for outdoor environments and offers good resistance to weather and moisture.

Is the cable suitable for solar installations?

Yes, it is commonly used in commercial solar and battery storage installations where flexible high-current cabling is required.

What is the current rating of this cable?

The published rating for the 95mm² 4 core version is up to 250A, subject to installation conditions.

Is the cable resistant to oil and abrasion?

Yes, the polychloroprene sheath provides resistance to oil, abrasion and mechanical wear.

Can this cable be used for generators?

Yes, HO7RN-F cables are commonly used for generator and temporary power applications.

What voltage is the cable rated for?

The cable carries a voltage rating of 450/750V.

Can it be used in battery energy storage systems?

Yes, it is frequently used in battery and inverter installations where flexible high-current cabling is required.

What is the sheath material?

The cable uses a durable polychloroprene rubber outer sheath.

What is the operating temperature range?

The cable is rated for operation between -25°C and +60°C.

Can this cable be supplied in cut lengths?

Yes, cut lengths are generally available depending on stock availability and project requirements.

Is professional installation recommended?

Yes, all high-current electrical cabling should be installed by a qualified electrician.
