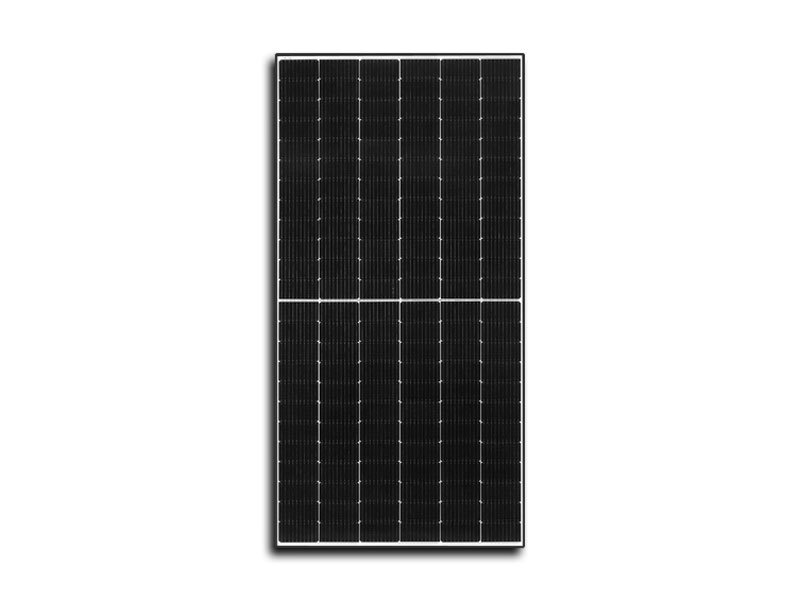

Jinko 555Watt N-Type Monocrystalline solar panel

Description

Additional information

Reviews (0)

Shipping & delivery

Jinko 555Watt N-Type Monocrystalline solar panel

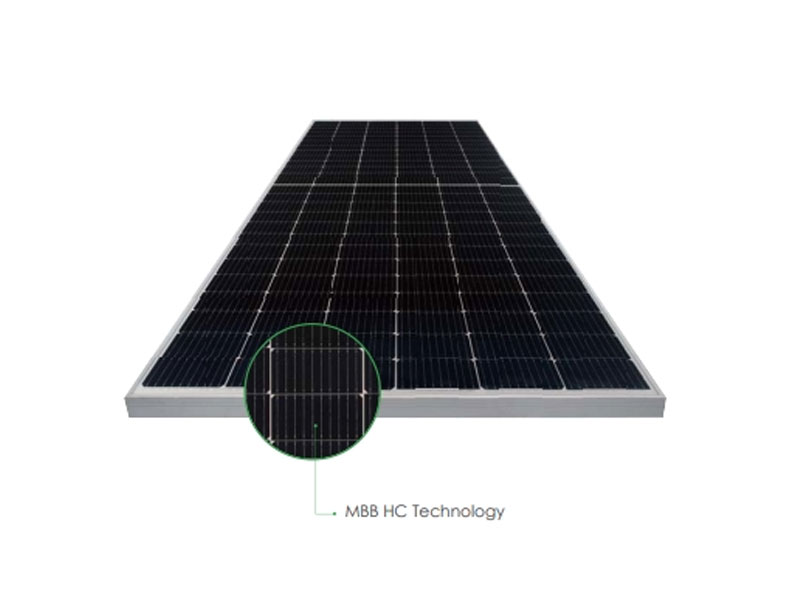

SMBB Technology

Better light trapping and current collection to improve module power output and reliability.

PID Resistance

Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.

Durability Against Extreme Environmental Conditions

High salt mist and ammonia resistance

Hot 2.0 Technology

The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.

Enhanced Mechanical Load

Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

LINEAR PERFORMANCE WARRANTY

12-Year Product Warranty
30-Year Linear Power Warranty
0.40% Annual Degradation Over 30 years

Why consider using a module with n-type cells

N-type monocrystalline cells are composed of monocrystalline and amorphous silicon layers. Amorphous silicon layers in the cells prevent recombinations of electrons, minimizing power loss.

In short, higher efficiency = lower Levelized cost of energy (LCOE) in R/kWh. In the end, higher efficiency modules mean more power per square foot. More power means fewer modules. Fewer modules mean less space, lower BOS cost, and less labor. These reduced costs drive the overall price of the solar electricity generated down.

Cell Type	N type Mono-crystalline
No. of cells	144 (6×24)
Dimensions	2278×1134×35mm (89.69×44.65×1.38 inch)
Weight	28 kg (61.73 lbs)
Front Glass	3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68 Rated
Output Cables	TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length
Maximum Power (Pmax)	555Wp
Maximum Power Voltage (Vmp)	41.64V
Maximum Power Current (Imp)	13.33A
Open-circuit Voltage (Voc)	50.34V
Short-circuit Current (Isc)	14.07A
Module Efficiency STC (%)	21.48%
Operating Temperature(℃)	1000/1500VDC (IEC)
Maximum series fuse rating	25A
Power tolerance	0~+3%
Temperature coefficients of Pmax	-0.30%/℃
Temperature coefficients of Voc	-0.25%/℃
Temperature coefficients of Isc	0.046%/℃
Nominal operating cell temperature (NOCT)	45±2℃
Module Type	JKM555N-72HL4 JKM555N-72HL4-V
